Product Details:
|
| Machnie Type: | PET Bottle Washing Line | Power: | Depend On Model |
|---|---|---|---|
| Core Components: | PLC, Bearing, Motor | Equipment List: | Dewatering Machine, Floating Washing Tank, Hot Air Dryer,... |
| Valtage: | 380v/Custom | Key Selling: | Easy To Operate |
| Label Remove Effective:: | More Than 98% | Dewatering Machine Spinning Speed: | 1500RPM |
| PVC Content: | LESS THAN 100 PPM | Moisture Content: | 1.5% |
| High Light: | Polyester Staple Plastic Recycling Machine,1500RPM Plastic Recycling Machine,190KW PET Bottle Recycling Line |
||

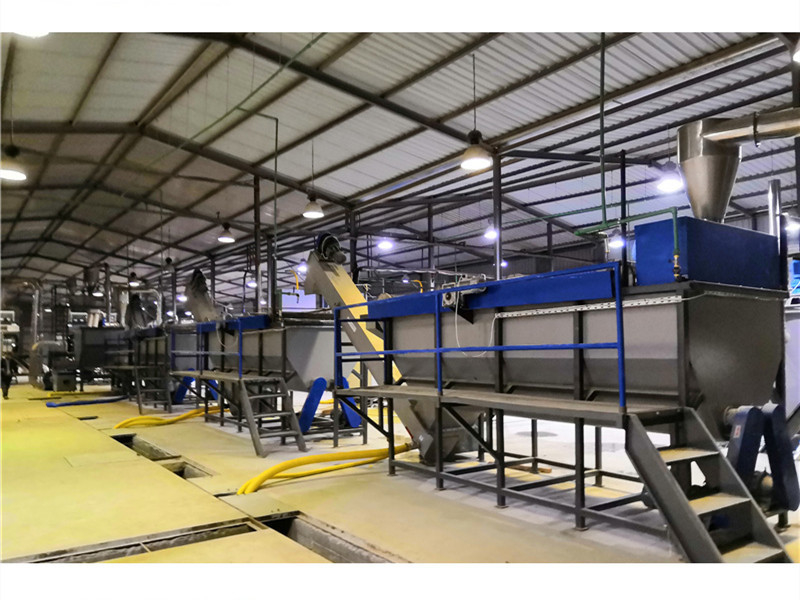

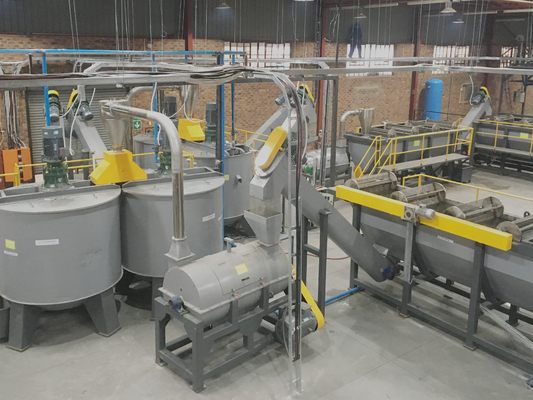

Waste Plastic PET Bottle Washing Recycling machine:
|
Model
|
Capacity
|
Installed Power
|
Steam Use
|
Water Supply
|
Manpower
|
Area Required
|
|
HH-500
|
500 kg/hr
|
190KW
|
Optional
|
4-5 m3/hr
|
4-6 Person
|
60*5*5 m
|
|
HH-1000
|
1000 kg/hr
|
260 KW
|
Optional
|
6-8 m3/hr
|
8-10 Person
|
80*8*5 m
|
|
HH-2000
|
2000 kg/hr
|
400 KW
|
Suggest Use
|
10-15 m3/hr
|
10-12 Person
|
80*8*5 m
|
|
HH-3000
|
3000 kg/hr
|
600 KW
|
80,000 Kcal
|
20-30 m3/hr
|
12-16 Person
|
100*8*10 m
|
|
HH-4000
|
4000 kg/hr
|
800 KW
|
100,000 Kcal
|
30-40 m3/hr
|
15-20 Person
|
135*10*10 m
|
|
HH-5000
|
5000 kg/hr
|
1000 KW
|
120,000 Kcal
|
40-50 m3/hr
|
15-20 Person
|
135*10*10 m
|
| Bale Opener machine(Optional Choose) | Trommel Machine (Optional Choose) |
Label Remover Machine |
| it use to remove the labels from the bottle and separate label out
Rotary Blade made by GERMANY import alloyed steel making for long time using,
The barrel designed with doors opening on it very easy to opening and maintenance
Bottom design with holes to drain out liquid which contained in the bottles
|

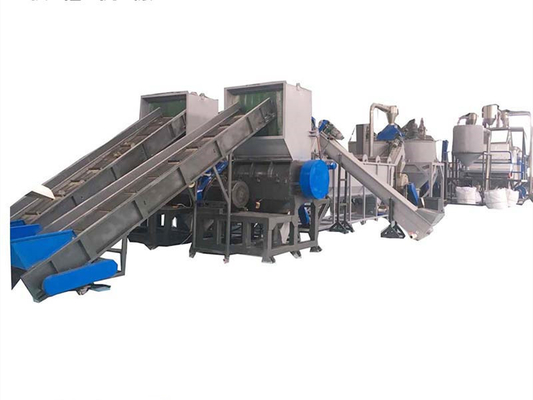

| crusher machine |
| crushing the bottles to PET flakes,water pre-washing the dirty flakes ,cooling the blade
by 0.75kw motor open the chamber,it is easy for worker change the blade
Use D2 blade for higher HRC,long time using (25-30 times grinder than other material),
we also can use DC-53 mateial,but the cost more higher
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use
|

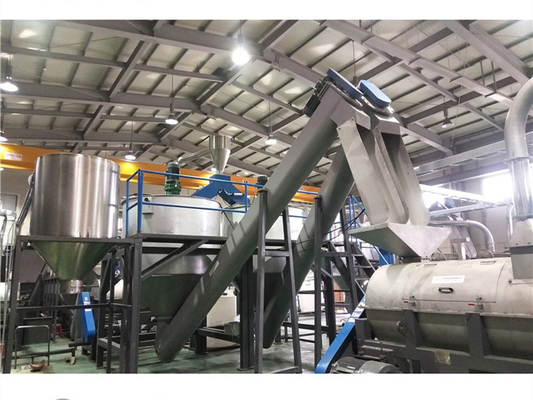

| hot washing tank |
| with hot water washing to remove oil/glue and other dirty from the flakes.
The tank made with insulation layer to save energy.
Feeding caustic soda/detergent to washing Its better Heating by steam
|

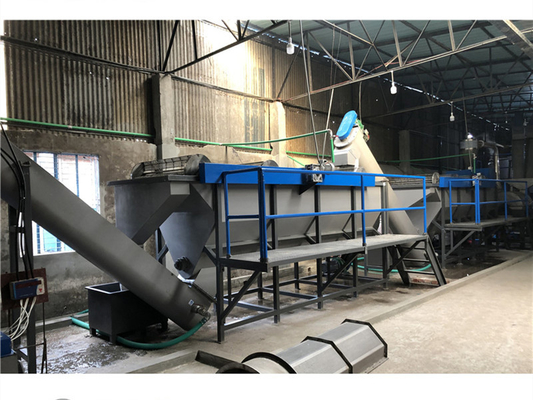

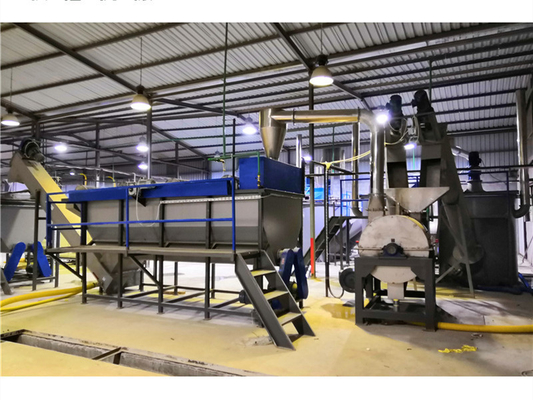

Floating washing tank |
Horizontal dewatering machine |
| Washing the flakes, with the top rollers automatic take out the caps/rings and other impurities,flakes sinking down and take out by screw | Friction washing the material and its running with high speed can remove the dirty, dust, sand out with the dirty water |
|
Zig-zag air classifier |
PET flakes color sorter machine |
