Rockwool Insulation Fixing Pins Galvanized Steel Perforated Base

Rockwool Insulation Fixing Pins Galvanized Steel Perforated Base
Rockwool Insulation Fixing Pins Galvanized Steel Perforated Base
Rockwool Insulation Fixing Pins Galvanized Steel Perforated Base Rockwool Insulation Fixing Pins Galvanized Steel Perforated Base Rockwool Insulation Fixing Pins Galvanized Steel Perforated Base Rockwool Insulation Fixing Pins Galvanized Steel Perforated Base Rockwool Insulation Fixing Pins Galvanized Steel Perforated Base

Large Image :  Rockwool Insulation Fixing Pins Galvanized Steel Perforated Base

Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO
Model Number: PERFORATED BASE PIN
Payment & Shipping Terms:
Minimum Order Quantity: 10000
Packaging Details: 500 pcs perforated base insulation fixing pins per carton.
Delivery Time: 8 work days
Payment Terms: L/C, T/T
Supply Ability: 380000 pcs per month

Rockwool Insulation Fixing Pins Galvanized Steel Perforated Base

Description
Name: Perforated Base Insulation Fixing Pins Base Size: 40 Mm X 40mm , 50mm X 50mm
Pin Diameter: 12ga In Common Pin Length: 15mm-280mm
Material: Galvanized Steel, Stainless Steel Finish: Zinc Plated
Type: Wall Anchor Standard: According To Customer
Capacity: According To Size Application: HVAC System,Fixing Ceramic Fiber
High Light:

rockwool insulation fixing pins

,

galvanized steel insulation fixing pins

,

perforated base insulation fixing pins



Rock Wool Galvanized Steel Perforated Base Insulation Fixing Pins



Quick details of the perforated base insulation fixing pins



  • pin diameter: 12 ga ( 2.67 mm ) in standard,  2.5mm , 3 mm and 3.4mm in common.
  • pin material: annealing steel wire in standard, aluminum wire and stainless steel wire are available.
  • base size: 2" in standard, 40 mm  and 25mm are available.
  • base material: hardness mild steel and hardness stainless steel sheet.
  • finished: zinc coated or copper coated for mild steel pin, polished for stainless steel pin.



Specification details of perforated base insulation anchors

base type pin diameter pin length material
25 x 25 1.8mm 38mm

for the pin:

annealing mild steel wire

annealing stainless steel wire

aluminum wire



for the base

hardness galvanized steel

hardness stainless steel

  1.8mm 64mm
40 x 40 2.5mm 15mm
  2.5mm 25mm
  2.5mm 38mm
  2.5mm 45mm
50 x 50 2.7mm / 3mm 38mm
  2.7mm / 3mm 50mm
  2.7mm / 3mm 63mm
  2.7mm / 3mm 84mm
  2.7mm / 3mm 114mm
  2.7mm / 3mm 130mm
  2.7mm / 3mm 160mm
  2.7mm / 3mm 180mm
  2.7mm / 3mm 203mm
  2.7mm / 3mm 230mm


FAQ of pereforated base insulation fixing pins



1. Why choose aluminum material wire to make the pins?

aluminum wire is soft, easily for bending. 2.7mm or 3mm pin diameter have enough strength to support the insulation material

2. why choose the galvanized steel plate or stainless steel plate for making the base?

0.4mm thickness steel or stainless steel plate is enough hardness to avoid deformed. Riveting firmly, nails will not fall off.

3. how to rustproof?

zinc coated or copper plating is rustproof treatment. the best material is stainless steel, but the cost is high.

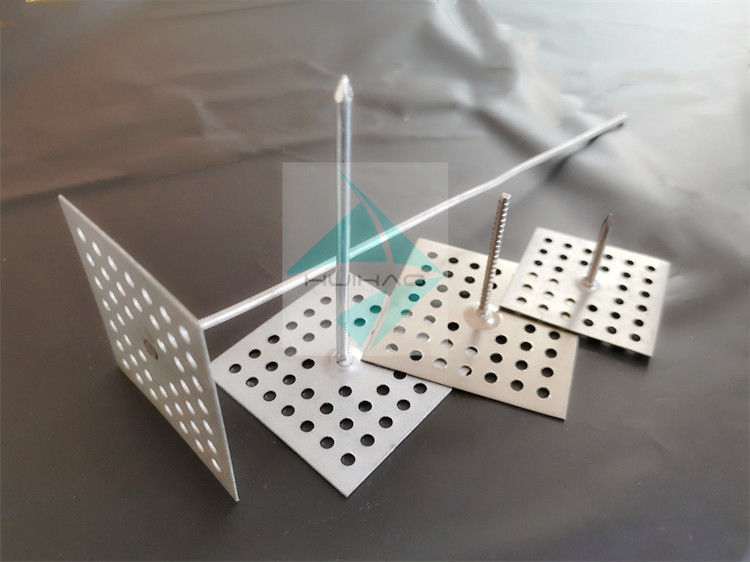

Image details of perforated base insulation fixing pins



Rockwool Insulation Fixing Pins Galvanized Steel Perforated Base 0



Installation parts- self locking washer and dome caps



Part No. diameter
washer-15 15mm
washer-25 25mm
washer-30 30mm
washer-32 32mm
washer-38 38mm
washer-50 50mm
washer-64 64mm
dome-22 22mm
dome-30 30mm
dome-40 40mm



Material for self locking washer and dome caps



1. hardness mild steel ( zinc coated finished)

2. hardness stainless steel ( polished finished)

3. aluminum alloy ( spraying coated surface treatment)



Rockwool Insulation Fixing Pins Galvanized Steel Perforated Base 1
