Product Details:
|
| Material: | Stainless Steel ,aluminum ,galvanized | Base Size: | 25x25mm 30mmx30mm 40mmx40mm 45mmx45mm ,50mmx50mm |
|---|---|---|---|
| Pin Diameter: | 2.7mm 3mm | Pin Length: | 20mm-150mm |
| Washer Tyle: | Round Washer ,Square Washer | Usage: | Fixing Rock Wool Layer |
| Sample: | Free | Factory: | Yes |
| High Light: | 2.7mm self adhesive insulation stick pins,rockwool self adhesive insulation stick pins,2.7mm self adhesive insulation hangers |
||

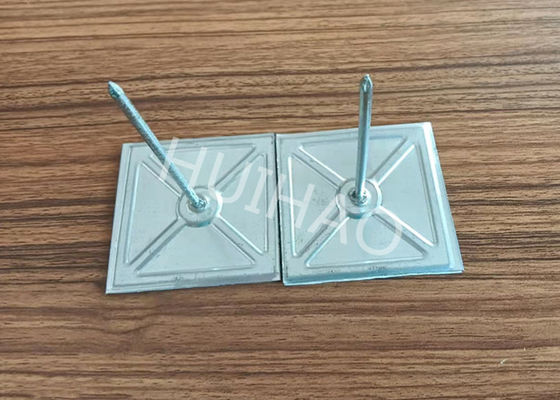

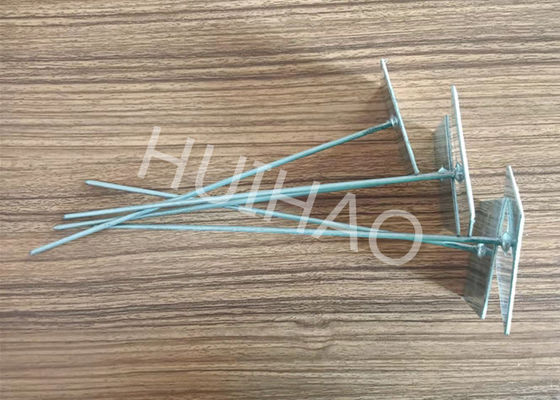

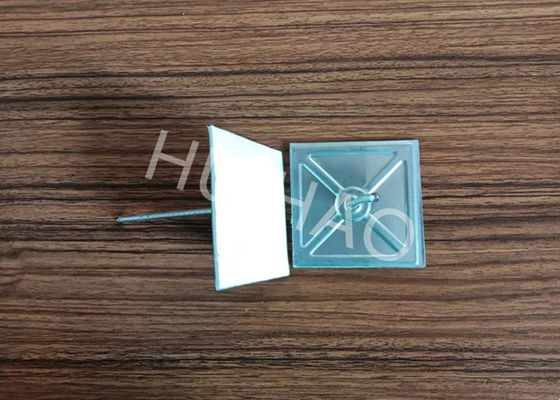

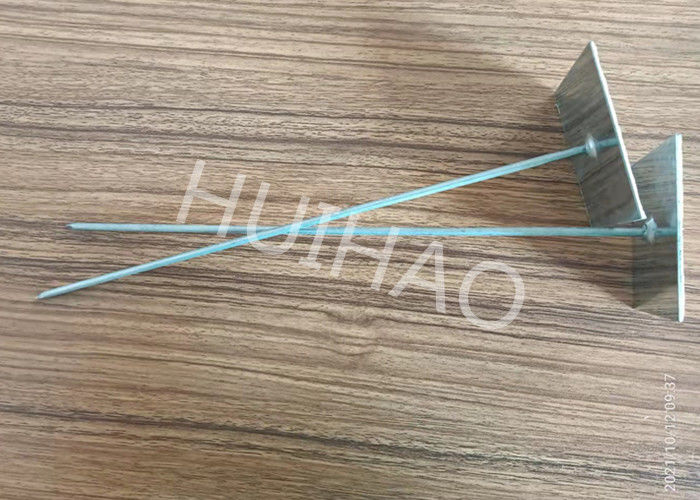

Self sticking insulation hangers pin: self-stick non perforated base pins
Fixing parts including: self locking washer, dome caps washers
Material: mild steel, stainless steel, aluminum
Rock wool insulation Pins length in common: 38mm-250mm (1-1/2"-10")
Surface treatment: zinc coated, copper plating
Rock wool insulation pins Features: Simple construction, high efficiency, save manpower;
Easy weld to fasten the insulation;Sharp pins easily go through
|
Self sticking insulation hangers pin |
||
| pin diameter | tape base | pin length |
| 12 ga (.106)/ 3mm | 50mm Square | 1 |
| 12 ga (.106)/ 3mm | 50mmSquare | 1-5/8 |
| 12 ga (.106)/ 3mm | 50mm Square | 2-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 3-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 4-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 5-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 6-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 8" |
| 12 ga (.106)/ 3mm | 50mm Square | 8-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 9-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 10-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 12" |
1.Work surfaces should be clean and dry ,free of dust ,grease ,oil and any other loose matter
2.Remove the protective release paper taking care not to touch the adhesive
3. place the hanger in the required position and the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength of
adherence is achieved after 24 hours
Insulation Fixing Pins is with high penetration strength with all types of thermal insulation boards, suitable
for brick and conrete walls.
|
· Removable and Reusable · Simple and Quick Installation · Long Lasting and Durable · No Tools Required · Weatherproof, Chemical Resistant, UV Resistant · No Equipment Downtime · Blocks the Flame Path and Retards Heat Flow |
