Stamped Perforated Base 12ga Metal Insulation Anchors

Stamped Perforated Base 12ga Metal Insulation Anchors
Stamped Perforated Base 12ga Metal Insulation Anchors
Stamped Perforated Base 12ga Metal Insulation Anchors Stamped Perforated Base 12ga Metal Insulation Anchors Stamped Perforated Base 12ga Metal Insulation Anchors Stamped Perforated Base 12ga Metal Insulation Anchors Stamped Perforated Base 12ga Metal Insulation Anchors

Large Image :  Stamped Perforated Base 12ga Metal Insulation Anchors

Product Details:
Place of Origin: China
Brand Name: HUIHAOCUSTOM
Certification: ISO
Model Number: PERFORATED BASE PIN
Payment & Shipping Terms:
Minimum Order Quantity: 10000
Packaging Details: 500 pcs perforated base insulation anchors per carton.
Delivery Time: 8 work days
Payment Terms: L/C, T/T
Supply Ability: 380000 pcs per month

Stamped Perforated Base 12ga Metal Insulation Anchors

Description
Name: Perforated Base Insulation Anchors Base Size: 40 Mm X 40mm , 50mm X 50mm
Pin Diameter: 12ga In Common Pin Length: 15mm-280mm
Material: Galvanized Steel, Stainless Steel Finish: Zinc Plated
Port: Tianjin Factory Name: Anping Huihao
High Light:

12ga metal insulation anchors

,

stamped perforated base metal insulation anchors

,

odm metal insulation anchors



Stamped Metal Insulation Fasteners Perforated Base Insulation Anchors



Quick details of the perforated base insulation anchors



  • pin diameter: 12 ga ( 2.67 mm ) in standard,  2.5mm , 3 mm and 3.4mm in common.
  • pin material: annealing steel wire in standard, aluminum wire and stainless steel wire are available.
  • base size: 2" in standard, 40 mm  and 25mm are available.
  • base material: hardness mild steel and hardness stainless steel sheet.
  • finished: zinc coated or copper coated for mild steel pin, polished for stainless steel pin.



Specification details of perforated base insulation anchors

base type pin diameter pin length material
25 x 25 1.8mm 38mm

for the pin:

annealing mild steel wire

annealing stainless steel wire

aluminum wire



for the base

hardness galvanized steel

hardness stainless steel

  1.8mm 64mm
40 x 40 2.5mm 15mm
  2.5mm 25mm
  2.5mm 38mm
  2.5mm 45mm
50 x 50 2.7mm / 3mm 38mm
  2.7mm / 3mm 50mm
  2.7mm / 3mm 63mm
  2.7mm / 3mm 84mm
  2.7mm / 3mm 114mm
  2.7mm / 3mm 130mm
  2.7mm / 3mm 160mm
  2.7mm / 3mm 180mm
  2.7mm / 3mm 203mm
  2.7mm / 3mm 230mm


features of pereforated base insulation anchors



  • Can be used to retain any type of insulation (pierced by the pin)
  • Pins available for different fixing methods: self adhesive (pressure-sensitive adhesive), or using suitable adhesive
  • One type of pin can be used to hang multiple types of insulation
  • Simple and easy to apply
  • Low-cost assembly
  • Reduced inventory needs
  • Available in stainless steel, galvanised steel, aluminium

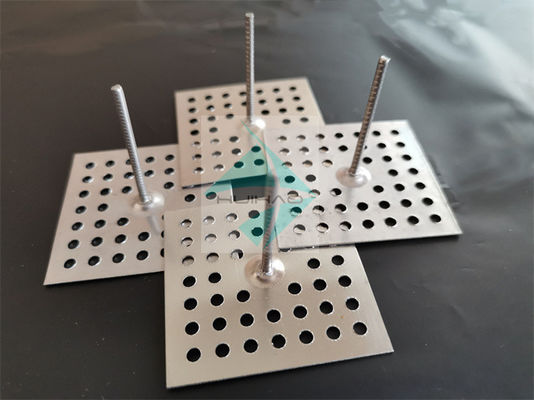

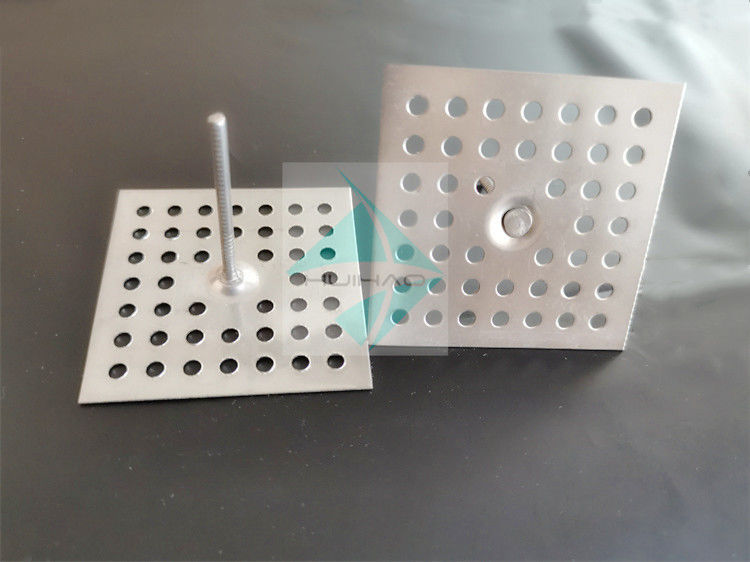

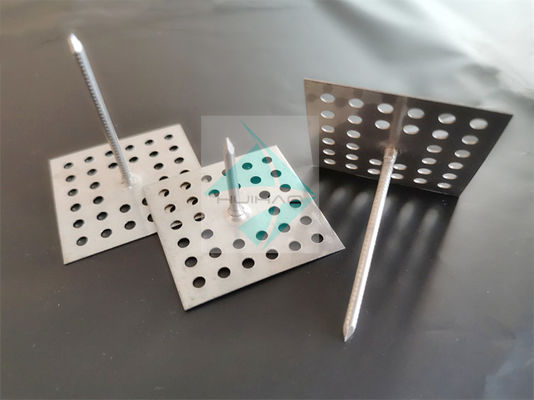

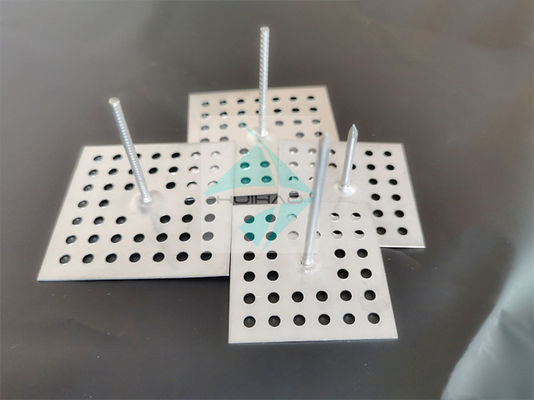

Image details of perforated base insulation anchors



Stamped Perforated Base 12ga Metal Insulation Anchors 0



Installation parts- self locking washer and dome caps

Stamped Perforated Base 12ga Metal Insulation Anchors 1



Huihao company



Stamped Perforated Base 12ga Metal Insulation Anchors 2

Stamped Perforated Base 12ga Metal Insulation Anchors 3
