Product Details:
|
| Name: | Solar Panel Birds Aluminum Fasteners | Material: | Aluminum Alloy |
|---|---|---|---|
| Parts Name: | J Hook And Speed Clips | Factory: | Yes |
| J Nail Size: | 2.4mmx95mm | Washer Size: | 40mm |
| High Light: | 29mmx32mm washer solar mesh clips,odm solar mesh clips,odm solar panel exclusion clips |
||
Specification: all kinds of specification customers asked can be customized accordingly
QTY needed for installation:The number of clips needed will depend on the solar panel system.
Calculating the necessary number of clips: Use 2 clips for the short side of every exposed edge of a panel and 3 clips for the long side of
every exposed edge of a panel.
specification of the Solar Panel aluminum fasteners-J TYPE NAILS
| type | material | thickness | length | surface treatment |
| J pins | aluminum | 2.4mm | 95mm, 114mm | Phosphating |
| custom | custom | custom | custom |
specification details of the Solar panel aluminum fasteners-self locking washer
| type | material | thickness | size | finished |
| square self locking washer | aluminum alloy | 0.6mm | 40mm | black uv finished |
| round self locking washer | aluminum alloy | 0.6mm | 32mm | black uv finished |
| slot self locking washer | aluminum alloy | 0.6mm | 64mmx30mm | black uv finished |
| custom | custom | custom | custom | no |

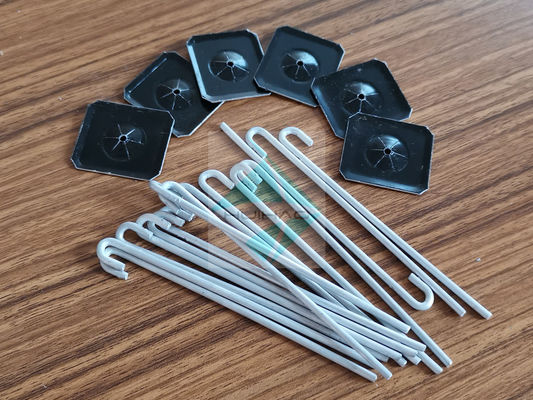

image details of the Solar Panel aluminum fasteners-j nails and self locking washers
application of the Solar Panel aluminum fasteners
Solar panel mesh clips contain self locking washers and J-hooks .They are used to secure wire mesh of solar panels ,which creates a physical
barrier to keep birds out from under the solar arrays.
related products- insulation fasteners
huihao insulation fasteners include CD weld pins, cupped head pins,lacing anchors, quilting pins,perforated base insulation pins, self adhesive
insulation pins, self locking washers, dome cap washers.they are widly used for industry and commerical insulation, such as marine insulation,
duct insulation,equipment insulation,building insulation and so on.
