Pet Bottles Grinding Washing Drying Plastic Recycling Line 5000kgs/H

PET Bottles Grinding Washing Drying Line, Custom Waste Plastic Recycling Line

The whole production equipment is researched, design and manufactured by our company, washing drying line has

features as high efficiency, working stable, large capacity etc. Waste Plastic Pet Bottle Crushing Washing Drying

Recycling Line / Machine / Plant is widely used to treat waste plastic, such as PET/PVC/HDPE bottle, water bottles,

cola bottle and PET plastic scrap broken into flakes.

machine details of PET Bottles Grinding Washing Drying Line, Custom Waste Plastic Recycling Line

photo	name	size details	Functional characteristics

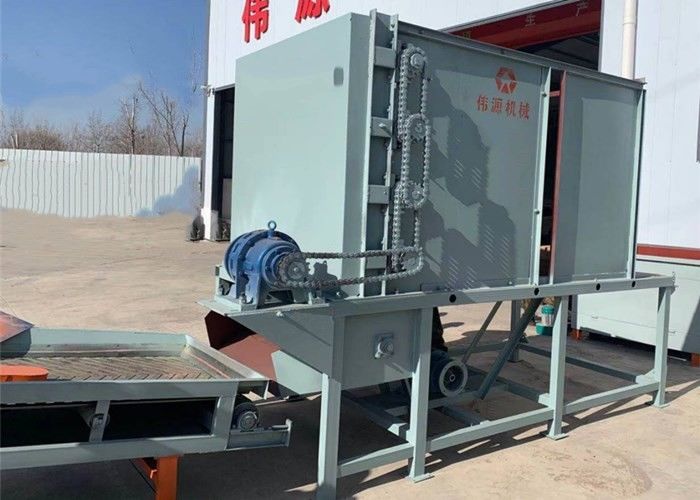

	bale breaker	width 1500mm, length 6000mm, 4pcs shafts	The bottle bricks are disassembled, and the unpacking speed can be adjusted

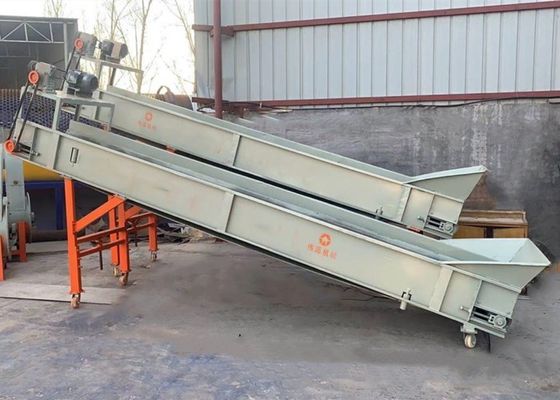

	conveyor machine	1000mmx5000mm	Conveying the disassembled flat bottles to the roller screen

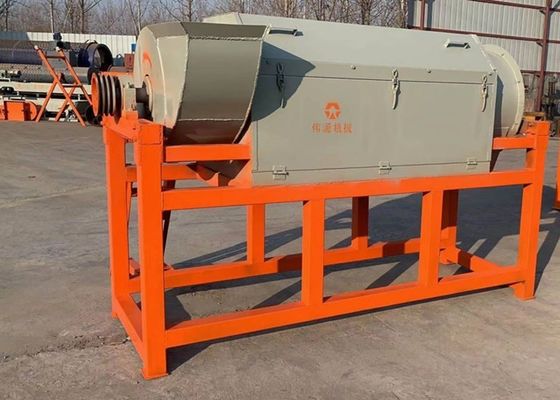

	tommel screen	φ2000x5000mm	Screen bottles to remove impurities

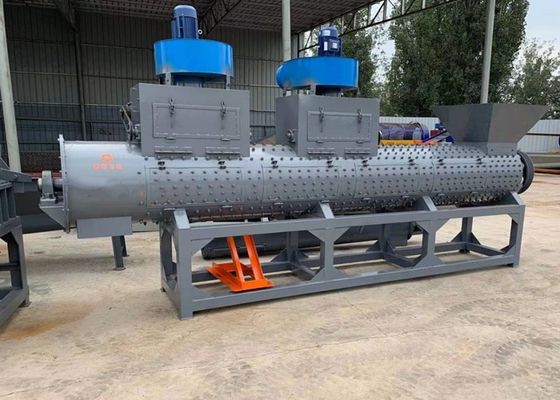

	lable removing machine	Φ 720x5000mm, new alloy sand knives, double bellows and double fans	Remove the trademark from the bottle

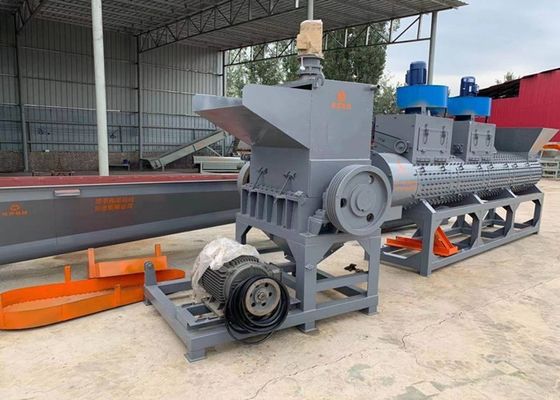

	crusher	The crushing chamber is 1200x700mm with hydraulic cover lifting device	Break the bottle into 12-20mm pieces

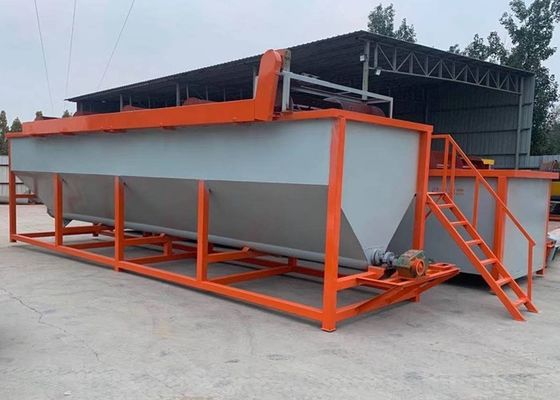

	cleaning tank	It is 6 meters long, 2 meters wide and 1.8 meters deep, with a screw diameter of 0.5 meters and a bottle cap collection device	Float the bottle cap in the sheet material and separate it out
	drying system	Diameter 800*2500mm, full screen, screen material 304 stainless steel	Remove impurities and moisture from bottle slices

Please note:

1. We change the scheme according to the requirements of customers for output and purity.

2. motor brand:siemens beide/wannan.

3. Realize one production line can process different kinds of raw material;

4. Good quality on our machine(SUS-304 stainless steel, more than 4mm thickness)

5. High quality on final product, low humidity content(Less than 1%) and impurities ( Less than 50PPM).

FAQ

(1).Q: Can we send sample for customizing the machine?

A: No problem, you can send us samples, and our engineer will recommend and customize the machine according to your

product and other demand.

(2).Q: If we have problem on machine or production, can you help us?

A: Yes, no problem. We offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We

offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year

guarantee period. If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem.

Our engineers can go to your factory and help you solve the problem. We provide longlife service for the machine.
