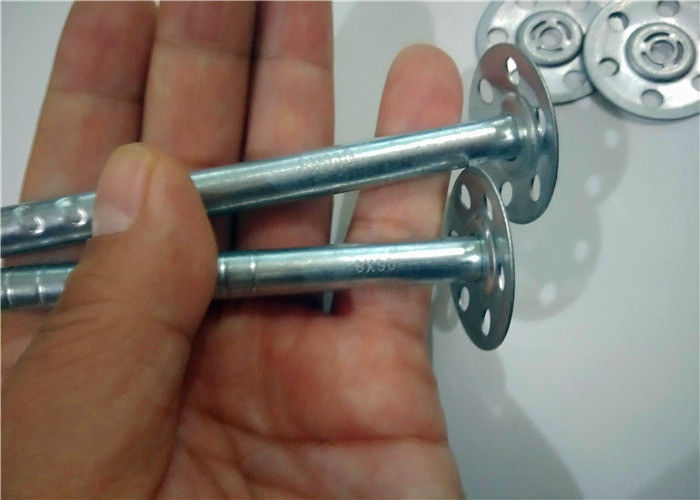

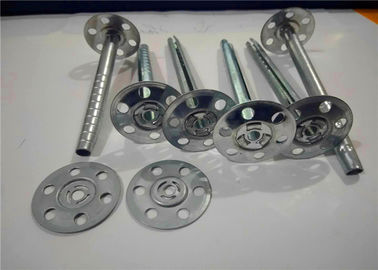

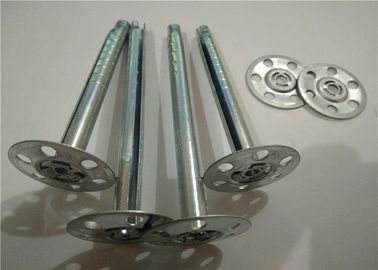

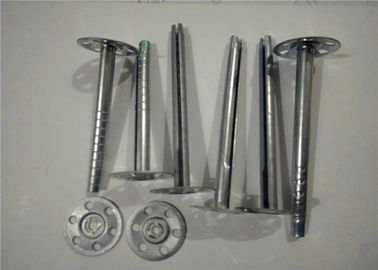

M8 X 110Mm Metal Insulation Fixings With Round Washer

M8 X 110Mm Metal Insulation Fixings With Round Washer
M8 X 110Mm Metal Insulation Fixings With Round Washer M8 X 110Mm Metal Insulation Fixings With Round Washer M8 X 110Mm Metal Insulation Fixings With Round Washer M8 X 110Mm Metal Insulation Fixings With Round Washer M8 X 110Mm Metal Insulation Fixings With Round Washer M8 X 110Mm Metal Insulation Fixings With Round Washer

Large Image :  M8 X 110Mm Metal Insulation Fixings With Round Washer

Product Details:
Place of Origin: CHINA
Brand Name: HUIHAO
Certification: ISO9001
Model Number: Rock wool metal plug
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: 20 piece ,50piece ,200 piece in one carton on pallet ,15 days after confirm the order
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union , paypal
Supply Ability: 300000 pcs per month

M8 X 110Mm Metal Insulation Fixings With Round Washer

Description
Product Name: Rock Wool Metal Plug Material: Stainless Steel ,galvanized
Tube OD: 8mm Mateiral Thickness: 0.7mm
Length: 50mm-230mm Base Size: 30mm
Custom: Support
High Light:

m8 metal insulation fixings

,

110mm metal insulation fixings

,

galvanized metal insulation fixings



M8 X110 mm Metal Insulation Fixings ,metal insulation anchor with round washer


Quick details of metal insulation fixings



Material: Stainless steel/galvanized steel
Nail dimater: 8mm
Nail length:50mm/60mm/80mm/90mm /110mm/140mm/ 170mm/230mm/300mm, etc
Plate size :30mm/35mm
Application: It is fixed on the position where there is significant wind-suction-force or if the height is more than
20m or if the finishing coat is tile etc



Specification of metal insulation fixings


Pin Pin Pin Length Plate Size Plate Thickness Packaging(carton)
8*50 8mm 50mm 30/35mm 0.7mm 250pcs
8*60 8mm 60mm 30/35mm 0.7mm 250pcs
8*90 8mm 90mm 30/35mm 0.7mm 250pcs
8*110 8mm 110mm 30/35mm 0.7mm 250pcs
8*140 8mm 140mm 30/35mm 0.7mm 250pcs
8*170 8mm 170mm 30/35mm 0.7mm 250pcs
8*230 8mm 230mm 30/35mm 0.7mm 250pcs
8*300 8mm 300mm 30/35mm 0.7mm 250pcs


advantages of metal insulation fixings

  • Highly versatile in a wide range of construction materials

  • Fix with hammer or SDS drill adapter

  • Fixes into concrete and masonry with tiny pilot hole

  • Fixes directly into lightweight block without pre-drilling

  • Quick and simple hammerset installation saves work

  • No additional screws or nails. Also suitable for ceiling soffits

  • Fire-resistant according to DIN 4102 (class A1)

  • Fire protection report for the galvanised version with anchoring depth hef > 50 mm.



Usage of metal insulation fixings


  • 70mm insulation fasteners for 20-40mm insulation panels
  • 90mm insulation fasteners for 40-60mm insulation boards
  • 110mm insulation anchors for 60-80mm insulation slabs
  • 130mm insulation anchors for 80-100mm insulation slabs
  • 150mm insulation fixings for 100-120mm insulation slabs
  • 180mm insulation fixings for 120-150mm insulation boards

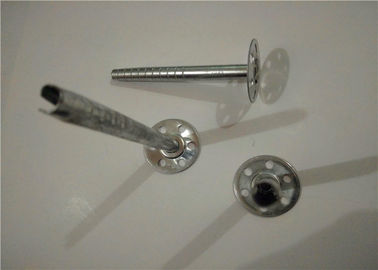

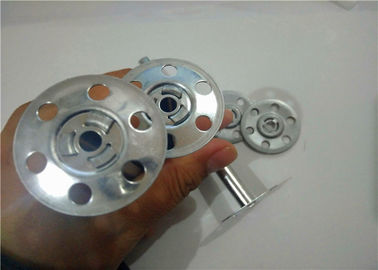

M8 X 110Mm Metal Insulation Fixings With Round Washer 0M8 X 110Mm Metal Insulation Fixings With Round Washer 1



To fix fire-resistant soft or pressure-resistant insulating materials, such as: Mineral / glass wool,Light building boards made of
wood wool Foam glass tiles,Also suitable for: Polystyrene boards,Coir matting,Building materials,Concrete,Hollow blocks made
from lightweight concrete,Vertically perforated brick, Perforated sand-lime brick, Solid sand-lime brick,Natural stone with dense
structure,Aerated concrete,Solid brick made from lightweight concrete,Solid brick
