Product Details:
|
| Material: | Galvanized Steel, Ss, Ms | Head: | 7/8" As Standard |
|---|---|---|---|
| Spindle Dia: | 12ga Or 14ga As Standard | Length: | 2-1/2" Or 4-1/2" As Standard |
| Head Thickness: | 1mm | Application: | Fire Proofing Passive |
| High Light: | duct insulation pins,insulation anchors |
||
Why choose huihao hardware?
1.we could supply metal stamping service,CNC machining service,laser cutting service and welding service.
2. Years of production experience, successful completion of different specifications of products, complete mold.
3. Advanced production equipment and guaranteed product quality.
4. Timely freight arrangement, no delay, and door-to-door freight service
5. Sample service. General specifications are provided free of charge. Customers are required to provide sample fees for
customized products. After the order is completed, it will be deducted from the purchase price.
6.We can provide customized packaging for you.
Specification Of Removable Steam Blanket Fixing Part Insulation Anchor Pins For Protective System
|
type |
head size |
hook length |
head thickness |
pin diameter |
pin length |
|
1 |
22mm |
5mmx11mm |
1mm |
2.2mm, 2.7mm, 3mm |
25mm-140mm |
|
2 |
11mmx24mm |
5mmx11mm |
1mm |
2.2mm,2.7mm,3.0mm |
25mm-140mm |
|
3 |
30mm |
5mmx15mm |
1mm |
2.2mm,2.7mm,3.0mm |
63mm-250mm |
| Materials: stainless steel , galvanized steel and mild steel | |||||
| fixing parts : Self-locking washers , speed clips and dome cap washers. or to be your request. | |||||
|
How to fixing Removable Steam Blanket Fixing Part Insulation Anchor Pins For Protective System 1: prepare the insulation blanket or removable cover |
|||||

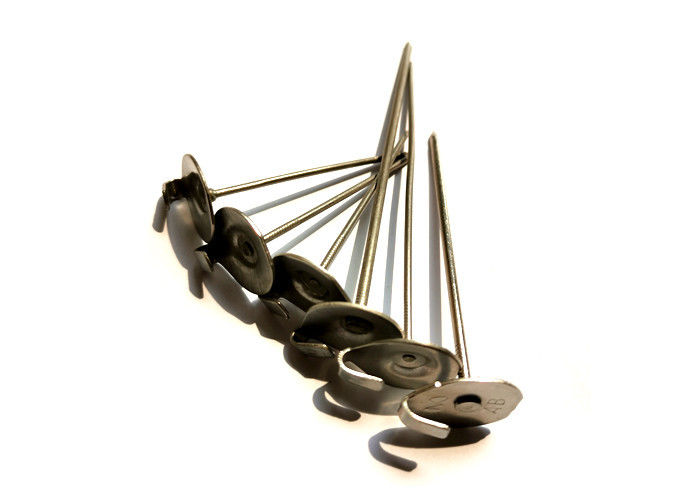

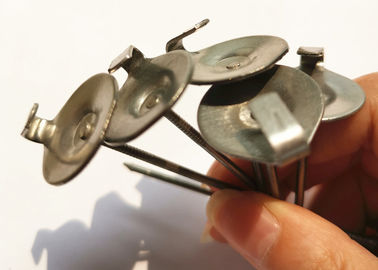

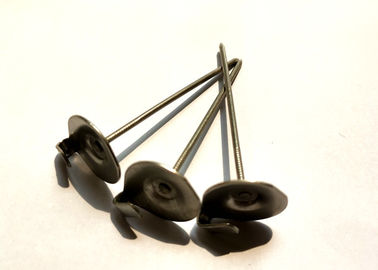

images details of Removable Steam Blanket Fixing Part Insulation Anchor Pins For Protective System
features of Removable Steam Blanket Fixing Part Insulation Anchor Pins For Protective System
1. Sharp nail tip reduces penetration resistance
2. The nail is made of annealed material, which is soft and easy to bend.
3. Fully automated production with small specification error and accurate size
4. The nail seat is firm and does not fall off.
5.Aging resistance Resist ,sudden temperature change, High heat resistance ,Simple construction
applications of Removable Steam Blanket Fixing Part Insulation Anchor Pins For Protective System
| stainless steel material lacing anchors are wildy used for fixing: | |
|
|
realated production- lacing hook washer, And lacing ring
|
lacing hook washer |
lacing ring |
| 25mm x11mm with double holes | round ring or D type ring |
|
|
