Product Details:
|
| Material: | Mild Steel | Head: | 7/8" As Standard |
|---|---|---|---|
| Spindle Dia: | 12ga Or 14ga As Standard | Length: | 2-1/2" Or 4-1/2" As Standard |
| Head Thickness: | 1mm | Application: | Fire Proofing Passive |
| High Light: | rockwool insulation pins,duct insulation pins |
||
Specification Of Fire Proofing Passive Fixing Parts Mild Steel Lacing Anchor With Speed Clips
|
type |
head size |
hook length |
head thickness |
pin diameter |
pin length |
|
1 |
22mm |
5mmx11mm |
1mm |
2.2mm, 2.7mm, 3mm |
25mm-140mm |
|
2 |
11mmx24mm |
5mmx11mm |
1mm |
2.2mm,2.7mm,3.0mm |
25mm-140mm |
|
3 |
30mm |
5mmx15mm |
1mm |
2.2mm,2.7mm,3.0mm |
63mm-250mm |
Materials: stainless steel , galvanized steel and mild steel
fixing parts : Self-locking washers , speed clips and dome cap washers. or to be your request.

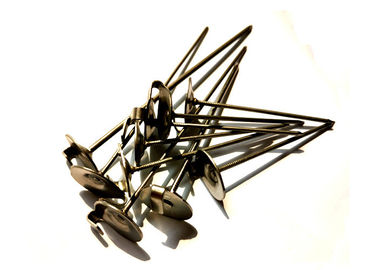

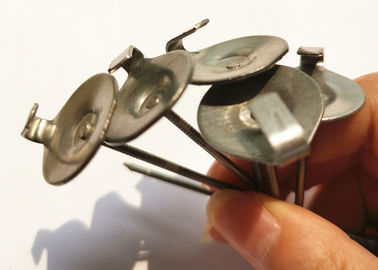

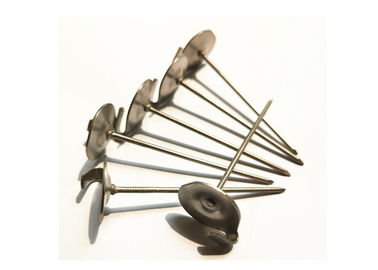

images details of Fire Proofing Passive Fixing Parts Mild Steel Lacing Anchor With Speed Clips
features of Fire Proofing Passive Fixing Parts Mild Steel Lacing Anchor With Speed Clips
1. Sharp nail tip reduces penetration resistance
2. The nail is made of annealed material, which is soft and easy to bend.
3. Fully automated production with small specification error and accurate size
4. The nail seat is firm and does not fall off.
5.Aging resistance Resist ,sudden temperature change, High heat resistance ,Simple construction
How to fixing Fire Proofing Passive Fixing Parts Mild Steel Lacing Anchor With Speed Clips
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5:install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
applications of Fire Proofing Passive Fixing Parts Mild Steel Lacing Anchor With Speed Clips
| stainless steel material lacing anchors are wildy used for fixing: | |
|
|
Removable and reusable thermal insulation system designed according to the physical conformation of the equipment to
be insulated. It is ideal for equipment that requires continuous maintenance as turbines, forced draught burners, turbopumps,
turbo blowers, valves, flanges, feedwater pumps, heat exchangers, reactors, autoclaves, actuators, plastic injectors, vulcanizing
presses, diffusers , distillation columns, boilers, manholes, inspection windows, gas hoses, etc.
realated production- lacing hook washer, And lacing ring
|
lacing hook washer |
lacing ring |
| 25mm x11mm with double holes | round ring or D type ring |
|
|
