Product Details:
|
| Material: | Stainless Steel , Galvanized Steel. Mild Steel | Head: | 7/8" As Standard |
|---|---|---|---|
| Spindle Dia: | 12ga Or 14ga As Standard | Length: | 2-1/2" Or 4-1/2" As Standard |
| Head Thickness: | 1mm | Application: | Removable Insulation Jacket |
| High Light: | duct insulation pins,insulation anchors |
||

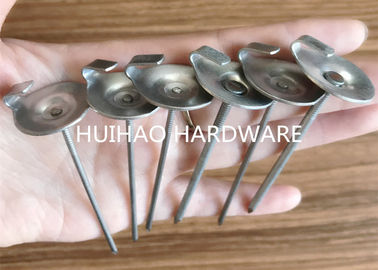

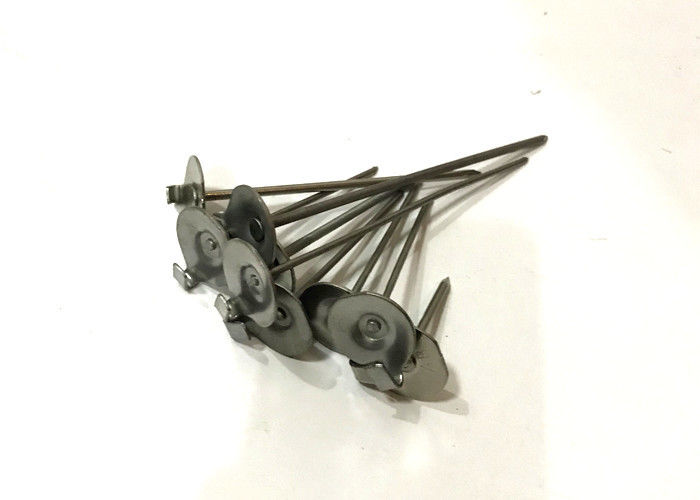

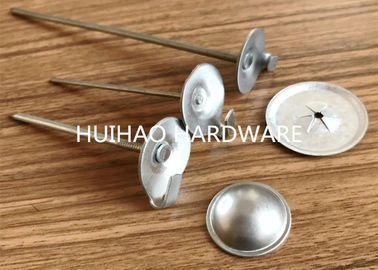

Specification Of Cooling Insulation Covers Lacing Anchors, Removable Insulation Jacket Anchor Pin
| product name | insulation lacing anchors pins |
| head diameter | 22mm, 30mm |
| hook size | 5mmx11mm |
| head material thickness | 1mm |
| pin diameter | 2.2mm, 2.7mm, 3mm |
| pin length | 25.4mm-140mm |
| US Standard of lacing anchor | EU standard of lacing anchors | Australia standard of lacing anchors |
|
The head diameter is 1", |
The head diameter is 30mm, |
People in Australia will need the US standard or EU standard weld pins, someone will need the 14Ga pin. |
types of Cooling Insulation Covers Lacing Anchors, Removable Insulation Jacket Anchor Pin
How to Cooling Insulation Covers Lacing Anchors, Removable Insulation Jacket Anchor Pin
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5:install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
applications of Cooling Insulation Covers Lacing Anchors, Removable Insulation Jacket Anchor Pin
| stainless steel material lacing anchors are wildy used for fixing: | |
|
|
