Product Details:
|
| Material: | Stainless Steel 304 | Head: | 7/8" As Standard |
|---|---|---|---|
| Spindle Dia: | 12ga Or 14ga As Standard | Length: | 2-1/2" Or 4-1/2" As Standard |
| Head Thickness: | 1mm | Application: | Fixing Insulation Blankets, Thermal Covers |
| High Light: | rockwool insulation pins,insulation anchors |
||
Materials: stainless steel 304

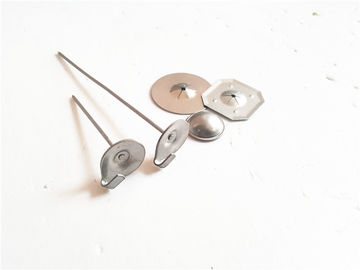

fixing parts Washers: Self-locking washers , speed clips and dome cap washers. they are available in a variety of sizes,
shapes, and materials.
| pin diameter | head diameter | head material thickness | hook length | length of the lacing anchor |
| 14 ga (.080) | 7/8" | 1mm | 11mm | 1"-4-7/8" |
| 12 ga (.106) | 7/8" | 1mm | 11mm | 1"-4-7/8" |
| US Standard | EU standard | Australia standard |
The head diameter is 1", | The head diameter is 30mm, | People in Australia will need the US standard or EU standard weld pins, someone will need the 14Ga pin. |
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
stainless steel material lacing anchors are wildy used for fixing:
