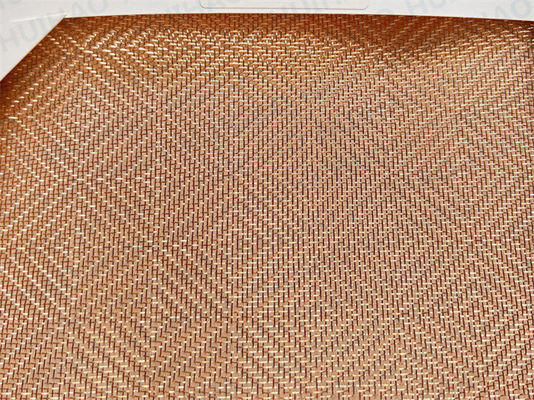

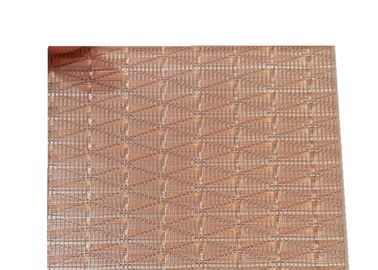

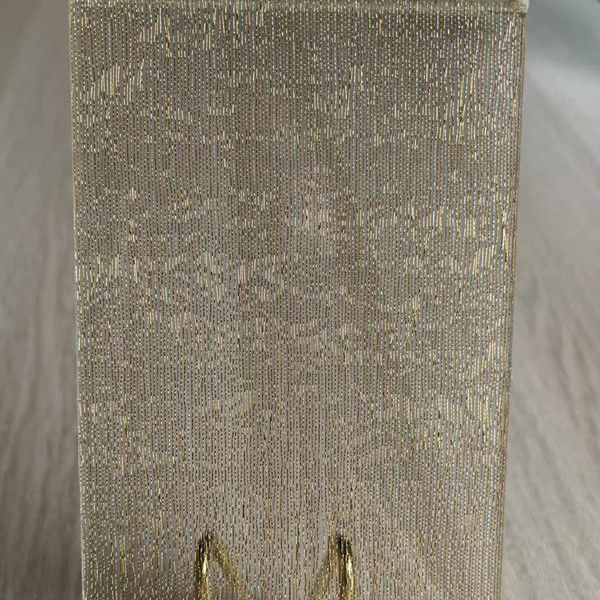

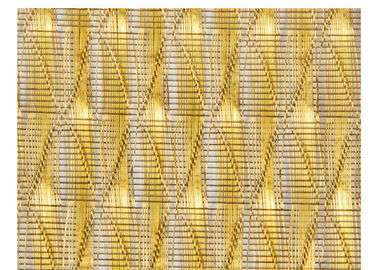

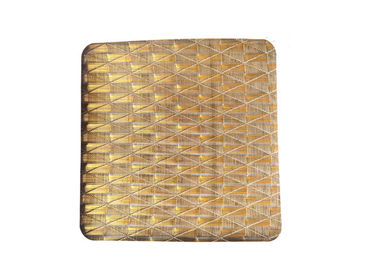

0.28mm Metal Mesh Laminated Glass

1.Laminated glass has additional strength and acoustical control.

2.Often used for safety or security glass and in applications which require sound control.

3.Create special effects not possible with panels.

4.Laminated glass can be used in interior and exterior applications.

material: bronce wire

wire diameter:0.28mm

open area: 40.5%

total thickness:0.8mm

weight: 1.0kgs per square meter

• common laminated glass,
• tempered laminated glass,
• coated laminated glass,
• low-e laminated glass,
• silkscreen laminated glass,
• bulletproof laminated glass,
• fireproof laminated glass, etc.

• 3 + 0.38 + 3 mm,
• 3 + 0.76 + 3 mm,
• 4 + 0.38 + 4 mm,
• 4 + 0.76 + 4 mm,
• 5 + 0.38 + 5 mm,
• 5 + 0.76 + 5 mm,
• 6 + 0.38 + 6 mm,
• 6 + 0.76 + 6 mm,
• 8 + 0.76 + 8 mm,
• 10 + 0.76 + 10 mm, etc.

• 300 × 300 mm,
• 1220 × 1830 mm,
• 1500 × 2000 mm,
• 1530 × 2520 mm,
• 1830 × 2440 mm,
• 2000 × 2500 mm,
• 2140 × 3300 mm,
• 2250 × 3600 mm,
• 2800 × 7000 mm,
• 3000 × 8000 mm,
• also can be customized.

Metal fabric laminated glass generally adopts double-layer glass laminated, i.e. [glass+film+metal mesh+film+glass]. In order to protect the metal mesh from oxidative discoloration, the size of the metal mesh is usually smaller than that of the glass, which can achieve edge sealing effect.
