Product Details:
|
| Name: | Insulating Nail Welding Machine | Voltage: | Single Phase AC110/220V |
|---|---|---|---|
| Rated Duty Cycle: | 32% | Current: | 10-160A |
| Weight: | 18kgs | Size: | 410x245x290mm (LxWxH) |
| High Light: | copper plated insulation pins,cd weld pins |
||
We can be your country standard to custome the power,we accept small order an supply door to door services

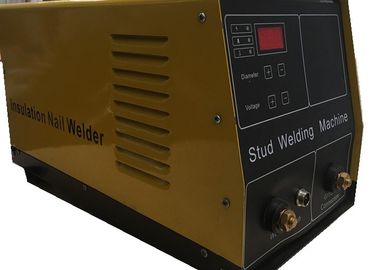

Ship Insulating Nail Welding Machine , Capacitor Discharge Weld-On Pin Welder
The utility model has the advantages of novel design, compact structure, reliable use, stepless regulation of charging voltage,
large regulating range and convenient adjustment of various parameters.
This is the use of capacitor discharge welding machine, fast to insulation nails firmly welded on the work piece.It has to improve production
efficiency Rate, reduce production, reduce the production cost (materials, labor, electricity), welding intensity is high.The characteristics of
deformation and welding position can be convenient, easy to operate, was quick to learn.
The equipment is widely used in shipbuilding, have higher economic benefit.Mainly used for welding of carbon steel,stainless steel bar, without
flux and protection measures, with conform to the requirements of the strong Degree and micro structure
Ship Insulating Nail Welding Machine , Capacitor Discharge Weld-On Pin Welder-technical parameter
| Item | Content |
| Model | Insulation nails welder |
| Welding current output | Capacitor discharge |
| Capacitance specifications(μF) | 66,000 |
| Welding speed (times / min) | 15—20 |
| Operating voltage(V) | 30—198V |
| Input supply voltage(V) | 220 |
| Power frequency(Hz) | 50---60 |
| Welding thickness range(mm) | 0.5—5mm |
| Welding Diameter(mm) | 1.5—3 |
| Dimensions (mm) | 430×350×155 |
| Weight(Kg) | 31 |
| Configuration torch | Sucker torch |
accessories-Ship Insulating Nail Welding Machine , Capacitor Discharge Weld-On Pin Welder
|
Accessories Item
|
Specification
|
Total Quantity
|
|
Anti-spatter Stud gun with cable
|
SRQ4
|
1 Set
|
|
Extended gun cable
|
8M
|
1Pcs
|
|
Earth clamp with earth lead
|
N/A
|
1Pcs
|
|
Crescent Spanner
|
N/A
|
1Pcs
|
|
Enclosed Documents
|
N/A
|
1Set
|
Welding process of Ship Insulating Nail Welding Machine , Capacitor Discharge Weld-On Pin Welder

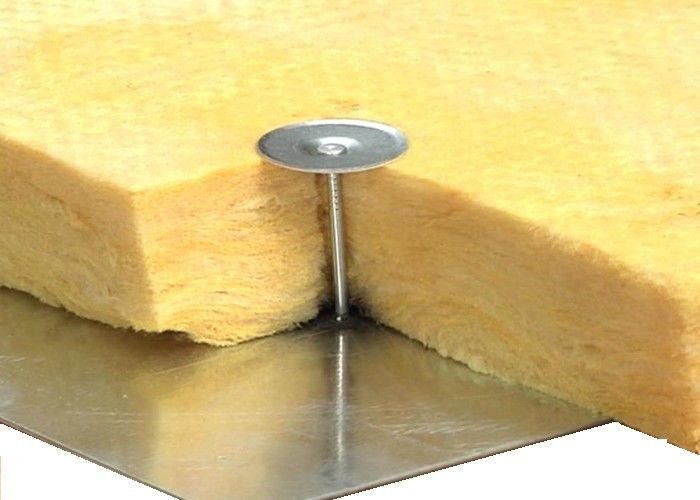

1) the shape of the stud can be various shapes of use value, according to the required length standard straight stud (with screw Lines, with
no thread), the diameter range between M3 and M4, in addition to the threaded fasteners, you can also use the circle The threaded stud, most
of the stud with a flange, extension.stud material low carbon steel materials stud demanding a copper plating surface treatment, facilitate conductive
2) requirements conform to the requirements of the weld ability of work piece, the surface can't have rust and paint,should be properly cleaned,
or dirt will clip in Weld, the effect of weld strength.
