Product Details:
|
| Name: | Capacity Discharge Cup Head Pins Welding Machine | Voltage: | Single Phase AC110/220V |
|---|---|---|---|
| Rated Duty Cycle: | 32% | Current: | 10-160A |
| Weight: | 18kgs | Size: | 410x245x290mm (LxWxH) |
| High Light: | copper plated insulation pins,cd weld pins |
||
We can be your country standard to custome the power,we accept small order an supply door to door services

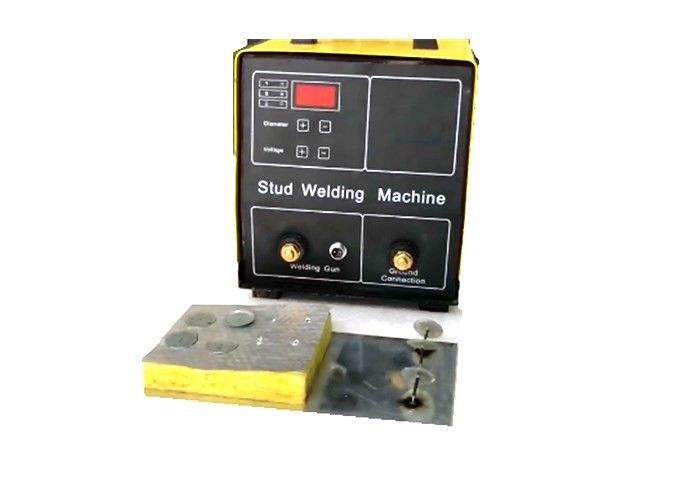

Insulation CD Pin Welder , Dust Pins Welding Machine Used For HVAC System
1. It is widely used for install insulation cotton.
2. No need cleaning when welding nails.
3. It can weld 20 pcs nails per minute,install insulation cotton ann welding nail can be done at the same time,highly improved working efficiency.
4. The welding nail is solid and reliable.
5. It can be weld nails on any shape of air pipe,especially in round pipe.
6. It can worked at any temperature.
7. It can use coiled material which saved cotton material and nails.
8. Safe work.
9. It can be used as repair tools.
technical parameter of Insulation CD Pin Welder , Dust Pins Welding Machine Used For HVAC System
|
Parameter
|
Insulation CD Pin Welder , Dust Pins Welding Machine Used For HVAC System
|
|
|
Model
|
SB-1250
|
|
|
Stud Range
|
Φ1-5mm
|
|
|
Timing Control
|
3s
|
|
|
Duty Cycle (Stud Qty./Stud Dia./Per Minute)
|
20pcs/5mm/min
|
|
|
32pcs/2mm/min
|
||
|
Applied Patent
|
Invention patent CD STUD MACHINE
|
|
|
Allowable Input Voltage Fluctuation
|
±10%
|
|
|
Standard Supply Scope
|
1. Machine (1pc) 2. Stud gun with cable (1pc) 3. Extended gun cable (1pc) 4. Earth clamp with earth lead (1pc) 5. Crescent spanner (1pc)
|
|
|
Max. Length of Extended Welding Cable
|
20M
|
|
|
Max. Length of Extended Earth Lead
|
5M
|
|
|
Protection Class
|
IP21
|
|
|
Machine Weight
|
18KG
|
|
|
Standard Gun (Heavy Duty)
|
SRQ4
|
|

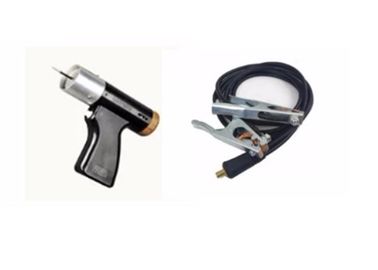

Insulation CD Pin Welder , Dust Pins Welding Machine Used For HVAC System- accessories
|
Accessories Item
|
Specification
|
Total Quantity
|
|
Anti-spatter Stud gun with cable
|
SRQ4
|
1 Set
|
|
Extended gun cable
|
8M
|
1Pcs
|
|
Earth clamp with earth lead
|
N/A
|
1Pcs
|
|
Crescent Spanner
|
N/A
|
1Pcs
|
|
Enclosed Documents
|
N/A
|
1Set
|
