Pet Flake Automatic Waste Plastic Recycling line Cleaning Production Line

Pet Flake Automatic Waste Plastic Recycling line Cleaning Production Line
Pet Flake Automatic Waste Plastic Recycling line Cleaning Production Line Pet Flake Automatic Waste Plastic Recycling line Cleaning Production Line Pet Flake Automatic Waste Plastic Recycling line Cleaning Production Line Pet Flake Automatic Waste Plastic Recycling line Cleaning Production Line Pet Flake Automatic Waste Plastic Recycling line Cleaning Production Line

Large Image :  Pet Flake Automatic Waste Plastic Recycling line Cleaning Production Line

Product Details:
Place of Origin: China
Brand Name: huihao
Certification: ISO9001-2015
Model Number: machine line
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD60000
Packaging Details: CONTAINERS
Delivery Time: 7 WORK DAYS
Payment Terms: T/T, L/C
Supply Ability: 3 LINES PER MONTH DAYS

Pet Flake Automatic Waste Plastic Recycling line Cleaning Production Line

Description
Voltage: 380V,50Hz Or Customzied Material Processed: Crushing-washing-drying
Power: 150-500kw Production Capacity: 300-3000kg/h
High Light:

plastic bottle crusher

,

plastic bottle crushing machine



Pet Bottle Flakes Crusher Hot Washing Drying Plastic Recycling Line



We can design different plastic washing line according to your requirements:

  • Equipment name: PET plastic recycling equipment.
  • Production capacity: 500kg/h,1000kg/h 1500kg/h,2000kg/h,3000kg/h.
  • Material processed: PET bottle (such coca-cola ,small oil drum etc )
  • You can choose different devices according to your material. You can also purchase separate device based on your own conditions.
  • We providing turn-key project for you. Design-Product-Installment-Testing.
  • Superiority: Easy operation, high capacity, low energy consumption, safety, reliability, etc.

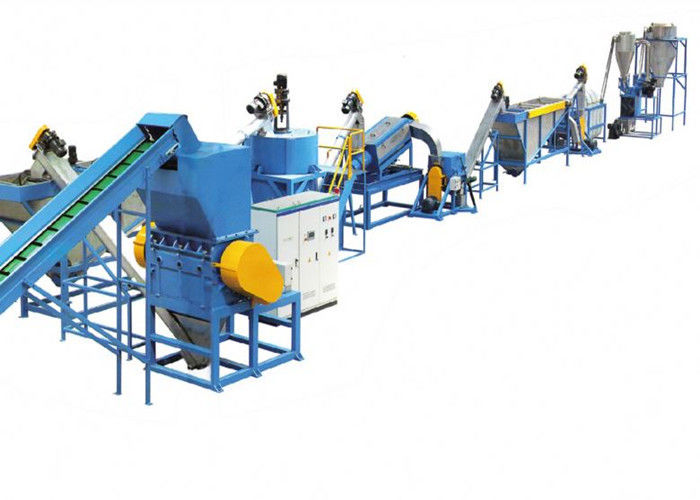

Processing of Pet Bottle Flakes Crusher Hot Washing Drying Plastic Recycling Line



bottle bale conveying ♦ debale ♦ whole bottle pre-washing ♦ bottle lable removing ♦ intelligent optical sorting system ♦ serial hot washing

♦ floting washing ♦ dewatering ♦ crushing ♦ manual sorting system ♦ dewatering drying ♦ bottle label separating ♦ dust remover



photo name size details Functional characteristics
PET Bottles Grinding Washing Drying Line,  Custom Waste Plastic Recycling Line 0 bale breaker

width 1500mm,

length 6000mm,

4pcs shafts



The bottle bricks are disassembled, and the unpacking speed can be adjusted

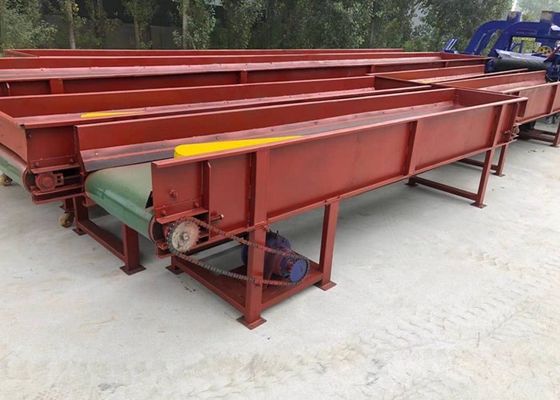

PET Bottles Grinding Washing Drying Line,  Custom Waste Plastic Recycling Line 1 conveyor machine 1000mmx5000mm Conveying the disassembled flat bottles to the roller screen

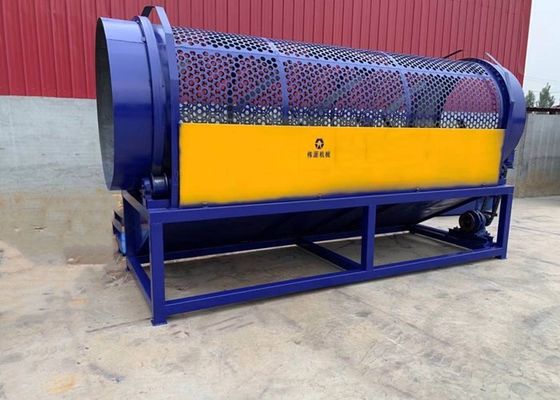

PET Bottles Grinding Washing Drying Line,  Custom Waste Plastic Recycling Line 2 tommel screen φ2000x5000mm Screen bottles to remove impurities
PET Bottles Grinding Washing Drying Line,  Custom Waste Plastic Recycling Line 3 lable removing machine Φ 720x5000mm, new alloy sand knives, double bellows and double fans Remove the trademark from the bottle
PET Bottles Grinding Washing Drying Line,  Custom Waste Plastic Recycling Line 4 crusher The crushing chamber is 1200x700mm with hydraulic cover lifting device Break the bottle into 12-20mm pieces

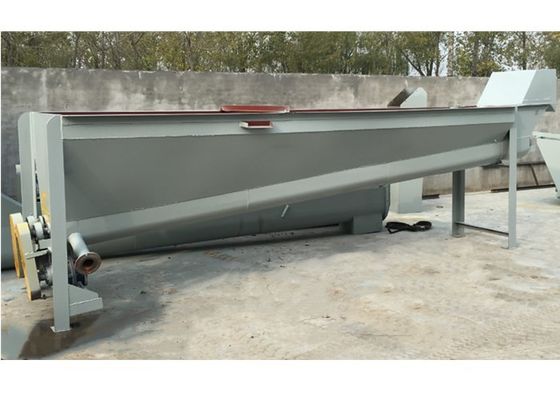

PET Bottles Grinding Washing Drying Line,  Custom Waste Plastic Recycling Line 5 cleaning tank It is 6 meters long, 2 meters wide and 1.8 meters deep, with a screw diameter of 0.5 meters and a bottle cap collection device Float the bottle cap in the sheet material and separate it out
PET Bottles Grinding Washing Drying Line,  Custom Waste Plastic Recycling Line 6 drying system Diameter 800*2500mm, full screen, screen material 304 stainless steel Remove impurities and moisture from bottle slices





Basic specification of Pet Bottle Flakes Crusher Hot Washing Drying Plastic Recycling Line



Product capacity

300kg/h

500kg/h

1000kg/h

1500kg/h

Needed worker

3-4 persons

5-6persons

7-8persons

10-12persons

Water supply
(recycle use)

2-3ton/h

3-5ton/h

7-10ton/h

10-15ton/h

Final product

Moisture: max 3%
Bulk density: 0.3G/CM3
Particle size: 10-18mm or customized
Metal content: max.20ppm
Floatable contamination: less than 200ppm
Total impurity: 100-320ppm



1. Plastic recycling washing machine is applied in pp pe waste film or bottle recycling field.
2. Recycling machine can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final

products are very clean.
3. The clean flakes can be used to produce the agriculture film, pp strap band, granules, pe transparent film and sheets,

etc. The top class flakes can be used to blow bottles again
