Home ProductsSelf Adhesive Insulation Pins

Stainless Steel Self Adhesive Insulation Pins / Self Stick Insulation Hanger Pins

Stainless Steel Self Adhesive Insulation Pins / Self Stick Insulation Hanger Pins

    • Stainless Steel Self Adhesive Insulation Pins / Self Stick Insulation Hanger Pins
    • Stainless Steel Self Adhesive Insulation Pins / Self Stick Insulation Hanger Pins
    • Stainless Steel Self Adhesive Insulation Pins / Self Stick Insulation Hanger Pins
    • Stainless Steel Self Adhesive Insulation Pins / Self Stick Insulation Hanger Pins
  • Stainless Steel Self Adhesive Insulation Pins / Self Stick Insulation Hanger Pins

    Product Details:

    Place of Origin: China
    Brand Name: Huihao
    Model Number: Insulation Hangers

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Packaging Details: 500pcs per carton, carton size 28cm x29cm x31cm or to be your request
    Delivery Time: 15 days after payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 300000pcs per 15 days
    Contact Now
    Detailed Product Description
    Material: Galvanized Steel Or Stainless Steel Or Aluminum Base Size: 2" X 2" (50x50mm) As Standard
    Base Thickness: 1mm As Standard Pin Diameter: 12ga(2.7mm) / 3mm / 10ga(3.4mm) Etc.
    Pin Length: 1" To 12" Name: Metal Insulation Hangers
    High Light:

    insulation pins and washers

    ,

    insulation wall plugs



    Galvanized Steel Or Stainless Steel Self Stick Insulation Hanger Pins





    >> >> >> Introduction To Self Stick Insulation Hanger Pins



    Self stick insulation pins are made of metal nail, square base and stick taple.

    Base material: galvanized steel, stainless steel

    Base size: 50*50mm/40*40mm or to be your requirement

    Base thickness: 1mm or to be your requirement

    Pin material: mild steel or aluminum 1100 grade or stainless steel

    Pin diameter: 12ga(2.7mm) /3mm /10ga(3.4mm) or to your requirement

    Pin length: 1" to 12"

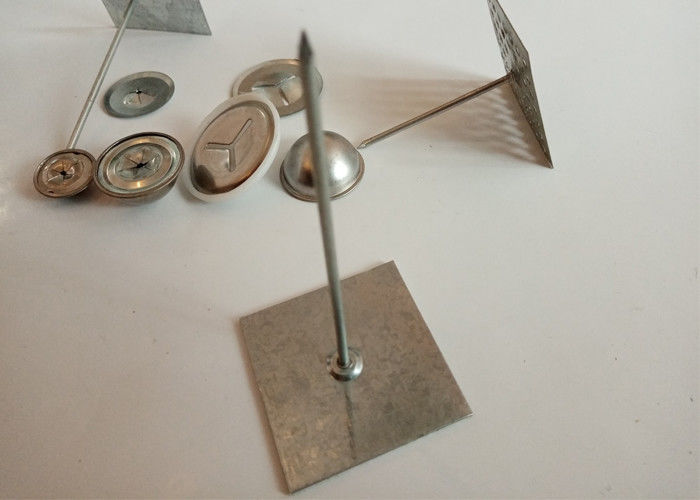

    Stainless Steel Self Adhesive Insulation Pins / Self Stick Insulation Hanger Pins 0

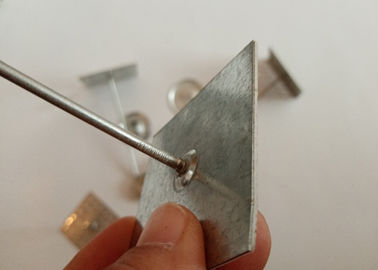

    Stainless Steel Self Adhesive Insulation Pins / Self Stick Insulation Hanger Pins 1

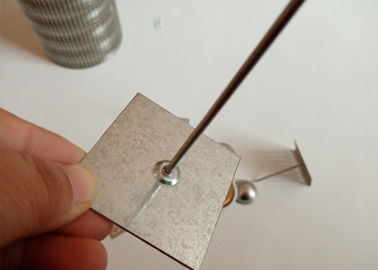

    Stainless Steel Self Adhesive Insulation Pins / Self Stick Insulation Hanger Pins 2



    >> >> >> Specification



    Base Size Pin Diameter Pin Length Tape Color Washer
    2''X2'' 12ga ( 0.106'' ) 1'' Red White Grey Available
    2''X2'' 12ga ( 0.106'' ) 1 1 / 2'' Red White Grey Available
    2''X2'' 12ga ( 0.106'' ) 1 5 / 8'' Red White Grey Available
    2''X2'' 12ga ( 0.106'' ) 2 1 / 2'' Red White Grey Available
    2''X2'' 12ga ( 0.106'' ) 3 1 / 2'' Red White Grey Available
    2''X2'' 12ga ( 0.106'') 4 1 / 2'' Red White Grey Available
    2''X2'' 12ga ( 0.106'' ) 6 1 / 2'' Red White Grey Available

    Other size also could be customed.



    Note:



    Technical parameter

    Foam density: 182kg/m³

    Liner release value: 10 N/m

    Peel Adhesion (23℃): 20 N/25mm

    Application Temperature: 10℃ - Advisory

    Static Shear: >1000 Hrs (PSTC)

    Service Temperature (Minimum): -35℃

    Service Temperature (Maximum): +90℃

    Tensile Strength: (L) 113 N/cm² (CNS10487)(C) 85 N/cm²

    Elongation: (L)170% (CNS 10487)(C) 150%

    Shelf Life: 2 years (20℃ 65%RH)

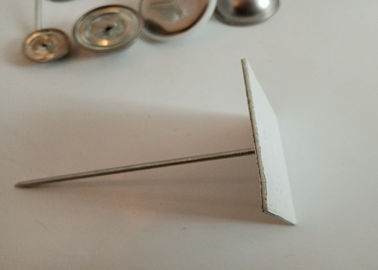

    Stainless Steel Self Adhesive Insulation Pins / Self Stick Insulation Hanger Pins 3



    >> >> >> Application Of The Self Stick Insulation Hanger Pins



    1. Work surfaces should be clean and dry, free of dust.
    2. Remove the protective release paper (taking care not to touch the adhesive).
    3. Place the hanger in the required position and press the base against the surface to be insulated
    4. Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength

       of adherence is achieved after 24 hours



    >> >> >> Package And Delivery



    1. insulation pin length less than 65mm, 1000pcs per carton, 64 cartons per pallets.
    2. insulation pins length 70mm-120mm, 500pcs per cartons,64 cartons per pallets.
    3. insulation pins length 125mm-250mm, 250 pcs per cartons, 64 cartons per pallets.
    4. as your requirement



    Sample: DHL/EMS/UPS/TNT/EXPRESS
    Large Order: we recommand you by SEA ,or by AIR if in an emergency.



    >> >> >> Introduction To Huihao Company



    1. Automatic CNC punching machine, automatic nailing machine and riveting machine, guaranteed on-time delivery



    2. First-class service team, communication barrier-free



    3. 24-hour service hotline,mobile 0086-18031853647 (whats app) or by email cherry@huihaomesh.com



    4. Standard export carton and tray, easy to handle, strong and not easy to break



    5. Huihao factory own ISO9001-2008 System certification, and we supply offical material certification and test report.



    Stainless Steel Self Adhesive Insulation Pins / Self Stick Insulation Hanger Pins 4
