Product Details:
|
| Name: | Insulation Clips | Material: | Stainless Steel Or Galvanized Steel |
|---|---|---|---|
| Thickness: | 0.4mm | Size: | 38mm Or 40mm |
| Application: | Fixing Weld Pins | Origin: | China |
| High Light: | insulation fixing washer,self locking dome caps |
||
Self-extinguishing Insulation Clips With Or Without Plastic Coated
Description:
Insulation clips is a locking washers for the insulation pins.
It is widely used for fixing Capacitor Discharge Weld Pins (CD insulation weld pins)
With or without plastic coated, insulation clips has the characteristics of
quick mounting, fire-resistance, self-extinguishing and halogen free.
It is installable in all positions.
| Item | Clip without plastic coated |
| Material | Galvanized steel, Stainless Steel |
| d1 | 38mm,60mm etc. |
| d2 | 2mm, 2.7mm, 3mm, 4mm, 5mm, 6mm etc. |
| Item | Clip with plastic coated |
| Material | Galvanized steel, Stainless Steel |
| d1 | 40mm etc. |
| d2 | 2mm, 2.7mm, 3mm, 4mm, 5mm, 6mm etc. |

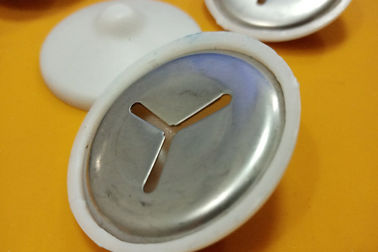

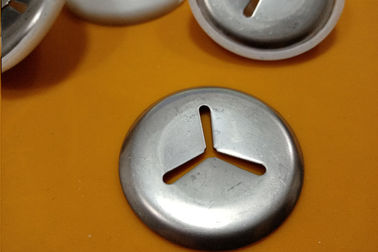

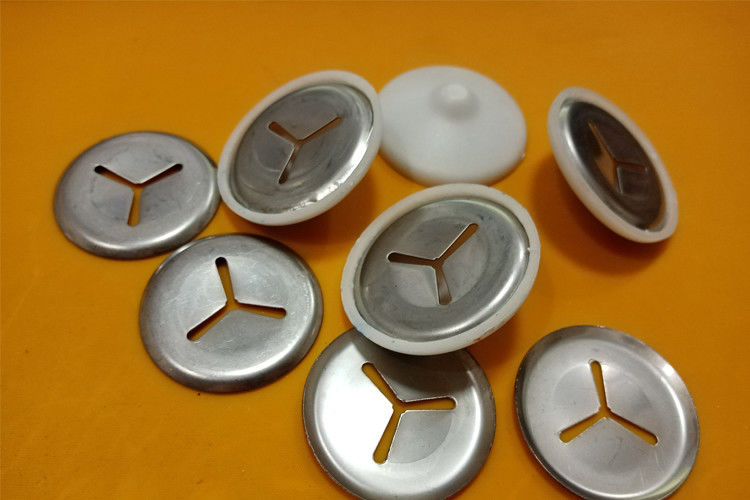

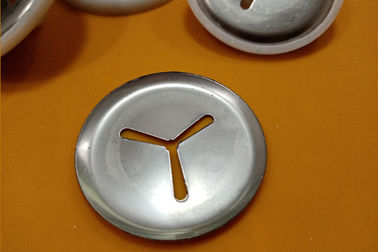

Detailed Image
Package:
PP bag + paper carton + wood pallet
100 pcs or 500 pcs or 1000 pcs per PP bag
Delivery:
Sample;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.
