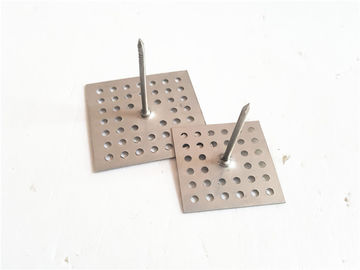

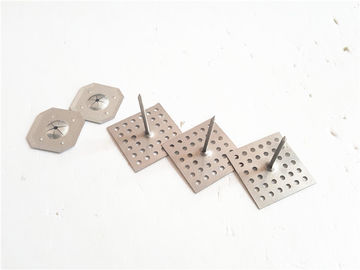

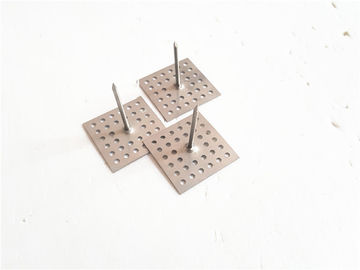

Soundproofing Work Metal Insulation Anchor Pins With Square Type Perforated Base

Soundproofing Work Metal Insulation Anchor Pins With Square Type Perforated Base
Soundproofing Work Metal Insulation Anchor Pins With Square Type Perforated Base
Soundproofing Work Metal Insulation Anchor Pins With Square Type Perforated Base Soundproofing Work Metal Insulation Anchor Pins With Square Type Perforated Base Soundproofing Work Metal Insulation Anchor Pins With Square Type Perforated Base Soundproofing Work Metal Insulation Anchor Pins With Square Type Perforated Base Soundproofing Work Metal Insulation Anchor Pins With Square Type Perforated Base

Large Image :  Soundproofing Work Metal Insulation Anchor Pins With Square Type Perforated Base

Product Details:
Place of Origin: China
Brand Name: HUIHAO
Certification: ISO9001-2008
Model Number: Insulation Anchor Pins
Payment & Shipping Terms:
Minimum Order Quantity: 5000pcs per carton
Packaging Details: 500pcs per carton
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300000pcs per 25 days

Soundproofing Work Metal Insulation Anchor Pins With Square Type Perforated Base

Description
Name: Insulation Anchor Pins Material: Stainless Steel 304/316, Galvanized Steel
Pin Length: Less Than 300mm Pin Dia: 12ga, 14ga, 3mm
Surface: Zinc Coated Small Order: Available
High Light:

rockwool insulation pins

,

duct insulation pins



Soundproofing Work Metal Insulation Anchor Pins With Square Type Perforated Base



specification of metal insulation anchor pins







photos of insulation anchor pins

material

pin dia

base size

length







Soundproofing Work Metal Insulation Anchor Pins With Square Type Perforated Base 0



















Galvanized steel ,ss , aluminum

2mm-3mm

2''X2''

1/2"

Galvanized steel ,ss , aluminum

2mm-3mm

2''X2''

1"

Galvanized steel ,ss , aluminum

2mm-3mm

2''X2''

1-5/8"

Galvanized steel ,ss , aluminum

2mm-3mm

2''X2''

2"

Galvanized steel ,ss , aluminum

2mm-3mm

2''X2''

3-1/2"

Galvanized steel ,ss , aluminum

2mm-3mm

2''X2''

4 1/2"

Galvanized steel ,ss , aluminum

2mm-3mm

2''X2''

5 1/2"

Galvanized steel ,ss , aluminum

2mm-3mm

2''X2''

6"

Galvanized steel ,ss , aluminum

2mm-3mm

2''X2''

8"

Galvanized steel ,ss , aluminum

2mm-3mm

2"x2"

8-1/4"

Galvanized steel ,ss , aluminum

2mm-3mm

2"x2"

8-1/2"

Galvanized steel ,ss , aluminum

2mm-3mm

2"x2"

9-1/2"



features of metal insulation anchor pins

  • Use raw materials that meet international standards

  • Rust-proof surface treatment, long service life

  • CNC technology, small error range

  • Smooth surface without burrs

  • Scientific dimensional design, in line with mechanical standards

  • Suitable for all kinds of wall

  • High pull-off strength for a higher security of the system

  • Low thermal conduction addition value to avoid thermal bridge

  • Galvanized layer on the steel nail to protect the nail from alkali

Recommended assembly method of metal insulation anchor pins



1.Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
2.fixing the perforated base insulation pins on the wall with drvie pins or cement nail orgum
3.Place the insulation pins in the required position and press the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips



Installation technical table for referencing

  • 1-5/8": Used for 1-1/2" .75# Fiberglass Duct Wrap
  • 2-1/2": Used for 2" Fiberglass Rigid Board / Foam Board
  • 4-1/2": Used for 4" Fiberglass Rigid Board / R-13
  • 6-1/2": Used for R-19 Fiberglass Batt Insulation
  • 9-1/2": Used for R-30 Fiberglass Batt Insulation
  • 12-1/2": Used for R-38 Fiberglass Batt Insulation
