SS Perforated Base Insulation Pins , Gal Steel Square Base Insulation Hangers

SS Perforated Base Insulation Pins , Gal Steel Square Base Insulation Hangers

    • SS Perforated Base Insulation Pins , Gal Steel Square Base Insulation Hangers
    • SS Perforated Base Insulation Pins , Gal Steel Square Base Insulation Hangers
    • SS Perforated Base Insulation Pins , Gal Steel Square Base Insulation Hangers
    • SS Perforated Base Insulation Pins , Gal Steel Square Base Insulation Hangers
  • SS Perforated Base Insulation Pins , Gal Steel Square Base Insulation Hangers

    Product Details:

    Place of Origin: China
    Brand Name: huihao
    Certification: ISO9001-2008
    Model Number: perforated base insulation pins

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000pcs
    Packaging Details: 500pcs per carton, 36 cartons per pallet, 1200mmx1200mmx1100mm wooden pallet
    Delivery Time: 8 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 250000pcs per 28 days
    Contact Now
    Detailed Product Description
    Name: Perforated Base Insulation Pins Material: Ss, Gal Steel
    Base Size: Common 50mm Length: Less Than 300mm
    Pin Diameter: 12ga, 10ga, 3mm Small Order: Available



    SS Perforated Base Insulation Pins, Gal Steel Square Base Insulation Hangers



    Features of SS Perforated Base Insulation Pins, Gal Steel Square Base Insulation Hangers

    • Use raw materials that meet international standards
    • Rust-proof surface treatment, long service life
    • CNC technology, small error range
    • Smooth surface without burrs
    • Scientific dimensional design, in line with mechanical standards
    • Suitable for all kinds of wall

    • High pull-off strength for a higher security of the system

    • Low thermal conduction addition value to avoid thermal bridge

    • Galvanized layer on the steel nail to protect the nail from alkali

    Technical data sheet of SS Perforated Base Insulation Pins, Gal Steel Square Base Insulation Hangers



    material

    pin dia

    base size

    length

    Galvanized steel ,ss , aluminum

    2mm-3mm

    2''X2''

    1/2"

    Galvanized steel ,ss , aluminum

    2mm-3mm

    2''X2''

    1"

    Galvanized steel ,ss , aluminum

    2mm-3mm

    2''X2''

    1-5/8"

    Galvanized steel ,ss , aluminum

    2mm-3mm

    2''X2''

    2"

    Galvanized steel ,ss , aluminum

    2mm-3mm

    2''X2''

    3-1/2"

    Galvanized steel ,ss , aluminum

    2mm-3mm

    2''X2''

    4 1/2"

    Galvanized steel ,ss , aluminum

    2mm-3mm

    2''X2''

    5 1/2"

    Galvanized steel ,ss , aluminum

    2mm-3mm

    2''X2''

    6"

    Galvanized steel ,ss , aluminum

    2mm-3mm

    2''X2''

    8"



    drawing as reference of SS Perforated Base Insulation Pins, Gal Steel Square Base Insulation Hangers







    applications of SS Perforated Base Insulation Pins, Gal Steel Square Base Insulation Hangers



    It is fixed on the position where there is significant wind-suction-force or if the height is more than 20m or if the finishing coat is tile etc.Exclusively

    used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and rock-wool in soundproofing works, and for the duct-lining

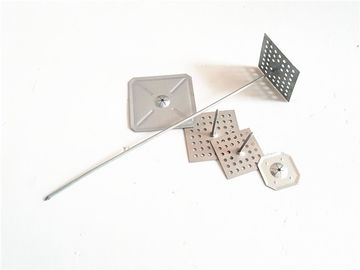

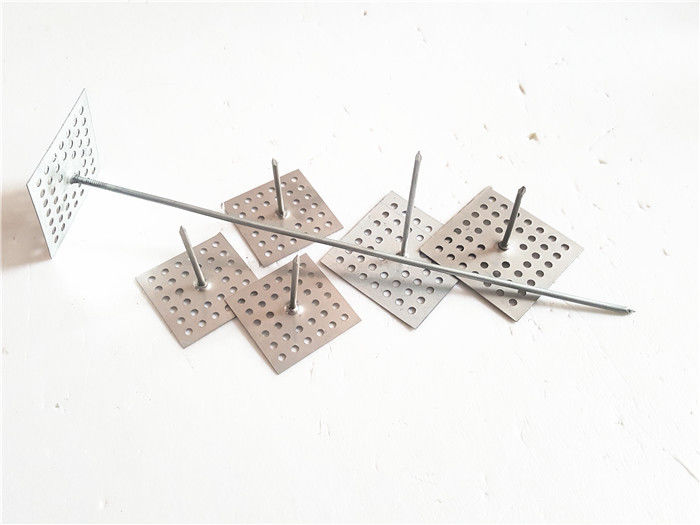

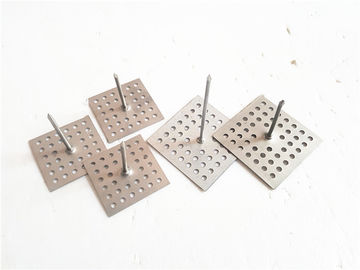

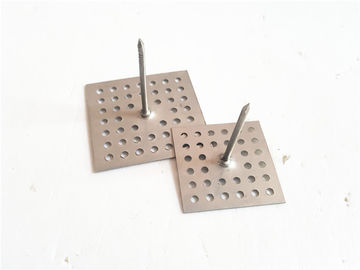

    images of SS Perforated Base Insulation Pins, Gal Steel Square Base Insulation Hangers



    SS Perforated Base Insulation Pins , Gal Steel Square Base Insulation Hangers SS Perforated Base Insulation Pins , Gal Steel Square Base Insulation Hangers
