160mm L Copper Plated Capacitor Discharge Stud Welding Nails With Metal Clips

160mm L Copper Plated Capacitor Discharge Stud Welding Nails With Metal Clips

    • 160mm L Copper Plated Capacitor Discharge Stud Welding Nails With Metal Clips
    • 160mm L Copper Plated Capacitor Discharge Stud Welding Nails With Metal Clips
    • 160mm L Copper Plated Capacitor Discharge Stud Welding Nails With Metal Clips
    • 160mm L Copper Plated Capacitor Discharge Stud Welding Nails With Metal Clips
  • 160mm L Copper Plated Capacitor Discharge Stud Welding Nails With Metal Clips

    Product Details:

    Place of Origin: China
    Brand Name: huihao
    Certification: ISO9001:2008
    Model Number: Welding pins

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: Stud Welding Nails packing details, 500 pcs per bag, 10 bags per carton, and also to be your requirements.
    Delivery Time: 5-8 work days
    Payment Terms: L/C, T/T, Western Union,Paypal
    Supply Ability: 500,000pcs per 30 days
    Contact Now
    Detailed Product Description
    Product Name: Welding Pins Material: Aluminum, Steel, Ss
    Surface Treatment: Copper Plated, Galvanized Weld Pin Length: 25mm-250mm
    Pin Diameter: 10 Ga ,12 Ga Application: Military Defense Vehicles, Shipping Building



    160mm L Copper Plated Capacitor Discharge Stud Welding Nails With Metal Clips



    what is Capacitor Discharge Stud Welding Nails?



    The Stud Welding Nails is a capacitor discharge weld insulation fastener, It also named CD pins, welded nails ans stud pins.

    include three types:

    • double point CD nails,
    • flat head CD Pins
    • Power point welding nails

    key words:Insulation Pin /stud pin / welding pin/ stud welding accessories / weld pins / stud welder pins



    Material : Copper Plated , Stainless Steel, special order is aluminum alloy material



    surface treatment: copper plated, zinc plated for mild steel, polish is for stainless steel 304/316/316l



    fixing part: round type self locking washer, suqare type self locking clips and dome caps



    Capacitor Discharge Stud Welding Nails specification



    Size(D)

    Pin Diameter(D)

    FD (Steel)

    FD (Aluminum)

    14GA

    0.080''

    0.160''

    -

    12GA

    0.105''

    0.180''

    0.235''

    3MM

    0.118''

    0.190''

    0.240''

    10GA

    0.135''

    0.195''

    0.255''



    Application of the Capacitor Discharge Stud Welding Nails



    160mm L Copper Plated Capacitor Discharge Stud Welding Nails With Metal Clips these Stud Welding Nails work with a stud welding machine, weld the pins on the sheet metal, then put the insulation through the welding pins, press a self locking washer onto the pin, bend over or clip off the pin to finish fastening insulation installation.
    160mm L Copper Plated Capacitor Discharge Stud Welding Nails With Metal Clips CD pins is used in Car manufacturing , Train Stations , Industrial building , Household Adornment , high stress environment such as off road construction , large expansion bridges , skyscrapers , power plant , military defense vehicles , and equipment in high temperature environment .

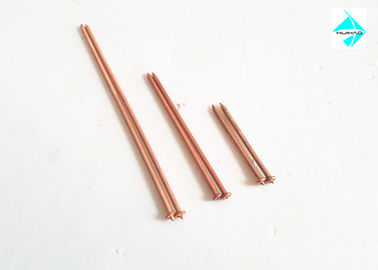

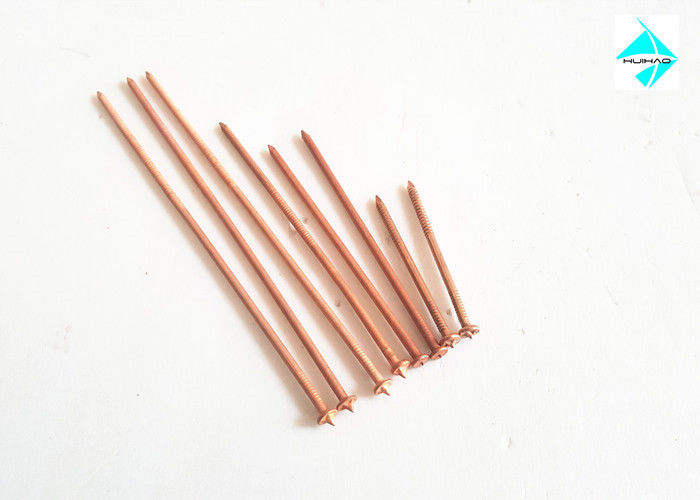

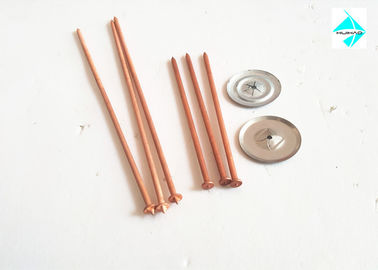

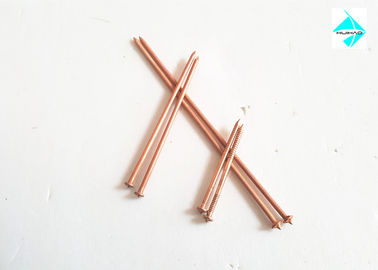

    Images of CD pins



    160mm L Copper Plated Capacitor Discharge Stud Welding Nails With Metal Clips

    160mm L Copper Plated Capacitor Discharge Stud Welding Nails With Metal Clips

    Packaging of the Capacitor Discharge Stud Welding Nails

    Plastic bags and cartons +wooden case



    product details

    box size

    quantity / box

    weight / box

    11ga 2" long CD pins

    26x26x8cm

    4000pcs

    10.8kgs

    11ga 3" long CD pins

    26x26x8cm

    2500pcs

    4.70kgs

    11ga 3-1/2" long CD pins

    26x26x8cm

    2500pcs

    5.50kgs

    11ga 4" long CD pins

    26x26x8cm

    2500pcs

    6.20kgs

    11ga 5" long CD pins

    26x26x11cm

    2500pcs

    7.60kgs



    we can't list every size for packing, we can list some sizes for indoemation



    huihao company advantages

    • free samples is available for common sizes in stocks
    • small orders is acceptable for common size
    • ensure quanlity with ISO9001-2008, SGS test report and other certificates
    • support installation guide and accessories
    • Fully automatic production line, technical R&D team, marketing team, after-sales service team, packaging design team
