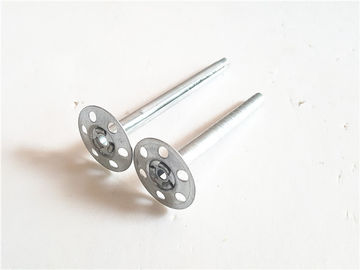

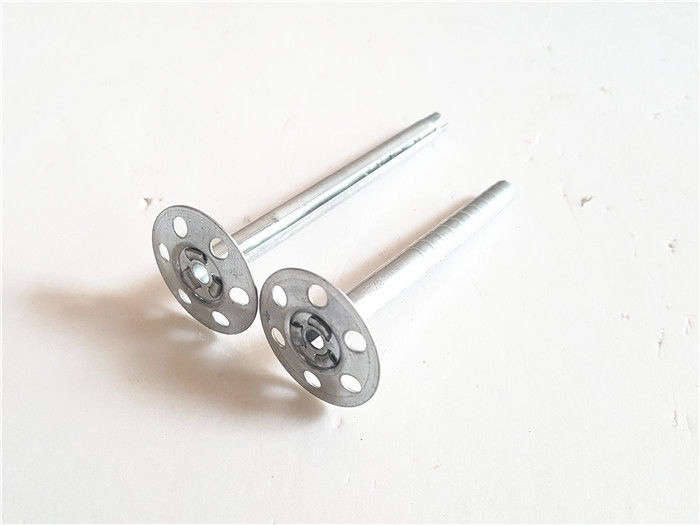

M8X90mm Rock Wool Galvanized Steel Pins For Fixing Mineral Board

M8X90mm Rock Wool Galvanized Steel Pins For Fixing Mineral Board

    • M8X90mm Rock Wool Galvanized Steel Pins For Fixing Mineral Board
    • M8X90mm Rock Wool Galvanized Steel Pins For Fixing Mineral Board
    • M8X90mm Rock Wool Galvanized Steel Pins For Fixing Mineral Board
    • M8X90mm Rock Wool Galvanized Steel Pins For Fixing Mineral Board
  • M8X90mm Rock Wool Galvanized Steel Pins For Fixing Mineral Board

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO9001:2008
    Model Number: Rock Wool Pins

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: paper box + wooden pallets
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 100,000 pcs per week
    Contact Now
    Detailed Product Description
    Product Name: Rock Wool Pins Material: Galvanized Steel
    Plug Dia: 8mm Pin Length: 80mm,90mm,110mm,140mm,etc
    Surface Treatment: Zinc Plated Material Thickness: 0.7mm
    Techincal: Punch And Riveting Round Base Washer: 35mm



    M8X90mm Rock Wool Pins in Galvanized Steel For Fixing Mineral Board


    Description of rock wool pins

    ___________________________________________________________



    Galvanized Steel Rock Wool Pins, also named metal expanded plug, rock wool insulation pins , inculation support and

    wall anchor plug. it is made of galvanized steel tube with round washer base. the product techincal is stamped by CNC

    machine with mould, then Iron pipe and base riveted together. insulation anchor pins is for fastening rigid insulation to

    masonry. It is as simple as drilling straight through the insulation into the masonry and hammer the insulation fixing the

     mineralwool for external walls.


    Data Sheets of of the Rock Wool Pins

    ___________________________________________________________


    •Material:Galvanized steel in common , and also could be stainless steel
    •Base diameter :35mm in common , also could be 30mm

    Pins diameter :8mm

    •Pin length:90mm/110mm in common , also could be other length (see the data sheet)
    •Surface treatment: galvanized, polish



    Data Sheet of  the Rock Wool Pins



    Pin Size Plug Diameter Pin Length Round base washer diameter Pin Weight
    M8x50 8mm 50mm 30mm / 35mm  10.2g
    M8x60 8mm 60mm 30mm / 35mm 11.2g
    M8x90 8mm 90mm 30mm / 35mm 14.8g
    M8x110 8mm 110mm 30mm / 35mm 17.3g
    M8x140 8mm 140mm 30mm / 35mm 20.8g
    M8x170 8mm 170mm 30mm / 35mm 24.4g
    M8x230 8mm 230mm 30mm / 35mm 34.4g



    Application of the Rock Wool Pins

    __________________________________________________________________________________


    Rock Wool Pins is widely used in the construction and decoration, the anchoring aspect of the wall insulation house. It

    consists of galvanized screws, nylon risers and fixed discs. According to the thickness of the insulation layer, it is divided

    into various specifications.



    According to JG149-2003 external wall insulation standards
    Single insulation nail load capacity >0.8KN
    Thermal conductivity >0.004


    they are suit for concrete, natural stone with dense structure, solid brick, solid sand-lime brick, solid block made from

    lightweight concrete, aerated concrete, vertically perforated brick, perforated sand-lime brick etc.

    How many rock wool pins in one square meter ?

    The number of rock wool pins installed on the outer wall insulation system of the extrusion plate:
    the average number for per  square meter :

    6 rock wool pins  for 1-10 layers extrusion plate
    7 rock wool pins  for 11-20 layers extrusion plate

    9 rock wool pins for 21-26 layers extrusion plate



    Any single piece larger than 0.1 square meter must be anchored according to shape and site conditions; the density of the

    anchor should be increased around the sun's angle, under the mouth and at the edge of the hole. Not more than 300 mm

    from the edge of the base. Not less than 60 mm


    Approval and Testing Report

    ____________________________________________________________________________

    • CE Approval
    • Reaction to Fire test: A1
    • Material Inspection certification
    • Salt Spray Test

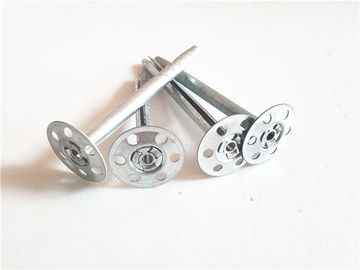

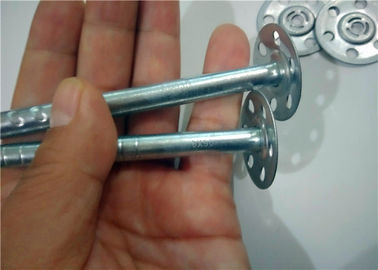

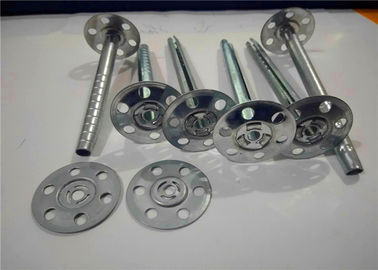

    images of galvanized steel insulation anchor pins

    ____________________________________________________________________



    M8X90mm Rock Wool Galvanized Steel Pins For Fixing Mineral Board


    Packaging of the Rock Wool Pins

    __________________________________________________________________________


    250pcs per carton, and then put the cartons on pallets; and also could be packed as request.


    M8X90mm Rock Wool Galvanized Steel Pins For Fixing Mineral Board
