Product Details:
|
| Product Name: | Self Stick Rock Wool Pins | Material: | Galvanized Steel , Stainless Steel , Aluminum |
|---|---|---|---|
| Pin Dia: | 12 Ga As Standard | Base Size: | 2' X'2'' As Standard |
| Pin Length: | 25mm - 200mm ,could Be Customized | Sticker Color: | White , Red,blue In Common |
| High Light: | insulation pins and washers,insulation wall plugs |
||
HUIHAO company supply HVAC self adhesive insulation pins/hangers, self adhesive insulation hangers with good quality & competetive
price. If you have special requirement, please feel free to contact us!

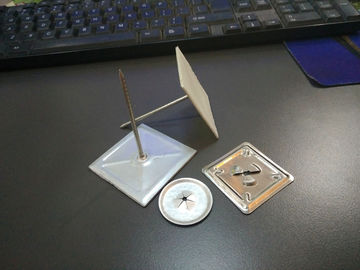

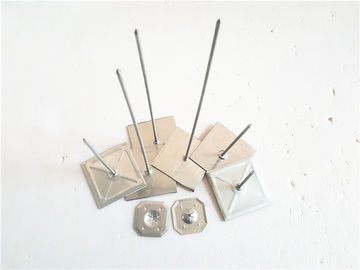

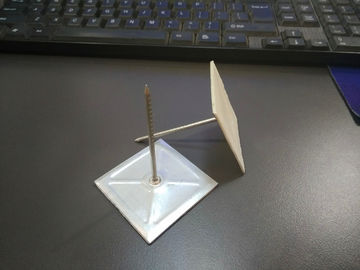

Self adhesive insulation hangers are designed to fix efficiently insulation on smooth surfaces such as air ducts, attenuators, chambers
and enclosures. It consists of a pin, firmly mounted on a high quality self adhesive base.
After the self adhesive pins are installed, the insulation is impaled over the spindle & secured with a self-locking washer.
Material:Galvanized steel in common, also could be stainless steel and aluminum
Plate:could be steel sheet or perforated metal sheet
|
Pin diameter |
Base size |
Pin length in common |
|
12 Ga (2.7mm or 0.106'') |
2''x2''base (50mmx50mm) |
25mm |
|
12 Ga (2.7mm or 0.106'') |
2''x2''base (50mmx50mm) |
50mm |
|
12 Ga (2.7mm or 0.106'') |
2''x2''base (50mmx50mm) |
63mm |
|
12 Ga (2.7mm or 0.106'') |
2''x2''base (50mmx50mm) |
89mm |
|
12 Ga (2.7mm or 0.106'') |
2''x2''base (50mmx50mm) |
130mm |
|
12 Ga (2.7mm or 0.106'') |
2''x2''base (50mmx50mm) |
140mm |
|
12 Ga (2.7mm or 0.106'') |
2''x2''base (50mmx50mm) |
200mm |
|
13Ga(2.4mm or 0.095'') |
2''x2''base (50mmx50mm) |
70mm |
and above mark in blue have large in stock .
The most popular type is 2.7mmx65mm and 3.0mm x130mm.
The length of the Self Adhesive Insulation Pins also could be customized .
1. Environmentally-friendly
2. Light, dust free, fire retardant and easy to install
3. Heat reflection, heat insulation, sound insulation, counter radiation, counter vibration and shielding
4. During Summer: moisture barrier, sun protection, waterproof, energy saving consumed by cool air conditioning
5. During Winter: heat protection, remarkable energy saving consumed by warm air conditioning

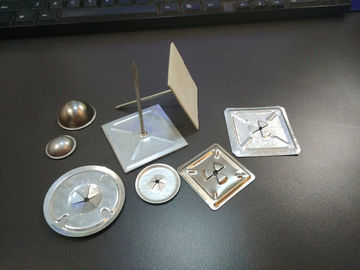

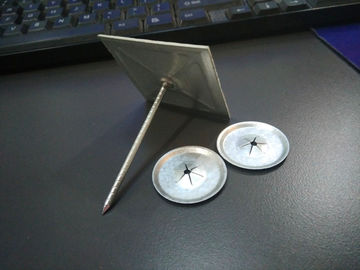

The pins could have washers together
put he washers into plastic bags and then put the bag into carton.
Packaging methods of the Self Stick Rock Wool Pins
Cartons and pallets:500 pcs in one carton in common,also could be packed according to the customer's requirement.
Our products includes CD weld pins, Cup head weld pins, Perforated base pins, self adhesive pins,
Lacing Anchors, Quilting pins, Insulation plugs, all kinds of self locking washers, Dome caps.
