Plastic Fish - Shaped Expansion Anchor Bolt With Countersunk Head Tapping Screw

Plastic Fish - Shaped Expansion Anchor Bolt With Countersunk Head Tapping Screw

    • Plastic Fish - Shaped Expansion Anchor Bolt With Countersunk Head Tapping Screw
    • Plastic Fish - Shaped Expansion Anchor Bolt With Countersunk Head Tapping Screw
    • Plastic Fish - Shaped Expansion Anchor Bolt With Countersunk Head Tapping Screw
    • Plastic Fish - Shaped Expansion Anchor Bolt With Countersunk Head Tapping Screw
  • Plastic Fish - Shaped Expansion Anchor Bolt With Countersunk Head Tapping Screw

    Product Details:

    Place of Origin: China
    Brand Name: huihao
    Certification: ISO9001-2008
    Model Number: Fish-shaped Expansion Anchor Bolt

    Payment & Shipping Terms:

    Minimum Order Quantity: 30000PCS
    Packaging Details: 1000PCS /BAG
    Delivery Time: 7 WORK DAYS
    Payment Terms: L/C, T/T
    Supply Ability: 30000PCS PER 7 DAYS
    Contact Now
    Detailed Product Description
    Material: PE DIAMETER: M6-M10
    LENGTH: 30MM-200MM SCREW TYPE: Countersunk Head Tapping Screw
    Small Order: Available Sample: Available



    Plastic Fish-shaped Expansion Anchor Bolt With Countersunk Head Tapping Screw



    plastic expansion anchor bolt features

    applications of expansion anchor bolt

    Product injection molding, good toughness, strong hardness, large load, impact resistance, corrosion resistance, aging resistance, small size, accurate and fast. Due to the reasonable design of the fish-shaped wing structure, the sliding of the pipe body during installation is prevented, and the anti-backup action is played, so that the work efficiency and the installation quality are improved, and the construction time is greatly shortened.

    An expansion plug for fixing in a hole having a recessed portion that has been punched is known, and the expansion fixture is hit by a pneumatic drill or a hammer onto the expansion cone. In order to avoid cracks in the wall during the installation process, in order to meet the demand for thin-walled expansion plugs, the present invention proposes a new expansion plug whose expansion sleeve is sleeved by feeding the inner sleeve into the inner hole. On the bolt of the expansion cone, the expandable portion of the expansion sleeve is suitable for drilling with a concave portion



    Specification of Plastic Fish-shaped Expansion Anchor Bolt



    Plastic Fish - Shaped Expansion Anchor Bolt With Countersunk Head Tapping Screw

    D

    L

    DRILL DIA

    HOLE DRILL

    SCREW DIA

    6MM

    30MM

    6MM

    40MM

    3.5-4MM

    6MM

    40MM

    6MM

    50MM

    3.5-4MM

    6MM

    60MM

    6MM

    70MM

    3.5-4MM

    6MM

    80MM

    6MM

    90MM

    3.5-4MM

    6MM

    100MM

    6MM

    110MM

    3.5-4MM

    8MM

    40MM

    8MM

    50MM

    5-5.5MM

    8MM

    60MM

    8MM

    70MM

    5-5.5MM

    8MM

    80MM

    8MM

    90MM

    5-5.5MM

    8MM

    100MM

    8MM

    110MM

    5-5.5MM

    8MM

    120MM

    8MM

    120MM

    5-5.5MM

    8MM

    135MM

    8MM

    145MM

    5-5.5MM

    8MM

    150MM

    8MM

    160MM

    5-5.5MM

    10MM

    50MM

    10MM

    60MM

    6-7MM

    10MM

    60MM

    10MM

    70MM

    6-7MM

    10MM

    80MM

    10MM

    90MM

    6-7MM

    10MM

    100MM

    10MM

    110MM

    6-7MM

    10MM

    120MM

    10MM

    130MM

    6-7MM

    10MM

    135MM

    10MM

    145MM

    6-7MM

    10MM

    160MM

    10MM

    170MM

    6-7MM

    10MM

    200MM

    10MM

    210MM

    6-7MM



    Techincal of expansion anchor bolt



    plug size   m6 m8 m10
    screw diameter   5 6 8
    Destructive load pull 1.6 2 2.6
      Shear force 3.1 4.9 6.7
    Design load pull 0.3 0.4 0.5
      Shear force 1 2 3
    Minimum edge spacing min 80 90 110
    min edge distance 50 60 60

    NOTE:The substrate for the installation data is concrete C25

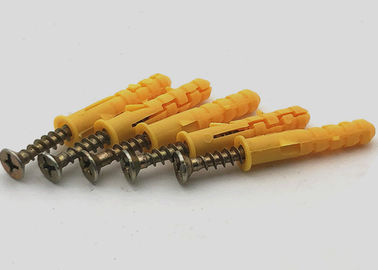

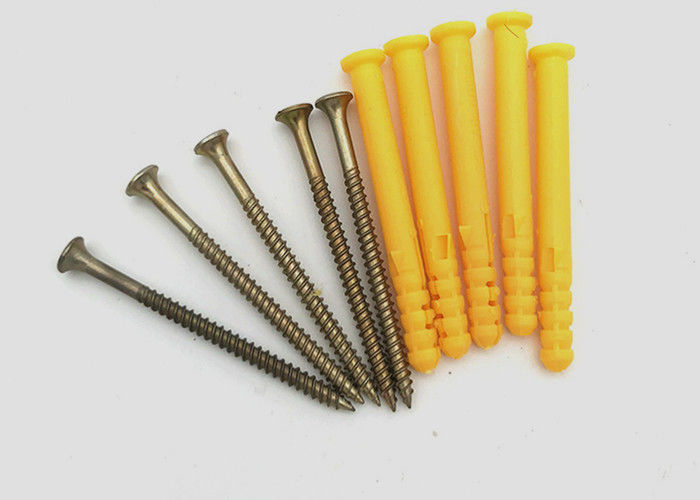

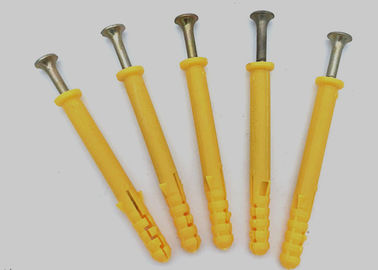

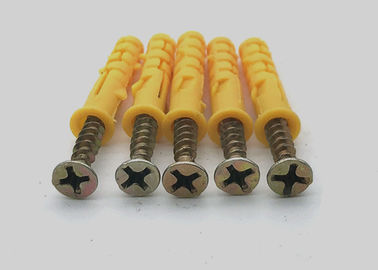

    images of Plastic Fish-shaped Expansion Anchor Bolt



    Plastic Fish - Shaped Expansion Anchor Bolt With Countersunk Head Tapping Screw

    Plastic Fish - Shaped Expansion Anchor Bolt With Countersunk Head Tapping Screw
