50mm L Plastic Expansion Rubber Plug With Screw Used For Toilet Installation

advantages of rubber plug with screw

High expansion coefficient, good weather resistance, impact resistance, no cracking

Huihao company has more than 100 kinds of products, more than 1,500 specifications, and 15 million safety stocks. Can meet more than 90% of customer needs, and can develop molds and custom non-standard products according to customer requirements. Products meet the green ROHS certification.

specification of plug with screw

D	L	DRILL DIA	HOLE DRILL	SCREW DIA	MATERIAL
10	50	10	60	5.5-7	PA
12	60	12	70	6.5-9	PA
14	75	14	90	8.5-11	PA

ds	max	4	5	6	7	8	10	12	16	20
	min	3.52	4.52	5.52	6.42	7.42	9.42	11.3	15.3	19.3
k	max	3.1	3.88	4.38	5.38	5.88	7.45	8.45	10.45	13.9
	min	2.5	3.13	3.63	4.63	5.13	6.55	7.55	9.55	12.1
s	max	7	8	10	12	13	17	19	24	30
	min	6.64	7.64	9.64	11.57	12.57	16.57	18.48	23.16	19.16

1. Certification: ISO, ROHS, SGS
2. Available Standard: DIN, ANSI, ASTM, JIS, BSW
3. Strength: Grade 4.8,Grade 8.8,Grade10.9,Grade12.9 A2-70, A4-70, A4-80
4. Finishing: Yellow, blue, white zinc plated, Galvanized,HDG,Chromate,Dacromet
5. Available material: Carbon steel, stainelss steel SS304, A2 ,Stainless steel SS314,A4.

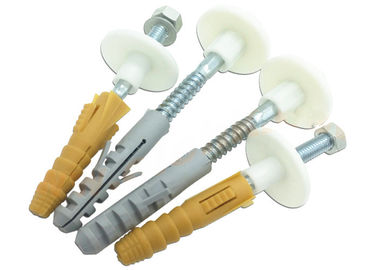

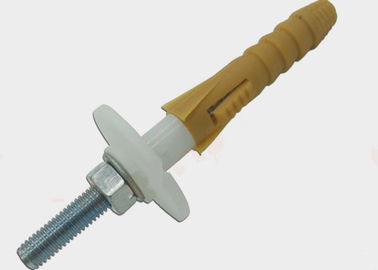

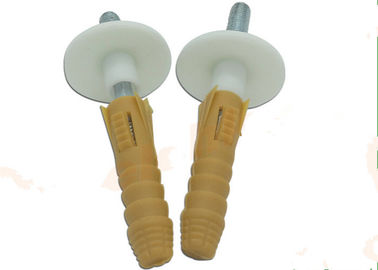

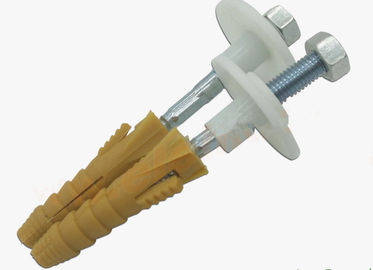

images of expansion plastic plug with screw

application of expansion plug with screw

drawing	guide of expansion plug with screw
	Now drilling holes in the wall, the depth and diameter of the hole need to correspond to the size of the engineering product. Push the anchor bolt into the wall with a rubber hammer Align the anchor hole with the anchor Insert the screw, turn it clockwise, and flush with the anchor.

Expansion Rubber Plug With Screw is used for Concrete, natural stone, solid brick, hollow brick, perforated brick, lime sand brick
