Product Details:
|
| Name: | Hebrides Wire Mesh | Material: | Stainless Steel/ Aluminum |
|---|---|---|---|
| Wire Type: | Flat Wire | Flat Wire Diameter: | 1.1mm×5mm |
| Flat Pitch: | 40mm | Weight: | 4.48kgs/m2 |
| Small Order: | Available | Custom: | Support And Fast |
| High Light: | architectural woven metal mesh,monel wire mesh |
||
Overseas warehouse services, double clearing tax, door-to-door service, mainly for the United States,
Australia and Europe. Other areas are pending development.
1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.
Hebrides wire Mesh specification
___________________________________________________________________________________
|
Material |
Stainless Steel |
Opening Area |
56% |
|
round Diameter |
2mm |
Mesh Thickness |
5mm |
|
round Nos |
2 |
Surface |
antique brass plated |
|
round Pitch |
20mm |
Max High |
15000mm |
|
Weight |
7kgs/m2 |
Max Wide |
4000mm |
|
Application |
Interior / Exterior |
Details of Hebrides wire Mesh
___________________________________________________________________________________
Weaving: compiled by a special process, metal lines with the unique flexibility and brightness, deeply museum, exhibition hall and
other brand personality decoration of all ages.
Characteristics: non-flammable, high strength, durable, easy maintenance, functional and decorative effect vivid, strong, and to good
effect on the building structure protection. The installation is simple and fast, shape chic and elegant.

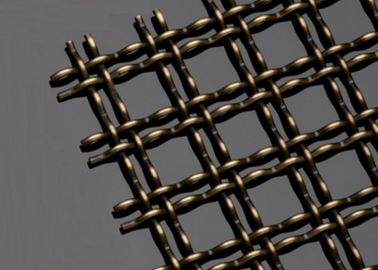

Hebrides wire Mesh pictures
___________________________________________________________________________________
 |
|
| antique brass plated color | antique copper plated color |
|
|
| antique Ni pleated color | PVD gold color finished |
Hebrides wire Mesh application
___________________________________________________________________________________
widely used in Exterior facades,Fence and gates,Decorative curtains,Terrace and corridors,Staircases isolation screen,Floor
covering fabrics,Wall coverings,Sunshades and canopies,Balustrades,Partition screens,Infill panels,Elevator cabins screen
The architectural Hebrides wire Mesh benefits
___________________________________________________________________________________
Strong, durable and flexible construction
Ventilation, light transmission and sound absorption
Certain protection and safe
Elegant, upscale and unique style
Fashion and versatility
Easy to install and low maintenance
