Architectural Brass Plated Decorative Wire Mesh For Cabinetry And Cladding

Architectural Brass Plated Decorative Wire Mesh For Cabinetry And Cladding

    • Architectural Brass Plated Decorative Wire Mesh For Cabinetry And Cladding
    • Architectural Brass Plated Decorative Wire Mesh For Cabinetry And Cladding
    • Architectural Brass Plated Decorative Wire Mesh For Cabinetry And Cladding
  • Architectural Brass Plated Decorative Wire Mesh For Cabinetry And Cladding

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO
    Model Number: Plated Decorative Wire Mesh

    Payment & Shipping Terms:

    Minimum Order Quantity: 30 square meters
    Packaging Details: plastic paper per pieces, 50 piecs per wooden case
    Delivery Time: 8 work days
    Payment Terms: L/C, T/T, paypal
    Supply Ability: 800 square meters wothin 20 days
    Contact Now
    Detailed Product Description
    Name: Plated Decorative Wire Mesh Material: Ss304/316
    Flat Diameter: 1.5×3.5mm Flat Pitch: 10mm
    Thickness: 3mm Weight: 8.6kgs/m2
    Surface Tratment: Antique Brass Plated Open Area: 42.2%
    Small Order: Available Sample: Available
    Frame: Design To Your Requirements Pattern: Custom



    Architectural Brass Plated Decorative Wire Mesh Used For Cabinetry & Cladding


    Specification of Brass Plated Decorative Wire Mesh
    ___________________________________________________________________________________


    Materials: High-quality stainless steel, aluminum, brass, copper alloy and other materials


    Material

    Stainless Steel

    Opening Area

    42.2%

    Flat Diameter

    1.5×3.5mm

    Mesh Thickness

    3mm

    Flat Nos

    1

    Surface

    Antique Plated

    Flat Pitch

    10mm

    Max High

    3000mm

    Weight

    8.6kgs/m2

    Max Wide

    1500mm



    1.pattern design support according to the application
    2. frame design support according to the installation
    3. surface treatments support , include PVDF, PVD, Spraying.
    4. supply install accessories, include screw, wall anchor, track, bolt and others
    5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
    6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.




    Brass Plated Decorative Wire Mesh details
    ___________________________________________________________________________________

    Metal Decorative Wire Mesh, also named metal fabric or architectural mesh, is weaved with high quality stainless steel wire ,
    aluminum alloy wire, brass wire, copper wire or other alloy materials . It is a new decorative material in the modern industrial
    and architectural applications.
    Features: available in many different patterns, each with its own characteristics and optical effect.

    Decorative wire mesh accessories
    1) top : woven-in round bar, hook attachment
    2) intermediate:woven-in round bar, plvot attachment
    3) bottom: woven-in round bar, tension spring,eyebolt spring

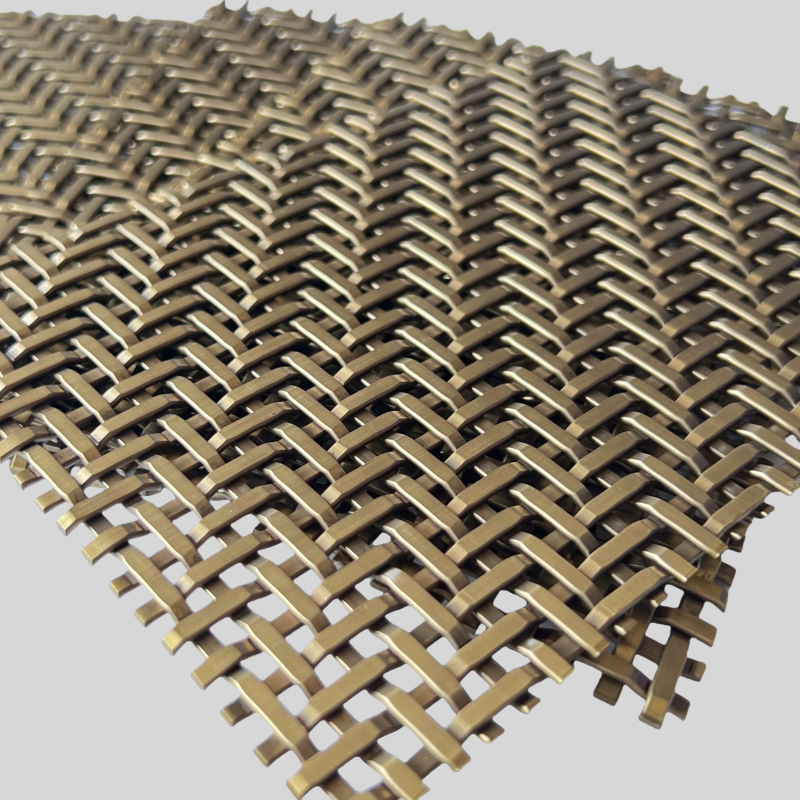

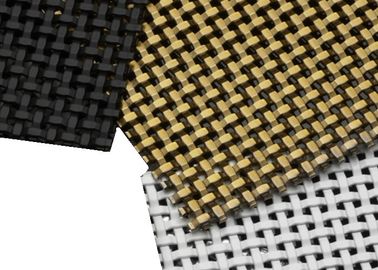

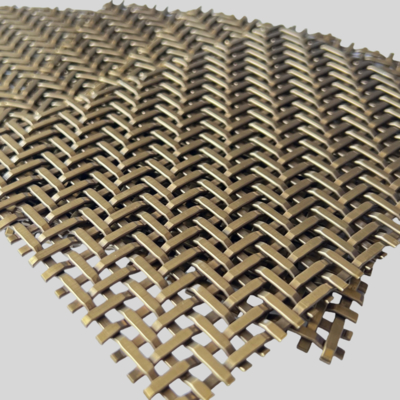

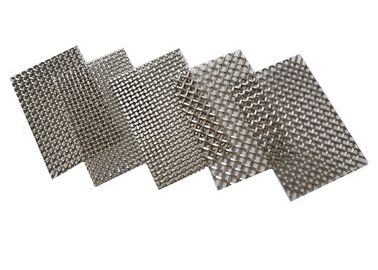

    pictures of Brass Plated Decorative Wire Mesh
    ___________________________________________________________________________________


    Architectural Brass Plated Decorative Wire Mesh For Cabinetry And CladdingArchitectural Brass Plated Decorative Wire Mesh For Cabinetry And CladdingArchitectural Brass Plated Decorative Wire Mesh For Cabinetry And CladdingArchitectural Brass Plated Decorative Wire Mesh For Cabinetry And Cladding
    Architectural Brass Plated Decorative Wire Mesh For Cabinetry And CladdingArchitectural Brass Plated Decorative Wire Mesh For Cabinetry And CladdingArchitectural Brass Plated Decorative Wire Mesh For Cabinetry And CladdingArchitectural Brass Plated Decorative Wire Mesh For Cabinetry And Cladding


    Application of Brass Plated Decorative Wire Mesh
    _______________________________________________________________________________________________

    Applications: Due to their multiple functional and aesthetic qualities, the meshes are suitable for various applications In architecture
    and interior design, metal fabrics are used for decoration as:

    • Wire mesh facades;
    • Shade screens;
    • Architecture ceilings;
    • Metal draperies for walls, partition and isolation screens;
    • Staircases isolation screen, elevator cabins screen;
    • Floor covering fabrics;
    • Other special uses.

    decorative wire mesh length and width can be changed according customer requirements.

    Architectural Brass Plated Decorative Wire Mesh For Cabinetry And Cladding
