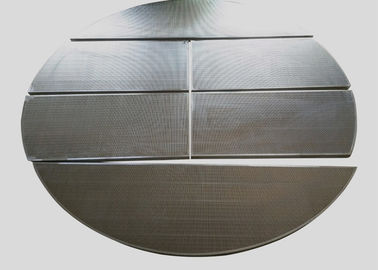

Johnson Wire Lauter Tun Screen, Wedge Wire Circle screen Plate For Beer Filter

Johnson Wire Lauter Tun Screen, Wedge Wire Circle screen Plate For Beer Filter

    • Johnson Wire Lauter Tun Screen, Wedge Wire Circle screen Plate For Beer Filter
    • Johnson Wire Lauter Tun Screen, Wedge Wire Circle screen Plate For Beer Filter
    • Johnson Wire Lauter Tun Screen, Wedge Wire Circle screen Plate For Beer Filter
    • Johnson Wire Lauter Tun Screen, Wedge Wire Circle screen Plate For Beer Filter
  • Johnson Wire Lauter Tun Screen, Wedge Wire Circle screen Plate For Beer Filter

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO
    Model Number: Lauter Tun Screen

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 pcs
    Packaging Details: standard packing, wooden case
    Delivery Time: 8 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000pcs per 15 days
    Contact Now
    Detailed Product Description
    Name: Lauter Tun Screen Slot: 0.7mm, 0.75mm, 0.8mm, 1.0mm, Customized
    Diameter: 200mm To 2500mm Support Bar: 3mmx5mm
    Sample: Support Custom: Support



    Johnson Wire Lauter Tun Screen, Wedge Wire Circle screen Plate For Beer Filter



    Specification of Lauter Tun Screen

    ___________________________________________________________________________________



    This product is processed by advanced fusion welding technology, with high strength, rigidity and bearing capacity, which can be used to make rigid

    sieving filters of various shapes.The slot size is accurate and the filtering precision is high.It has the advantages of strong structure, high ventilation

    efficiency, good heat dissipation, high temperature resistance, corrosion resistance, good mechanical properties, long service life, safe and reliable



    Normal Name

    Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc.

    Diameter Range

    (MM)

    200mm To 2500mm. Diameter Customized

    Normal Diameter

    (MM)

    29”, 30”, 35”, 37”, 40”, 45”, 47”, 59”, 63”, 74”, Etc

    Normal Slot

    (MM)

    0.7mm, 0.75mm, 0.8mm, 1.0mm, customized

    Normal Thickness (MM)

    8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized.



    Sections & shape

    1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized

    Wedge wire

    (MM)

    2x4MM Wedge Wire, 3x5MM Wedge Wire

    Support Rod

    (MM)

    3x5MM V shaped Support Rod, 3x5mm Square Support Rod

    Strengthen Rod

    (MM)

    Thickness and Height according to the diameter and screen thickness

    Note

    Usually customized.



    Details of Lauter Tun  Screen

    ___________________________________________________________________________________



    SS wedge wire lauter tun screen plate used in making of water well screen. SS wedge wire lauter tun screen plate is made up of supporting rods and wire

    screening strips. The supporting rod can be round wire, triangular wire or trapezoid wire. The screening filter is made of triangular wire (V-shaped wire).



    wedge wire circle screen plate consist of V shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid

    blockage ,and make sure of the unimpeded water.



    Applications of Johnson Lauter Tun Screen

    ___________________________________________________________________________________



    Mining machinery:

    Used for desilting and dewatering of coal preparation plants.



    Wheat tooth machine:

    It is suitable for use in wheat tooth mill, floater and drying stove.



    Beer machine:

    It is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.



    Food industry:

    The filtration process can be used for food and beverage.



    images of Welded Johnson Lauter Tun Screen

    ___________________________________________________________________________________



    Johnson Wire Lauter Tun Screen, Wedge Wire Circle screen Plate For Beer Filter

    Johnson Wire Lauter Tun Screen, Wedge Wire Circle screen Plate For Beer Filter

    Johnson Wire Lauter Tun Screen, Wedge Wire Circle screen Plate For Beer Filter
