Product Details:
|
| Name: | Centrifuge Basket | Wire Type: | V Wire |
|---|---|---|---|
| Wedge Wire Width: | 0.75 1.50 1.80 2.30 3.00 3.30 3.70 | Support Rod Width: | 1.00 1.80 2.00 3.00 4.00 5.00 |
| Support Height: | 2.00 2.50 3.00 5.00 6.00 8.00 | Top & Bottom Diameter: | Width Up To 2.5 Meters |
| High Light: | johnson wedge wire screens,johnson well screen |
||
Product Description
_______________________________________________________________________________________________
Coal centrifuge basket is a key component of the centrifugal machine and it's a high-speed rotating component. When working,
it is not only to withstand vibration sieve basket loading, but also bear the severe impact of the water and the coal, so it need
relatively high strength and precision.
Specification of Coarse Centrifuge Basket
_______________________________________________________________________________________________
|
Material:
|
stainless steel (304,316etc.)
|
|
Wedge Wire (mm):
|
Width : 0.75 1.50 1.80 2.30 3.00 3.30 3.70
|
|
Support Rod (mm):
|
Width : 1.00 1.80 2.00 3.00 4.00 5.00
|
|
Height : 2.00 2.50 3.00 5.00 6.00 8.00
|
|
|
Top & bottom Diameter:
|
Width Up To 2.5 meters
|
|
Length:
|
lengths up to 6 meters.
|
|
Slot size:
|
0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
|
|
Angle:
|
Other specifications can be customized according to your requirement
|
|
Surface profiles |
Support profiles |
Min. Slot in mm |
Standard pitch in mm |
|
12s/12sl |
q25/q35 |
0.030 |
22 |
|
12s |
q35/10x3 |
0.100 |
35-100 |
|
18s |
q35/10x3/25x3 |
0.100 |
35-100/70 |
|
22s |
Q35/10x3/25x3/50x3 |
0.120 |
35-100/70 |
|
28s |
Q35/10x3/25x3/50x3 |
0.150 |
35-100/70 |
|
34s |
Q35/10x3/25x3/50x3 |
0.150 |
35-100/70 |
|
42s |
Q35/10x3/25x3/50x3 |
0.150 |
40-100/70 |
|
50s/50sc |
10x3/25x3/50x3 |
0.150 |
45-100 |
|
pitch = distance between support profiles |
|||
Dimensions
For pitch 22 mm:
Max. surface profile length: 710 mm
Max. support profile length: 1700 mm
For pitch 70 mm:
Max. surface profile length: 2000 mm
Max. support profile length: 2000 mm
For other pitches:
Max. surface profile length: 3000 mm
Max. support profile length: 3500 mm
drawing of Coarse Centrifuge Basket
______________________________________________________________________________________________

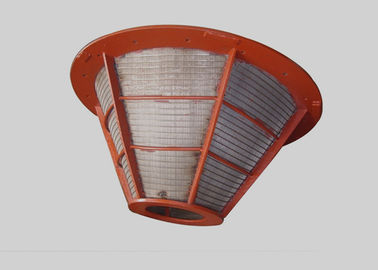

images of Coarse Centrifuge Basket
Application of Coarse Centrifuge Basket
