Product Details:
|
| Name: | Parabolic Screen Filter | Wire Type: | V Wire |
|---|---|---|---|
| Angle: | 90°,120°,140°,150°,160° Etc | Art Height: | 10mm,15mm,20mm,50mm Or Depend On You Size Of Screen Panel |
| Customization: | Support | Sample: | Available |
| High Light: | johnson wedge wire screens,johnson well screen |
||
Product Description
_______________________________________________________________________________________________

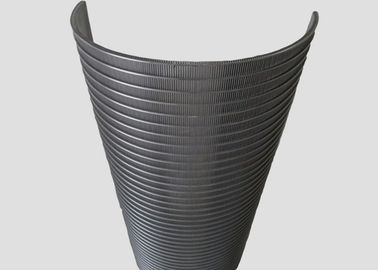

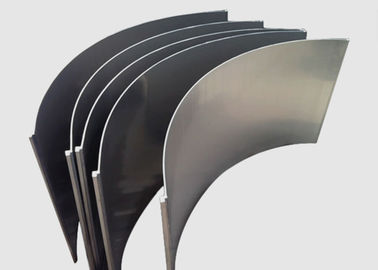

Parabolic Screen Filter For Beer Machine, Parabolic Sieve Johnson Wire Screen also known as the run down screen, side
hill screen, DSM screen, Parabolic screen, curve screen and so on.
The sieve bend screen could be custom made and designed according to the application. It is made by wrapping and welding
stainless steel V-shapStainless Steel V-wire curved bend shape wedge wire screen plateed profile wire cylindrically around
support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding. It is
used in water well, oil well, gas wells and for environmental well completions.
Specification of Parabolic Screen Filter
_______________________________________________________________________________________________
|
Dimension |
3 * 3 m, request |
|
Slot Size |
0.7 mm |
|
Width |
up tp 3000mm |
|
Length |
up to 3150mm |
|
Type |
Arc screen |
|
Wire size |
2*3.5 mm |
|
Support rod |
3*4.6 mm |
|
Wire shape |
V shape |
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Dimension: width up to 3000 mm
Length up to 3150mm
Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.
Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.
Special specification can be made according to your need.
|
Surface profiles |
Support profiles |
Min. Slot in mm |
Standard pitch in mm |
|
12s/12sl |
q25/q35 |
0.030 |
22 |
|
12s |
q35/10x3 |
0.100 |
35-100 |
|
18s |
q35/10x3/25x3 |
0.100 |
35-100/70 |
|
22s |
Q35/10x3/25x3/50x3 |
0.120 |
35-100/70 |
|
28s |
Q35/10x3/25x3/50x3 |
0.150 |
35-100/70 |
|
34s |
Q35/10x3/25x3/50x3 |
0.150 |
35-100/70 |
|
42s |
Q35/10x3/25x3/50x3 |
0.150 |
40-100/70 |
|
50s/50sc |
10x3/25x3/50x3 |
0.150 |
45-100 |
|
pitch = distance between support profiles |
|||
Dimensions
For pitch 22 mm:
Max. surface profile length: 710 mm
Max. support profile length: 1700 mm
For pitch 70 mm:
Max. surface profile length: 2000 mm
Max. support profile length: 2000 mm
For other pitches:
Max. surface profile length: 3000 mm
Max. support profile length: 3500 mm
drawing of Parabolic Screen Filter
______________________________________________________________________________________________
images of Parabolic Screen Filter
Application of parabolic screen filter
