20" L Well Sand Johnson Wire Screen With Male / Female Threaded End Closed

20" L Well Sand Johnson Wire Screen With Male / Female Threaded End Closed

    • 20" L Well Sand Johnson Wire Screen With Male / Female Threaded End Closed
    • 20" L Well Sand Johnson Wire Screen With Male / Female Threaded End Closed
    • 20" L Well Sand Johnson Wire Screen With Male / Female Threaded End Closed
    • 20" L Well Sand Johnson Wire Screen With Male / Female Threaded End Closed
  • 20" L Well Sand Johnson Wire Screen With Male / Female Threaded End Closed

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO
    Model Number: Johnson Wire Screen

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: waterproof paper inside,plastic film outside,then in wooden box
    Delivery Time: 7 work days
    Payment Terms: L/C, T/T, Western Union,paypal
    Supply Ability: 2000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Johnson Wire Screen Diamter: 2"-20"
    Length: 10mm-3000mm Application: WATER WELL
    Material: Stainless Steel WEDGE Wire Slot Size: 0.02mm~15mm
    Profile Wire: #63,#93,#118 Screen End: Male/female Threaded
    High Light:

    johnson wedge wire screens

    ,

    johnson well screen



    20" L Well Sand Johnson Wire Screen With Male / Female Threaded End Closed



    Production Description

    ___________________________________________________________________________________



    Thread Wedge Wire Screen is made by winding cold-rolled wire , approximately triangular in cross section , around a circular

    array of the longitudinal rods . The wire is attached to the rods by welding , producing rigid one-piece units having high strength

    characteristics at minimum weights.



    features of  johnson wire screen

    Application of johnson wire screen



    1. Keystone design for self cleaning and maximum flow optimizing productivity

    2. Various wire shapes and slot sizes for specific requirement

    3. Corrosion and erosion resistant

    4. Easy and fast installation minimizing product lead times

    5. Virtually maintenance-free



    1. Heavy oil , sand oil , light oil , SAGD, CBM , bitumen , thermal

    2. Water injection , bi-modal sand , carbonates , thin pay

    3. Horizontal , vertical , deviated oil and gas and water wells


    wrapped wire specification
    ___________________________________________________________________________________

    20" L Well Sand Johnson Wire Screen With Male / Female Threaded End Closed 0


    support rod specification

    ___________________________________________________________________________________

    20" L Well Sand Johnson Wire Screen With Male / Female Threaded End Closed 1


    Johnson  wire screen specification
    ___________________________________________________________________________________


    Technical patameter

    SIZE

    (inch)

    O.D

    (mm)

    SLOT

    (inch)

    LENGTH

    (m)

    Collapse

    Strength

    (psi)

    Tensile

    Weight

    (ton)

    Wire size

    (mm)

    RODS (mm)
    4 114.3 0.040 3 395 6 2.2*3.0 3.8mm/22
    4 114.3 0.040 3 395 6 2.3*3.0 3.8mm/22
    6 168.3 0.040 3 252 8 2.3*3.5 3.8mm/32
    8 219.1 0.010 3 399 10.5 3.0*5.0 3.8mm/48
    8 219.1 0.020 3 370 10.5 3.0*5.0 3.8mm/48
    8 219.1 0.040 3 323 10.5 3.0*5.0 3.8mm/48
    10 273.1 0.010 3 206 11 3.0*5.0 3.8mm/50
    10 273.1 0.020 3 191 11 3.0*5.0 3.8mm/50
    10 273.1 0.040 3 167 11 3.0*5.0 3.8mm/50


    screen size

    inside diameter

    outside diameter

    OD of female threaded end

    inch

    mm

    inch

    mm

    inch

    mm

    inch

    mm

    2

    51

    2

    51

    25/8

    67

    23/4

    70

    3

    76

    3

    76

    35/8

    92

    33/4

    95

    4

    102

    4

    102

    45/8

    117

    43/4

    121

    5

    127

    5

    127

    55/8

    143

    53/4

    146

    6

    152

    6

    152

    65/8

    168

    7 178
    8 203 8 203 85/8 219 91/4 235
    10 254 10 254 103/4 273 113/8 289
    12 305 12 305 123/4 324 133/8 340
    14 356 13-1/8 333 14 356
    16 406 15 381 16 406
    20 508 18-3/4 476 20 508

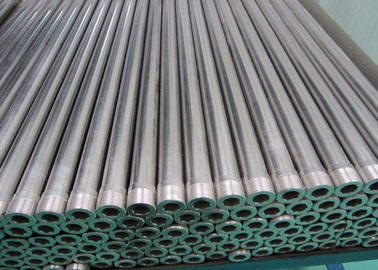

    Johnson wedge wire filter pipe pictures

    _______________________________________________________________________________________________



    20" L Well Sand Johnson Wire Screen With Male / Female Threaded End Closed 220" L Well Sand Johnson Wire Screen With Male / Female Threaded End Closed 3





    Package of Johnson wire Screens

    ___________________________________________________________________________________



    1: The johnson wire screen was winded by plastic bag.

    2: Winded by bubble bag and then fixed by wooden strip.

    3:The johnson wire screen winded by bubble bag.



    20" L Well Sand Johnson Wire Screen With Male / Female Threaded End Closed 4
