Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines

Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines

    • Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines
    • Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines
    • Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines
    • Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines
    • Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines
  • Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines

    Product Details:

    Place of Origin: Chine
    Brand Name: huihao
    Certification: ISO
    Model Number: insulation nails machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 sets
    Packaging Details: The nail making machine is with plastic bag to the container or as customers' requirement.
    Delivery Time: 10 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 30 machine per month
    Contact Now
    Detailed Product Description
    Nail Diameter: 1.8mm-6mm Nail Length: Less Than 300mm
    Production: 300-320pcs/min Dimention: 2000*1400*1400mm
    Transformer: 3kw Weight: 1.5tons
    High Light:

    stainless steel filter mesh

    ,

    self cleaning screen



    Automatic Insulation Nail Making Machine, 3mm Shipbuilding Weld Pin Machines



    1. Specification of insulation nail machine



    Technical Uint Z94-2.8NC Z94-3.7NC Z94-4.5NC Z94-5NC
    Origin of machine Made In China
    Dimensions of machine cm 130X110X130 150X130X140 200X150X160 210X150X160
    Weight kg 1000 1500 2100 2200
    Type of nails that
    can be produced
      Normal Nail
    Dia. Of Nail mm 1.2-2.8 1.8-3.4 2.8-4.5 3.4-5.0
    Length of Nail mm 9-50 30-75 50-105 80-125
    Out Put pcs/min. 350 320 260 200
    Speed rmp 1430 1430 1430 1430
    Power of Motor kw 2.2 3 4 4
    Availability of Raw Material   Normal Wire

    Technical Uint Z94-6NB WZ94-4NB UZ94-4.5NB
    Origin of machine   Made In China
    Dimensions of machine cm 360X205X214 200X170X170 244X152X121
    Weight kg 6500 2600 2000
    Type of nails that
    can be produced
      Normal Nail
    Dia. Of Nail mm 4.1-6 2.38-3.8 1.6-3.7
    Length of Nail mm 100-150 1.5"-2.5" 10-50
    Out Put pcs/min. 200 130 150
    Speed rmp 1430 960 1430
    Power of Motor kw 10 4 4
    Availability of Raw Material   Normal Wire



    2. introduce of insulation nails machine



    Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines 0

    The automatic nail making machine is used for producing vaious normal nails and special nails .And the assortment of our products is complete.It has wide applications,high speed,simple operation and reliable running.We can supply various machine fitting and necessay fine auxiliaris to you.



    The diameter of Q195 steel/Q235 steel is 6.5mm in the market. We can draw the steel wire by wire drawing machine. After get the diameter of steel wire you need, and then begin to make nails by automatic nail making machine.



    Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines 1

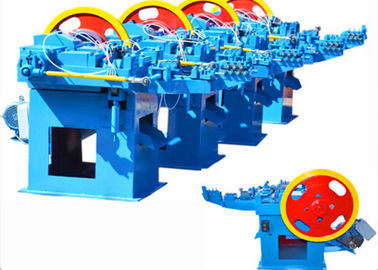

    3. pictures of insulation nails machine



    Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines 2Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines 3

    Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines 4Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines 5Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines 6

    4.advantage of insulation nails machine



    • The high speed,low noise
    • Advanced design,compact structure
    • Easy to use,safe operation
    • Full automatic,intelligent
    • Nail diameter and length are adjustable
    • Gold supplier,quality assurance



    5. quality control



    Installation and adjustment for nail making machine

    • Keep the distance for other machine
    • When install must attention lubrication, and keep the sliding smoothly
    • And check the part without slackening
    • The power line own enough conductive area and solid connection
    • Before working,the power cord to be protective, to ensure safety production

    Maintenance of nail making machine

    • Check the all control switch, keep on right location
    • The wire without rust
    • Over load and no wire welding is prohibited
    • Clean the machine at regular intervals

    Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines 7



    6. package



    The nail making machine is with plastic bag to the container or as customers' requirement.Delivery time of machine is 35days after you place order



    We can design the machine according to customer's different request, if you want to know more information about the machine, please feel free to contact us anytime!



    Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines 8



    Automatic Insulation Nail Making Machine , 3mm Shipbuilding Weld Pin Machines 9



    7.FAQ


    Q: Does your company is a factory or trading company?
    A.We are a factory and have do business more than 15 years.
    Q: what's the packing of the machine?
    A.In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box
    Q: What's the payment term?
    A.Usually by T/T ( 30% in advance, the balance against the copy of B/L)
    Q: Can I change the motor as my local voltage?
    A.We can change the voltage as your requirement, and there's no extra charge
    Q: How do your control quality?
    A.We have an inspection team to check the products at all stages of the manufacturing process

    Q:What parameter is necessary?

    A.The wire diameter,mesh size,mesh width ect are mainly needed, detailed information would be appreciated, Special requirement can be discussed
