|Place of Origin:||China|
|Model Number:||Self adhesive insulation pins|
|Minimum Order Quantity:||10000pcs for special size|
|Packaging Details:||500pcs insulation pins per carton, ot to be customer requirements|
|Delivery Time:||7 work days|
|Payment Terms:||L/C, D/P, T/T, Western Union,paypal|
|Supply Ability:||30000pcs per month|
|Base Size:||50x50mm||Total Thickness:||1mm|
Details of self adhesive insulation pins
HuiHao company manufacture and design all kind of insulation pins. seld adhesive insulation pins is one of insulation
fasteners used for fixing insulation material in HAVC system with Self locking washer. suitable for insulation materials such
as mineral wool, EPS, XPS and fibreglass.
the below tape is for common size of self adhesive insulation pins:
specification of self adhesive insulation pins
|square base materal||pin material||pin length||pin diameter||base size|
|mild steel||annealing steel, aluminum||15-280mm||10ga, 12ga, 14ga, 3mm||50mmx50mm|
|galvanized steel||annealing steel, aluminum||15-280mm||10ga, 12ga, 14ga, 3mm||50mmx50mm|
Special material for self adhesive insulation pins : Stainless steel 304,304L,316,306L etc.
(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0
Features of Self adhesive Insulation Pins
1. Environmentally-friendly, our product meet American standard, Japanese standard, European standard and German standard.
2. Light, dust free, fire retardant (A) and easy to install
3. Heat reflection, heat insulation, sound insulation, counter radiation, counter vibration.
4. During Summer: moisture barrier, sun protection, waterproof, energy saving consumed by cool air conditioning
5. During Winter: heat protection, remarkable energy saving consumed by warm air conditioning
6.Best results are obtained when ambient temperature is above 40° F at the time of application
7.A firm straight, forward pressure should be used. Do not twist
Application of self adhesive insulation pins
During construction, The bottom plate is glued to the surface of the air tube, and then the rock cotton plate is fixed after the
glue is cured. The top is stuck with a self locking washer to the rock cotton plane, press according to the thickness of the
rock cotton plate, and then bend the aluminum nail hook.
* Operation Temperatures: 15 to 25 ℃
* The Maximum strength of adhesive is achieved after 24 hours
* Insulation can be impaled immediately and firmly locked with fastening washer.
* Working Surface should be clean and dry, free of dust, grease, oil and any other loose matter.

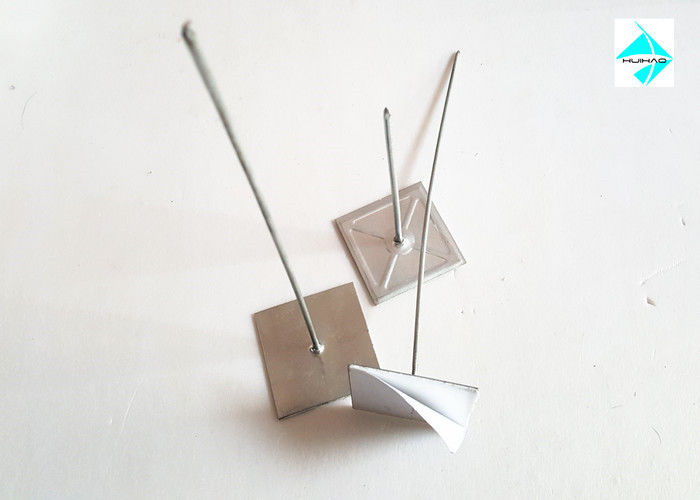

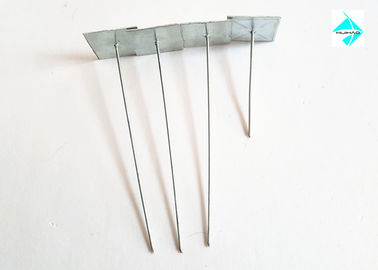

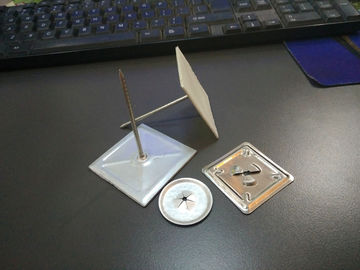

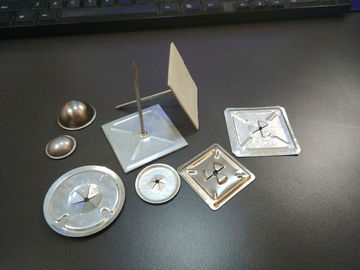

images of self adhesive insulation pins
