EN Standard Rock Wool Metal Perforated Base Insulation Anchor Pins 1/2"-10"L

Certification
China Huihao Hardware Mesh Product Limited certification
China Huihao Hardware Mesh Product Limited certification
Customer Reviews
Great! Place next order in near future

—— Joe Paletta

Many thanks for your service and the coil mesh is so beautiful.

—— Mélissa Tovar

Recieved the insulation pins, Everything looks good.

—— Ivan

I'm Online Chat Now

EN Standard Rock Wool Metal Perforated Base Insulation Anchor Pins 1/2"-10"L

EN Standard Rock Wool Metal Perforated Base Insulation Anchor Pins 1/2"-10"L
EN Standard Rock Wool Metal Perforated Base Insulation Anchor Pins 1/2"-10"L
EN Standard Rock Wool Metal Perforated Base Insulation Anchor Pins 1/2"-10"L EN Standard Rock Wool Metal Perforated Base Insulation Anchor Pins 1/2"-10"L EN Standard Rock Wool Metal Perforated Base Insulation Anchor Pins 1/2"-10"L EN Standard Rock Wool Metal Perforated Base Insulation Anchor Pins 1/2"-10"L EN Standard Rock Wool Metal Perforated Base Insulation Anchor Pins 1/2"-10"L

Large Image :  EN Standard Rock Wool Metal Perforated Base Insulation Anchor Pins 1/2"-10"L

Product Details:
Place of Origin: China
Brand Name: HUIHAO
Certification: ISO9001-2008
Model Number: Insulation Anchor Pins
Payment & Shipping Terms:
Minimum Order Quantity: 10000pcs
Packaging Details: 500pcs per cartons
Delivery Time: within 10days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 500000pcs per 30 days

EN Standard Rock Wool Metal Perforated Base Insulation Anchor Pins 1/2"-10"L

Description
Product Name: Insulation Anchor Pins Diameter: 14GA, 12GA, 10GA, 3MM
Material: Stainless Steel 304 Or 316, MILD STEEL BASE SIZE: 30X30, 40X40,50X50
Small Order: Available Customized: Acceptable
High Light:

duct insulation pins

,

insulation anchors



EN Standard Rock Wool Metal Perforated Base Insulation Anchor Pins 1/2"-10"L



common specification of perforated base insulation anchor pins



material

base size

pin diameter

pin length

SS, MS, GI S ,Alu

50mmx50mm

10ga, 3mm, 12ga, 14ga

13mm-254mm

SS, MS, GI S ,Alu

40mmx40mm

10ga, 3mm, 12ga, 14ga

13mm-254mm

SS, MS, GI S ,Alu

30mmx30mm

10ga, 3mm, 12ga, 14ga

13mm-254mm

SS, MS, GI S ,Alu

special

10ga, 3mm, 12ga, 14ga

13mm-254mm



Noted of perforated base insulation anchor pins



1.if the pin material is ss and ms, the nail must be anneled to ensure easy bending.special order for hardness material

2.if the material is mild steel, it must be surface tretament by zinc coated

3.small orders are available, customization orders are acceptable, free samples for common size

4.fixing accessores include self locking washer, dome caps washer , drive pins and adhesive. there are two methods for

fixing insulation anchor pins. one used adhesive stick up the perforated base insulation anchor pins on the wall. other

used drive pins fix the perforated base insulation anchor pins on the wall.



application of perforated base insulation anchor pins



spindle length 45mm: Used for 38mm .75# Fiberglass Duct Wrap
spindle length 63mm: Used for 50mm Fiberglass Rigid Board / Foam Board
spindle length 114mm: Used for 100mm Fiberglass Rigid Board / R-13

spindle length 165mm: Used for R-19 Fiberglass Batt Insulation

spindle length 240mm: Used for R-30 Fiberglass Batt Insulation
spindle length 317mm: Used for R-38 Fiberglass Batt Insulation

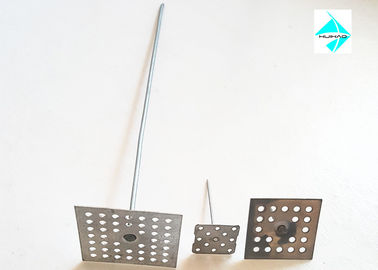

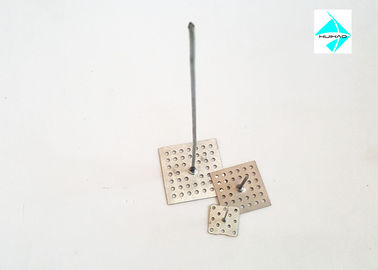

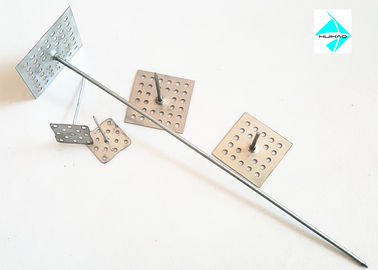

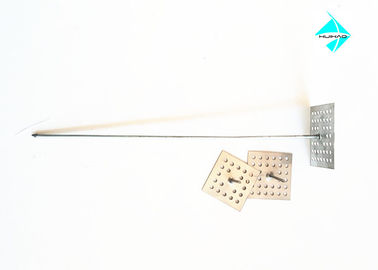

Images of perforated base insulation anchor pins



EN Standard Rock Wool Metal Perforated Base Insulation Anchor Pins 1/2"-10"L 0

EN Standard Rock Wool Metal Perforated Base Insulation Anchor Pins 1/2"-10"L 1



packages of perforated base insulation anchor pins



1. insulation pin length less than 65mm, 1000pcs per carton, 64 cartons per pallets.
2. insulation pins length 70mm-120mm, 500pcs per cartons,64 cartons per pallets.
3. insulation pins length 125mm-250mm, 250 pcs per cartons, 64 cartons per pallets.
4. as your requirement
