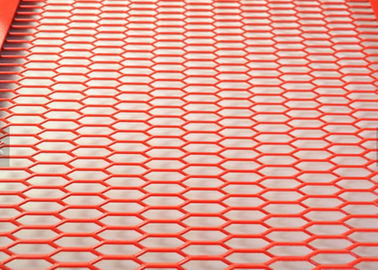

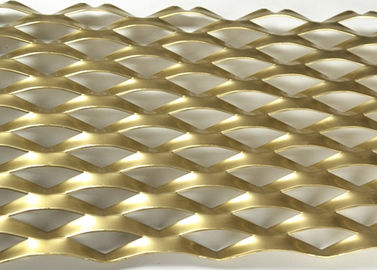

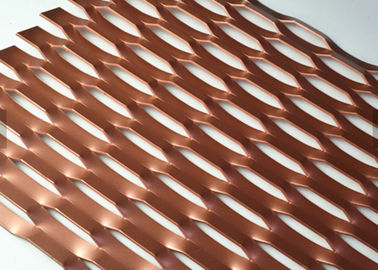

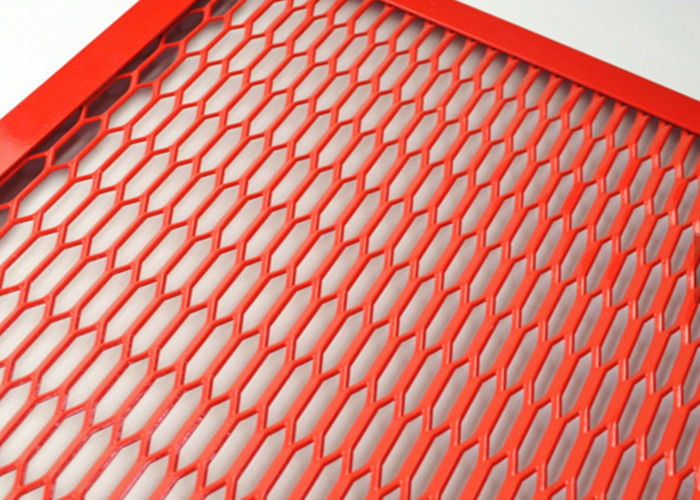

ISO9001 Spraying Aluminum Expanded Metal Mesh For Cab Truck Dividers

ISO9001 Spraying Aluminum Expanded Metal Mesh For Cab Truck Dividers

  • ISO9001 Spraying Aluminum Expanded Metal Mesh For Cab Truck Dividers
  • ISO9001 Spraying Aluminum Expanded Metal Mesh For Cab Truck Dividers
  • ISO9001 Spraying Aluminum Expanded Metal Mesh For Cab Truck Dividers
  • ISO9001 Spraying Aluminum Expanded Metal Mesh For Cab Truck Dividers
ISO9001 Spraying Aluminum Expanded Metal Mesh For Cab Truck Dividers
Product Details:
Place of Origin: China
Brand Name: HUIHAO
Certification: iso9001-2015
Model Number: EXPANDED METAL MESH
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meters
Packaging Details: 1.On pallet with waterproof cloth,the biggest width is 1500mm 2.In wooden case with waterproof paper 3.In carton box 4.In roll with woven bag,the biggest width is 3000mm 5.In bulk or In bundle
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 square meters per 28 days
Contact Now
Detailed Product Description
Material: Aluminum Thickness: 0.8mm-3mm
Size:: 1220*2440mm,1200*2400mm,1000*2000mm Or Customized Hole Type: Diamond,square Hole,scale Hole,gothic Etc.
High Light:

laser cut metal screens

,

perforated metal sheet



1.Introduction To The Expanded Metal meshScreen Facade :



expanded metal products consist of sheets or coils of solid metal that feature a diamond pattern that vary by gauge,

type of material and the size of the diamond. The term “expanded metal mesh” references to the way the metal is

simultaneously die-cut and expanded as it moves through the progressive dies on a press. This process allows it to

be expanded up to 10 times its original size, while losing up to 80 percent of its original weight per square foot and

retaining its form and rigidity.



2.Material of expanded metal mesh



1) for aluminum material :

- without treatment is ok

- anodized finish (colour can be silver, blue,green,yellow,pink,red,black,as you like)

- powder coated

- PVDF; (surface will be much more smooth, level off and glossy, it also has a much logner life span than

common treatment)



2) for carbon steel material :

- galvanized : electric galvanized, hot-dipped galvanized

- powder coated;

- spray paint



3.Specifications of expanded metal mesh


The size and color can be made according to the customer's requirement.



Aluminum - Standard
style Design Opening Size of Overall Percent
Size Strands Strands Thickness Open
(Inches) (Inches) in inches inches Area
  SWD LWD SWO LWO Width Thickness
1/2" .051 0.5 1.2 0.375 0.937 0.093 0.051 0.158 65
1/2" .081 0.5 1.2 0.375 0.937 0.093 0.081 0.186 60
3/4" .051 0.923 2 0.813 1.175 0.109 0.051 0.2 78
3/4".081 0.923 2 0.75 1.68 0.129 0.081 0.22 76
(Lt.)
3/4".081 0.923 2 0.75 1.68 0.165 0.081 0.3 69
(Lt.)
3/4".125 0.923 2 0.688 1.68 0.169 0.125 0.305 68
1-1/2".081 1.333 3 1.188 2.5 0.128 0.081 0.24 85
1-1/2".125 1.333 3 1.188 2.5 0.162 0.125 0.3 79

Aluminum - Flattened
style Design Opening Size of Overall Percent
Size Size Strands Thickness Open
(Inches) (Inches) in inches Inches Area
  SWD LWD SWO LWO Width Thickness
1/2".051 0.5 1.27 0.312 1 0.104 0.04 0.04 61
1/2".081 0.5 1.27 0.312 1 0.105 0.06 0.06 58
3/4".051 0.923 2.215 0.75 1.812 0.122 0.04 0.04 72
3/4".081
0.923

2.125

0.687

1.75

0.143

0.07

0.07

70
(Lt.)
3/4".081 0.923 2.125 0.687 1.75 0.181 0.07 0.07 63
(Hvy)
3/4".125 0.923 2.125 0.625 1.75 0.187 0.095 0.095 62
1-1/2".081 1.333 3.15 1.062 2.75 0.143 0.055 0.055 77
1-1/2".125 1.333 3.15 1 2.75 0.181 0.08 0.08 70



4. application of expanded metal mesh



Expanded metal’s strength, versatility and other beneficial properties enable it to be used for a wide range of industrial and

manufacturing applications, including:



Architectural interior partitions and barriers

Architectural for a buildings facade

Security fencing

Security mesh a/c covers

Window, door and skylight guards

Walkways, mezzanines & stairways

Air intake screens

Infill panels used in all industries

Cab/truck dividers

Concrete reinforcement

Drive and sidewalk grates

Light diffusers

Machine guards

Patio furniture



ISO9001 Spraying Aluminum Expanded Metal Mesh For Cab Truck Dividers 0
