2mm Perforated Round Hole Grip Strut Grating For Stair Platform EN Standard

2mm Perforated Round Hole Grip Strut Grating For Stair Platform EN Standard

    • 2mm Perforated Round Hole Grip Strut Grating For Stair Platform EN Standard
    • 2mm Perforated Round Hole Grip Strut Grating For Stair Platform EN Standard
    • 2mm Perforated Round Hole Grip Strut Grating For Stair Platform EN Standard
  • 2mm Perforated Round Hole Grip Strut Grating For Stair Platform EN Standard

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO
    Model Number: Grip Strut Grating

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Packaging Details: 1.packing on a pallet and then wrapped with plastic film, 2.wrapped with plastic film then put into wodden cases 3.Packaging as the customer's request
    Delivery Time: 10 work days
    Payment Terms: L/C, T/T
    Supply Ability: 1000pcs per 26 days
    Contact Now
    Detailed Product Description
    Material: 235 Thickness: 2mm-4mm
    Width: 180mm-400mm Length: Less Than 6 Meter



    2mm Perforated Round Hole Grip Strut Grating For Stair Platform EN Standard

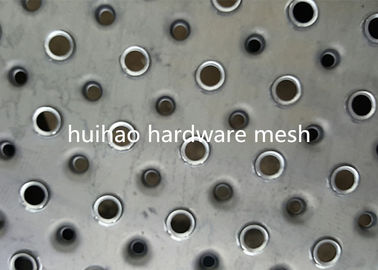

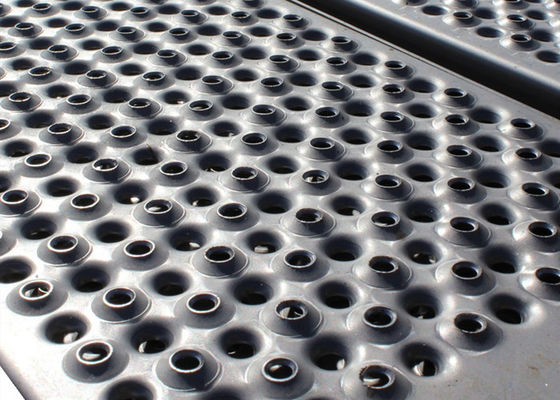

    1.Introduction: Perforated Round Hole Grip Strut Grating



    punching through CNC machine, then formed by processing a special mold. It is regarded as derivative prodcuts of perforated sheet. The fine positioning, precise stamping make the anti sked perforated plate more professional application in each anti-skid areas. It has many advateges including anti-rust, anti-skid, anti-corrosion, durable application and beautiful surface, and widely used in sewage treatment, power plant, snow , stair step, anti-skid pedal, and many other anti-skid areas.



    2.specification of Perforated Round Hole Grip Strut Grating



    Materials:Galvanized Steel (ASTM A-924-G90): 11 and 13 gauge.,

    Steel (ASTM A-1011 HRPO): 11 and 13 gauge.,5052-H32 Mill Finish Aluminum: 0.125".,

    304 or 316 Stainless Steel: 14 and 16 gauge
    Section width: 5", 7", 10", 12", 18", 24", 30".
    Channel height: 1 1 /2", 2", 3", 4".
    Holes number: 2, 3, 5, 6, 10, 13, 16.


    2 Holes 5" Width
    Material
    galvanized steel
    Aluminum
    Stainless
    Gauge
    13Ga.
    0.125”
    16Ga, 14Ga
    Channel Depth
    1-1/2, 2
    2
    2
    Width
    5
    5
    5"
    Hole number
    2 Holes
    2 Holes
    2 Holes
    3 Holes 7" Width, 5 Holes 10" Width, 6 Holes 12" Width, 10 Holes, 18" Width
    Gauge
    13Ga,
    11Ga
    0.125”
    Channel Depth
    1-1/2, 2
    1-1/2, 2, 3
    2
    Width
    7, 10, 12, 18
    7, 10, 12
    7, 10, 12, 18"
    Hole number
    3, 5, 6, 10 Holes
    3, 5, 6 Holes
    3, 5, 6, 10 Holes
    13 Holes, 24", 16 Holes, 30" Width
    Material
    galvanized steel
    galvanized steel
    Gauge
    11Ga.
    11Ga
    Channel Depth
    2, 3
    2, 3, 4
    Width
    Width
    24
    30
    Hole number
    13 Holes
    16 Holes



     3.Application of Perforated Round Hole Grip Strut Grating



    Because the plank has high anti-slip and resists rust and corrosion features, it is widely used at the rooftop of the train, industry flooring, platform of the traffic and offshore drilling, etc.



    2mm Perforated Round Hole Grip Strut Grating For Stair Platform EN Standard



    4. Features of Perforated Round Hole Grip Strut Grating


    Corrosion resistance, Rust resistance.
    Anti-slip resistance, Good air circulation.
    Good drainage performance, Easy to install and uninstall.
    High strength-to-weight performance,Durable and long lifespan.



    5. service



    A.Sample service
    Samples are free .we can send to you by DHL TNT Fedex UPS within 5-7 days

    B. Customized service
    Customized service is available for us . we can customized as your design and specification .

    C. After-sales service
    Our after-sales service start immediately after signing the contract.
    No matter FOB or CIF the price term . we would try our best to find a lowest freight cost for customers' reference.
    The third-party inspection always gets real and true data from us and we will send production photos to customers
    if there is no inspection.
    best to help customer arrange the shipment and customs clearance.
    Installation, maintenance and repair instructions with full information.
    3-8 years warranty depends to different products.
