Home ProductsInsulation Anchor Pins

Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

    • Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool
    • Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool
    • Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool
    • Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool
  • Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

    Product Details:

    Place of Origin: China
    Brand Name: Huihao
    Certification: ISO9001:2008
    Model Number: Insulation anchor pins

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: 1. length less than 65mm, 1000 pcs per carton, 64 cartons per pallet. 2.length less than 120mm, 500pcs per carton, 64 cartons per pallet. 3. others to be your requirements.
    Delivery Time: 7 work days
    Payment Terms: L/C, T/T, Western Union, paypal
    Supply Ability: 10,0000 pcs per week
    Contact Now
    Detailed Product Description
    Product Name: Ducting Accessories Material: Stainless Steel , Galvanized Steel, Aluminum
    Application: Fixing Rock Wool,Sound Absorbing Fabrics Pin Dia: 2.2,2.5,2.7mm, 3.0mm
    Base Size: 2''X2' In Common, Or As Request Sample: Available



    Ducting Accessories Insulation anchor pins and Hardware installers insulation material


    Introduction of insulation anchors pins

    Huihao is a insulation fasteners/insulation anchors manufacturing company, we produce all kinds of insulation pins and washers. Our products

    includes CD weld pins, Cup head weld pins, perforated base pins, self adhesive pins, Lacing Anchors, Quilting pins, all kinds of self locking

    washers, Dome caps


    Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

    1. Detail of the perforated base insulation anchor pins and seld adhesive insulation fixing pins

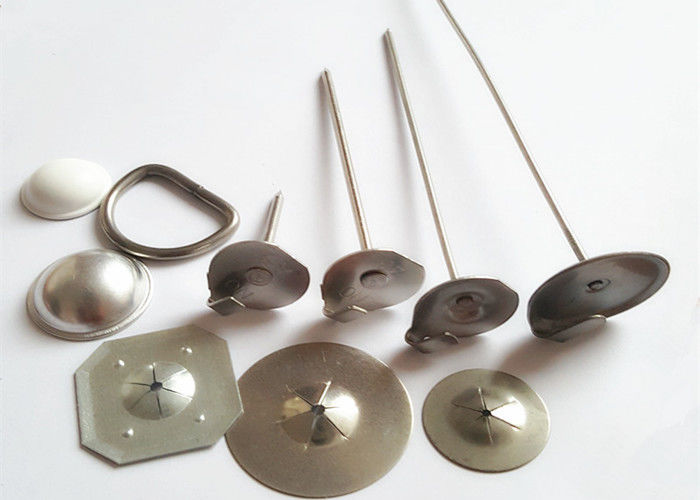

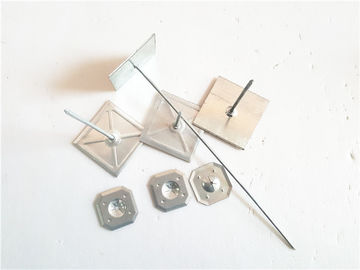

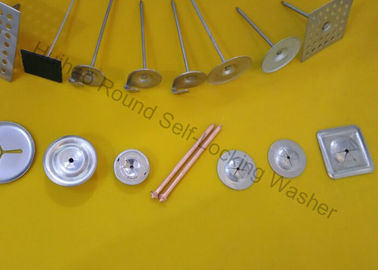

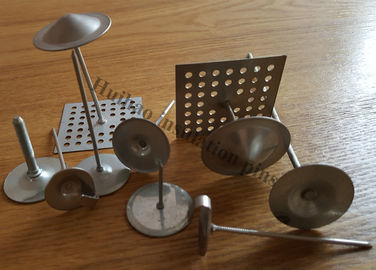

    photos of insulation anchor pins

    specification of insulation anchor pins

    Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool



    material

    pin dia

    base size

    length

    Gal steel ,ss , alu

    12ga ( 0.106 " )

    2''X2''

    1/2"

    Gal steel ,ss , alu

    12ga ( 0.106 " )

    2''X2''

    1"

    Gal steel ,ss , alu

    12ga ( 0.106 " )

    2''X2''

    1-5/8"

    Gal steel ,ss , alu

    12ga ( 0.106 " )

    2''X2''

    2"

    Gal steel ,ss , alu

    12ga ( 0.106 " )

    2''X2''

    3-1/2"

    Gal steel ,ss , alu

    12ga ( 0.106 " )

    2''X2''

    4 1/2"

    Gal steel ,ss , alu

    12ga ( 0.106 " )

    2''X2''

    5 1/2"

    Gal steel ,ss , alu

    12ga ( 0.106 " )

    2''X2''

    6"

    Gal steel ,ss , alu

    12ga ( 0.106 " )

    2''X2''

    8"

    Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool



    D C L
    14 ga (.080) 7/8" 2-1/2"
    14 ga (.080) 7/8" 4-1/2"
    12 ga (.106) 7/8" 2-1/2"
    12 ga (.106) 7/8" 4-1/2"
    Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool

    stick pin diameter

    base plate size

    insulatiion pin length

    10ga,12ga ,14ga

    2 square w / tape

    1

    10ga,12ga ,14ga

    2 square w / tape

    1 - 5 / 8 "

    10ga,12ga ,14ga

    2 square w / tape

    2


    10ga,12ga ,14ga

    2 square w / tape

    2 - 1 / 2"

    10ga,12ga ,14ga

    2 square w / tape

    3 - 1 / 2


    10ga,12ga ,14ga

    2 square w / tape

    4 - 1 / 2"

    10ga,12ga ,14ga

    2 square w / tape

    5 - 1 / 2

    10ga,12ga ,14ga

    2 square w / tape

    6 - 1 / 2"

    10ga,12ga ,14ga

    2 square w / tape

    8 "

    Ducting Accessories Insulation anchor pins With Washer Fit Fixing Rock Wool



    application: Stainless Steel 1" Cup Head Econo Point Weld Pins Use With All FG, RH, PBF, MF, CDMF Pinspotters.

    terms

    Econo Point Weld Pins diameter

    cupped washer size

    Econo Point Weld Pins Length

    HH-12

    2.7mm

    1-1/2

    Stnd up to 6

    HH-10

    3.4mm

    1-1/2

    Special Order


    ZG-14

    2.0mm

    1-3/16

    Up to 2-1/2

    ZG-12

    2.7mm

    1-3/16

    Stnd up to 6


    2.Common size and usages of Ducting Accessories Insulation anchor pins and Hardware :

    1 - 5/8": Used for 1-1/2" .75# Fiberglass Duct Wrap
    2 - 1/2": Used for 2" Fiberglass Rigid Board / Foam Board
    4 - 1/2": Used for 4" Fiberglass Rigid Board / R-13
    6 - 1/2": Used for R-19 Fiberglass Batt Insulation
    9 - 1/2": Used for R-30 Fiberglass Batt Insulation
    12 - 1/2": Used for R-38 Fiberglass Batt Insulation


    3.Advantages of the Ducting Accessories Insulation anchor Pins and Hardware


    · Suitable for all kinds of wall
    · High pull-off strength for a higher security of the system
    · Low thermal conduction addition value to avoid thermal bridge
    · Galvanized layer on the steel nail to protect the nail from alkali



    Welcome to inquiry and sample could be sent to your before ordered.
