Weld Type Stainless Steel Lace Ring Fit Removable Thermal Insulation Blankets

Weld Type Stainless Steel Lace Ring Fit Removable Thermal Insulation Blankets

    • Weld Type Stainless Steel Lace Ring Fit Removable Thermal Insulation Blankets
    • Weld Type Stainless Steel Lace Ring Fit Removable Thermal Insulation Blankets
    • Weld Type Stainless Steel Lace Ring Fit Removable Thermal Insulation Blankets
  • Weld Type Stainless Steel Lace Ring Fit Removable Thermal Insulation Blankets

    Product Details:

    Place of Origin: China
    Brand Name: Huihao
    Certification: ISO
    Model Number: 4x40mm lacing ring

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000pcs

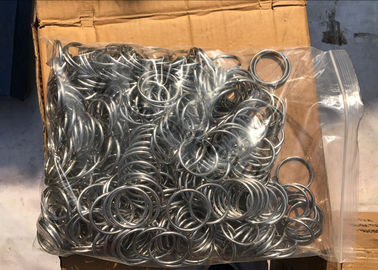

    Packaging Details: 500pcs per pp bag, 4 bogs per carton carton size:28x29x30cm
    Delivery Time: 5-8 work days
    Payment Terms: L/C, T/T, Western Union,paypal
    Supply Ability: within 10 days
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 Wire Diameter: 4mm
    Diameter: 40mm Type: ARC Weld
    Application: With Lacing Wire Fixing Insulation Blankets Store Size: 4mmx40mm



    Weld Type Stainless Steel Lacing Ring for Removable Thermal Insulation Blankets



    Specification of stainless steel lacing ring



    Material: stainless steel 304, 316, 201 and others



    Wire diameter
    inter diameter
    SWL(KG)
    BL(KG)
    3MM
    15MM-40MM
    162
    650
    4MM
    20MM-40MM
    250
    1000
    5MM
    25MM-65MM
    500
    2000
    6MM
    25MM-90MM
    800
    2700
    8MM
    30MM-100MM
    1250
    3200
    9MM
    30MM-90MM
    1500
    5000
    10MM
    40MM-100MM
    2125
    6200
    12MM
    50MM-140MM
    2500
    10000
    13MM
    55MM-160MM
    2875
    11500



    Application images of weld type stainless steel lacing ring for removable thermal insulation blankets.



    Weld Type Stainless Steel Lace Ring Fit Removable Thermal Insulation BlanketsWeld Type Stainless Steel Lace Ring Fit Removable Thermal Insulation Blankets

    Weld Type Stainless Steel Lace Ring Fit Removable Thermal Insulation Blankets



    Application of Lacing Ring System



    Lacing Washer can also be used with a Lacing Ring and a second L100 lacing washer, which are fastened to the

    insulation blanket with a tie wire. One advantage with the lacing system is the positive detention of the lacing wire.

    The insulation blanket can be loosened for access or repositioning, without having to worry about the lacing wire

    falling away from the hooks. It is also advantageous in maintaining the position of the lacing wire when insulating

    complex shapes.



    Weld Type Stainless Steel Lace Ring Fit Removable Thermal Insulation Blankets



    Insulation accessories include lacing washers, self loacing washers, cap dome washers lacing anchors, tie wire,

    insulation hangers, insulation pins, weld pins, cupped head pins, CD pins , speed clips, wall plug, insulation fixing pins.
