Module Deck Media Rubber Vibrating Screen Sieve Plate Fit Frequency Screens

Module Deck Media Rubber Vibrating Screen Sieve Plate Fit Frequency Screens

    • Module Deck Media Rubber Vibrating Screen Sieve Plate Fit Frequency Screens
    • Module Deck Media Rubber Vibrating Screen Sieve Plate Fit Frequency Screens
    • Module Deck Media Rubber Vibrating Screen Sieve Plate Fit Frequency Screens
    • Module Deck Media Rubber Vibrating Screen Sieve Plate Fit Frequency Screens
    • Module Deck Media Rubber Vibrating Screen Sieve Plate Fit Frequency Screens
  • Module Deck Media Rubber Vibrating Screen Sieve Plate Fit Frequency Screens

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO
    Model Number: Rubber Vibrating Screen Sieve Plate

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 pieces
    Packaging Details: pallets
    Delivery Time: 8 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1000pcs per 20 days
    Contact Now
    Detailed Product Description
    Material: Rubber Thickness: 20, 25 & 35mm
    Standard Size: 305mmx305mm Aperture Type: Square Round Slotted
    Small Order: Support



    Module Deck Media Rubber Vibrating Screen Sieve Plate Fit Frequency Screens



    Product Details of Module Deck Media Rubber Vibrating Screen Sieve Plate



    Some of the advantages that Module Deck Media Rubber Vibrating Screen Sieve Plate mats have over other screening

    media include;



     Fit most manufacturers' screens.

     Highly flexible - reduced pegging & blinding

     Highly flexible - improved stratification

     Reduces noise pollution

     Suitable for a wide variety of applications



    Module Deck Media Rubber Vibrating Screen Sieve Plate are ideally suited for high frequency screens with longitudinal

    support bars. They are effectively used in primary, secondary and tertiary screening applications as well as rotary

    trommel screens



    Hook Type

    Suitable for

    Light Duty

    3-10mm thickness

    Standard Duty

    15-35mm thickness

    Standard Recessed

    35mm, 70mm Apt & below

    Heavy Duty Recessed

    35mm, 70mm Apt & above

    End Tensioned

    20-40mm thickness

    Heavy Duty - non std hook

    25 & 35mm thickness



    Standard square hole of Module Deck Media Rubber Vibrating Screen Sieve Plate



    Standard specification of rubber vibrating screen sieve plate

    Size of aperture W

    Overall height BH

    Height of the screenin area SF

    Effective open screening area %

    7

    30

    11

    27.7

    8

    30

    10

    29

    9

    30

    18

    24

    10

    30

    12

    29

    11

    30

    16

    27

    12

    30

    17

    33

    13

    30

    17

    28

    14

    30

    19

    25

    15

    30

    19

    26

    16

    30

    17

    27

    18

    30

    20

    34

    18

    40

    24

    24

    19

    30

    19

    37

    20

    30

    20

    30

    22

    30

    20

    36

    24

    30

    20

    32

    25

    30

    22

    26

    27

    30

    21

    35

    30

    30

    19

    27

    32

    40

    30

    27

    34

    40

    30

    25

    35

    40

    30

    22

    36

    40

    40

    24

    38

    30

    20

    30

    40

    40

    31

    29

    42

    40

    31

    33

    45

    35

    30

    37

    50

    50

    30

    30

    55

    40

    40

    34

    60

    40

    40

    35

    63

    40

    40

    30

    65

    40

    40

    25

    65

    50

    50

    27

    67

    38

    38

    35

    70

    40

    40

    29

    80

    40

    40

    34



    Standard aperture sizes of the rubber Screen Panel - oblong, staggered mesh

    Size
    of aperture W1

    Size
    of aperture W2

    Overall
    height BH

    Height
    of the screening
    area SF

    Width
    of the screen

    Length
    of the screen

    Effective open
    screening area %

    2.2

    11.5

    30

    10

    300

    1000

    21.7

    2.5

    16

    30

    10

    300

    1000

    24.6

    3

    16

    30

    10

    300

    1000

    18.7

    4

    20

    30

    10

    300

    1000

    23

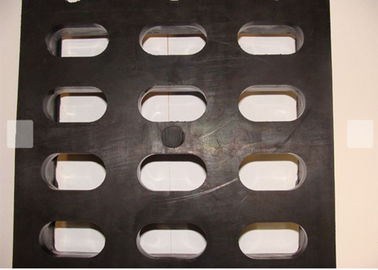

    images of Module Deck Media Rubber Vibrating Screen Sieve Plate


    Module Deck Media Rubber Vibrating Screen Sieve Plate Fit Frequency Screens
