Product Details:
|
| Product Name: | Insulation Anchor Pins | Material: | Stainless Steel/galvanized Steel |
|---|---|---|---|
| Base Size: | 35mm | Length: | 50-230mm |
| Material Thickness: | 0.7mm | Tube Dia: | M8 |
| High Light: | duct insulation pins,insulation anchors |
||

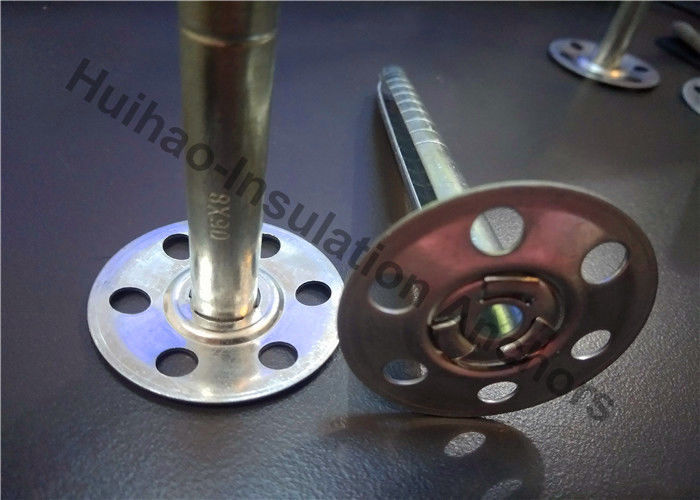

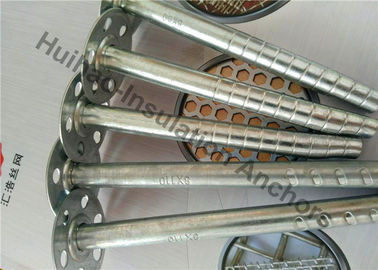

1.Product Description of rock wool Insulation Anchor pins
Material: Stainless steel/galvanized steel
Nail dimater :8mm
Nail length:50mm/60mm/80mm/90mm /110mm/140mm/ 170mm/230mm/300mm, etc
Plate size :30mm/35mm
Application: It is fixed on the position where there is significant wind-suction-force or if the height is more than 20m or if the finishing coat is tile etc
2.Specification of rock wool Insulation Anchor pins
| Pin | Pin | Pin Length | Plate Size | Plate Thickness | Packaging(carton) |
| 8*50 | 8mm | 50mm | 30/35mm | 0.7mm | 250pcs |
| 8*60 | 8mm | 60mm | 30/35mm | 0.7mm | 250pcs |
| 8*90 | 8mm | 90mm | 30/35mm | 0.7mm | 250pcs |
| 8*110 | 8mm | 110mm | 30/35mm | 0.7mm | 250pcs |
| 8*140 | 8mm | 140mm | 30/35mm | 0.7mm | 250pcs |
| 8*170 | 8mm | 170mm | 30/35mm | 0.7mm | 250pcs |
| 8*230 | 8mm | 230mm | 30/35mm | 0.7mm | 250pcs |
| 8*300 | 8mm | 300mm | 30/35mm | 0.7mm | 250pcs |
Highly versatile in a wide range of construction materials
Fix with hammer or SDS drill adapter
Fixes into concrete and masonry with tiny pilot hole
Fixes directly into lightweight block without pre-drilling
4.Usage of rock wool Insulation Anchor pins
70mm insulation fasteners for 20-40mm insulation panels
90mm insulation fasteners for 40-60mm insulation boards
110mm insulation anchors for 60-80mm insulation slabs
130mm insulation anchors for 80-100mm insulation slabs
150mm insulation fixings for 100-120mm insulation slabs
180mm insulation fixings for 120-150mm insulation boards
5.Applications of rock wool Insulation Anchor pins
To fix fire-resistant soft or pressure-resistant insulating materials, such as: Mineral / glass wool,Light building boards made
of wood wool ,Foam glass tiles.
Also suitable for: Polystyrene boards,Coir matting,Building materials,Concrete,Hollow blocks made from lightweight concrete,
Vertically perforated brick, Perforated sand-lime brick, Solid sand-lime brick,Natural stone with dense structure,Aerated concrete,
Solid brick made from lightweight concrete,Solid brick
6.Advantages of rock wool Insulation Anchor pins
Quick and simple hammerset installation saves work
No additional screws or nails. Also suitable for ceiling soffits
Fire-resistant according to DIN 4102 (class A1)
Fire protection report for the galvanised version with anchoring depth hef > 50 mm.
7. Packing & Delivery
Packaging of rock wool Insulation Anchor pins
20piece,50piece or 200 piece in one carton box ,then pallet,Within 15 days after confirm the order
