Perforated Base Metal Insulation Anchor Pins, Galvanized Insulation Wall Plugs

    • Perforated Base Metal Insulation Anchor Pins, Galvanized Insulation Wall Plugs
    • Perforated Base Metal Insulation Anchor Pins, Galvanized Insulation Wall Plugs
    • Perforated Base Metal Insulation Anchor Pins, Galvanized Insulation Wall Plugs
    • Perforated Base Metal Insulation Anchor Pins, Galvanized Insulation Wall Plugs
  • Perforated Base Metal Insulation Anchor Pins, Galvanized Insulation Wall Plugs

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO
    Model Number: Insulation anchor Pins

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: 20piece,50piece or 200 piece in one carton box ,then pallet,Within 15 days after confirm the order
    Delivery Time: 15 days
    Payment Terms: L/C, T/T, Western Union , paypal
    Supply Ability: 300000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Insulation Anchor Pins Material: Stainless Steel/galvanized Steel
    Tube OD: M8 Material Thickness: 0.7mm
    Length: 50mm-230mm Base Size: 30mm
    Small Order: Available Custom: Support



    Perforated Base Metal Insulation Anchor Pins ,Galvanized Insulation Wall Plugs





    Product Description of Perforated Base Metal Insulation anchor pins,Galvanized Insulation Wall Plugs



    Material: Stainless steel/galvanized steel
    Nail dimater :8mm
    Nail length:50mm/60mm/80mm/90mm /110mm/140mm/ 170mm/230mm/300mm, etc
    Plate size :30mm/35mm
    Application: It is fixed on the position where there is significant wind-suction-force or if the height is more than

    20m or if the finishing coat is tile etc



    Specification of Perforated Base Metal Insulation anchor pins,Galvanized Insulation Wall Plugs



    Pin Pin Pin Length Plate Size Plate Thickness Packaging(carton)
    8*50 8mm 50mm 30/35mm 0.7mm 250pcs
    8*60 8mm 60mm 30/35mm 0.7mm 250pcs
    8*90 8mm 90mm 30/35mm 0.7mm 250pcs
    8*110 8mm 110mm 30/35mm 0.7mm 250pcs
    8*140 8mm 140mm 30/35mm 0.7mm 250pcs
    8*170 8mm 170mm 30/35mm 0.7mm 250pcs
    8*230 8mm 230mm 30/35mm 0.7mm 250pcs
    8*300 8mm 300mm 30/35mm 0.7mm 250pcs

      advantages of Perforated Base Metal Insulation anchor pins,Galvanized Insulation Wall Plugs
    • Highly versatile in a wide range of construction materials
    • Fix with hammer or SDS drill adapter
    • Fixes into concrete and masonry with tiny pilot hole
    • Fixes directly into lightweight block without pre-drilling
    • Quick and simple hammerset installation saves work
    • No additional screws or nails. Also suitable for ceiling soffits
    • Fire-resistant according to DIN 4102 (class A1)
    • Fire protection report for the galvanised version with anchoring depth hef > 50 mm.

    Usage of Perforated Base Metal Insulation anchor pins,Galvanized Insulation Wall Plugs



    70mm insulation fasteners for 20-40mm insulation panels
    90mm insulation fasteners for 40-60mm insulation boards
    110mm insulation anchors for 60-80mm insulation slabs
    130mm insulation anchors for 80-100mm insulation slabs
    150mm insulation fixings for 100-120mm insulation slabs
    180mm insulation fixings for 120-150mm insulation boards



    Applications of Perforated Base Metal Insulation anchor pins,Galvanized Insulation Wall Plugs



    To fix fire-resistant soft or pressure-resistant insulating materials, such as: Mineral / glass wool,Light building boards made of

    wood wool Foam glass tiles,Also suitable for: Polystyrene boards,Coir matting,Building materials,Concrete,Hollow blocks made

    from lightweight concrete,Vertically perforated brick, Perforated sand-lime brick, Solid sand-lime brick,Natural stone with dense

    structure,Aerated concrete,Solid brick made from lightweight concrete,Solid brick

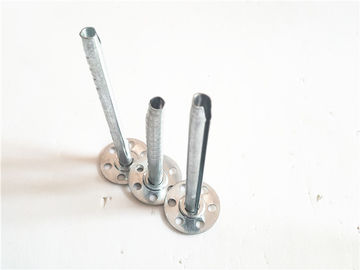

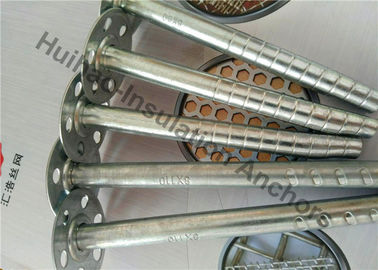

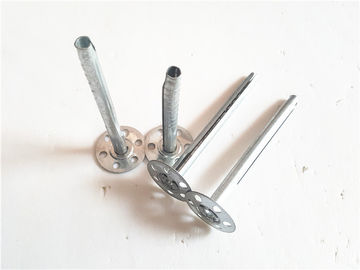

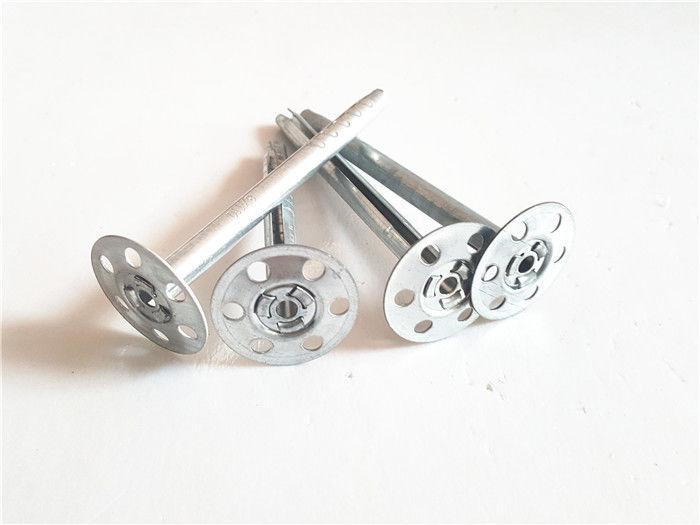

    Images of insulation anchor pins, galvanized insulation wall plug



    Perforated Base Metal Insulation Anchor Pins, Galvanized Insulation Wall Plugs


    Perforated Base Metal Insulation Anchor Pins, Galvanized Insulation Wall Plugs
