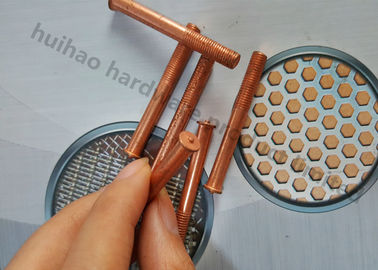

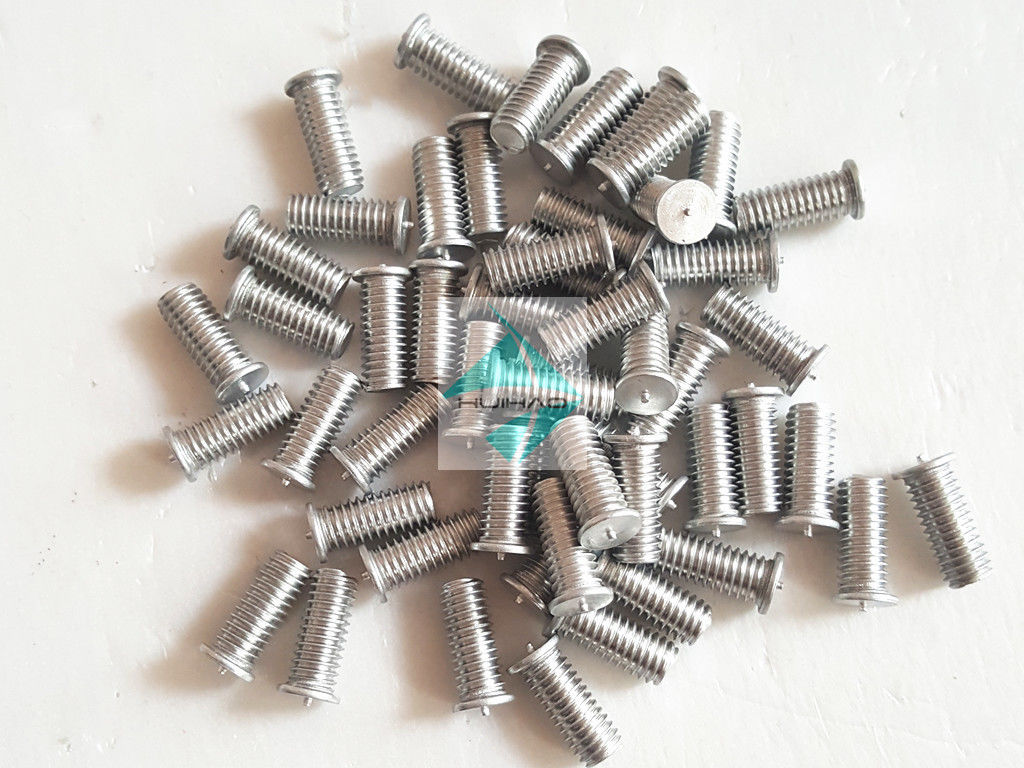

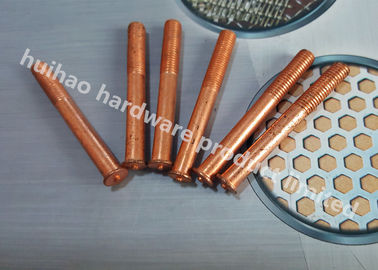

Product Details:
|
| Product Name: | Weld Studs | Material: | Mild Steel |
|---|---|---|---|
| SIZE: | M3-M8 | Length: | Less Than 80mm |

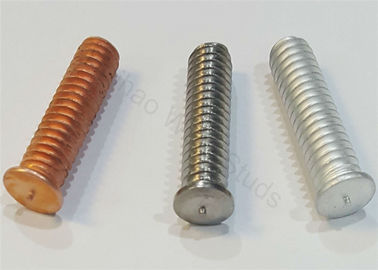

| Surface Treatment: | Copper Plated Or Zinc Coating | Grade: | 4.8,A2-70 |
| High Light: | copper plated insulation pins,threaded stud welder |
||
all diamensions are in millimeters(mm)unless otherwise stated.other lengths are subject to agreement inch size products are available.
|
d1 |
l1 |
d3 |
d4 |
l3 |
h |
n |
a |
|
m3 |
6-50 |
4.5 |
0.6 |
0.55 |
0.7-1.4 |
1.5 |
3 |
|
m4 |
6-50 |
5.5 |
0.65 |
0.55 |
0.7-1.4 |
1.5 |
3 |
|
m5 |
5-65 |
6.5 |
0.75 |
0.80 |
0.8-1.4 |
2.0 |
3 |
|
m6 |
6-90 |
7.5 |
0.75 |
0.80 |
0.8-1.4 |
2.0 |
3 |
|
m8 |
10-100 |
9.0 |
0.75 |
0.85 |
0.8-1.4 |
3.0
|
3
|
CD studs is in use of Car manufacturing , Train Stations ,Industrial building ,Household Adornment ,high stress environment such as off road construction , large expansion bridges , skyscrapers , power plant ,military defense vehicles ,and equipment in high temperature environment .
