|Type:||Metal Insulation Anchors||Length:||60-230mm|
|Fire Rate:||A||Small Order:||Acceptable|
metal insulation anchor performance parameters are based on the JG/T366-2012 standard:
1. The nominal diameter of the Pin disc should not be less than 30mm and the tolerance is 1.0mm.
2.The nominal diameter of the expansion sleeve shall not be less than 8 mm and the tolerance shall be ± 0.5 mm.
3. Anchor bolt tensile bearing capacity standard value Fk≥0.60
4. insulation anchor pin's Disc pullout standard value Frk≥0.50
5. Fire-proof level: A
|Pin Size||Pin Dia||Pin Length||Plate Size||Plate Thickness||Pin Weight|
|M8x50||8mm||50mm||30mm / 35mm||0.7mm||10.2g|
|M8x60||8mm||60mm||30mm / 35mm||0.7mm||11.2g|
|M8x90||8mm||90mm||30mm / 35mm||0.7mm||14.8g|
|M8x110||8mm||110mm||30mm / 35mm||0.7mm||17.3g|
|M8x140||8mm||140mm||30mm / 35mm||0.7mm||20.8g|
|M8x170||8mm||170mm||30mm / 35mm||0.7mm||24.4g|
|M8x230||8mm||230mm||30mm / 35mm||0.7mm||34.4g|
The number of installations: 1-10 layers average 6 / m2, 11-20 layers average 7 / square meters 21-26 layers 9 / m2.
Any single block with an area greater than 0.1m2 must be anchored, depending on the shape and site conditions;
the density of the anchor should be increased around the angle of the sun, under the mouth, and around the edge of the hole.
The distance is not more than 300mm, from the edge of the base. Not less than 60mm
features of metal insulation anchors/ insulation fixing pins
Application of metal insulation anchor/ insulation fixing pins
|iinsulation fixing suit for||
·Natural stone with dense structure
·Solid brick ·Solid sand-lime brick
·Solid block made from light weight concrete
·Vertically perforated brick
·Perforated sand-lime brick
|metal insulation anchor fixing for||
·Soft and pressure-resistant insulating material, e.g.
·Glass wool ,Rock wool
·Lighting building boards made of wood wool

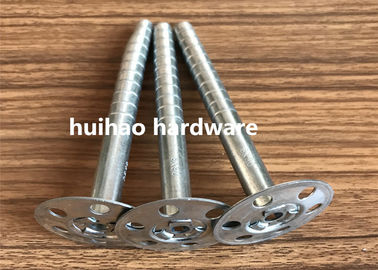

pictures of metal insulation anchor/ insulation fixng
