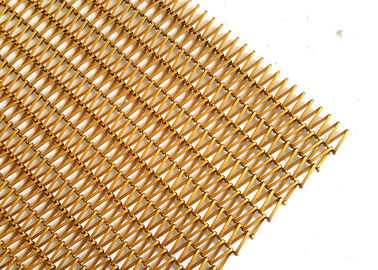

Rose Gold Transit Spiral Weave Wire Mesh For Shop Drapery Divider W1.2m X L 3m

Rose Gold Transit Spiral Weave Wire Mesh For Shop Drapery Divider W1.2m X L 3m

    • Rose Gold Transit Spiral Weave Wire Mesh For Shop Drapery Divider W1.2m X L 3m
    • Rose Gold Transit Spiral Weave Wire Mesh For Shop Drapery Divider W1.2m X L 3m
    • Rose Gold Transit Spiral Weave Wire Mesh For Shop Drapery Divider W1.2m X L 3m
    • Rose Gold Transit Spiral Weave Wire Mesh For Shop Drapery Divider W1.2m X L 3m
    • Rose Gold Transit Spiral Weave Wire Mesh For Shop Drapery Divider W1.2m X L 3m
  • Rose Gold Transit Spiral Weave Wire Mesh For Shop Drapery Divider W1.2m X L 3m

    Product Details:

    Place of Origin: China
    Brand Name: huihao
    Certification: ISO
    Model Number: Spiral Weave Mesh

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pieces
    Packaging Details: 1. water-proof paper inside then with weaving bag or bubble,at last wooden case 2. according to your requirments,
    Delivery Time: 10 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 pcs per 20 days
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 Wire Diameter: 0.9mm Aperture: 2mm
    Chain Standard: 16 Or 12 Otal Width With Chain: 790mm
    Bars Diameter: 8mm Spacing: 500mm



    Transit Spiral Weave Architectural Wire Mesh For Shop Drapery And Space Divider



    Description of the Transit Spiral Weave Architectural Wire Mesh



    Transit Spiral Weave mesh is one of metal drapery, same as coil mesh drapery and ring mesh curtains. usually this

    mesh with frame for easy to installation. the frame include aquare tube , round tube and U type profiles. aluminum

    alloy is best suitable for soiral weave mesh.



    Transit Spiral Weave Architectural Wire Mesh, also called spiral weave mesh, is a type of decorative metal fabric.

    It is manufactured with super quality straight or pre-crimped stainless steel wire with colored surface treatment.

    The structure of decorative belt mesh is spiral wire and cross rod wire with woven on corrugated pins or welded

    on edges.



    Specifications of Transit Spiral Weave Architectural Wire Mesh



    Transit Spiral Weave Architectural Wire Mesh can be classified into four main types according to the cross rod and spiral wire.

    1. Flat wire crimped cross rod.

    2. Round wire crimped cross rod.

    3. Flat wire straight cross rod.

    4. Round wire straight cross rod.

    5. Double wire type.

    6. Double balanced weave type.

    Specification Coding

    Nominal Belt Thickness
    (mm)

    Lateral
    Pitch of Coil wire(mm)

    Coil Wire Dia. (mm)

    Crimped Cross Wire Pitch down length (mm)

    Crimped Cross Wire Dia (mm)

    18-16-16-16

    7.7

    16.94

    1.63

    19.05

    1.63

    18-14-16-14

    8.9

    16.94

    2.03

    19.05

    2.03

    30-17-24-17

    7.3

    10.16

    1.42

    12.7

    1.42

    30-16-24-16

    6.7

    10.16

    1.63

    12.7

    1.63

    42-18-36-18

    6.0

    7.26

    1.22

    8.47

    1.22

    42-17-36-17

    6.0

    7.26

    1.42

    8.47

    1.42

    42-16-36-16

    6.4

    7.26

    1.63

    8.47

    1.63

    48-17-48-17

    6.1

    6.35

    1.42

    6.35

    1.42

    48-16-48-16

    6.4

    6.35

    1.63

    6.35

    1.63

    60-20-48-18

    4.0

    5.08

    0.91

    6.35

    1.22

    60-18-48-18

    5.2

    5.08

    1.22

    6.35

    1.22

    60-18-60-18

    5.6

    5.08

    1.22

    5.08

    1.22



    Transit Spiral Weave Architectural Wire Mesh application:



    Rose Gold Transit Spiral Weave Wire Mesh For Shop Drapery Divider W1.2m X L 3m

     Transit Spiral Weave Architectural Wire Mesh is used as curtain wall, facades and Handrail and balustrade. becase:

    • resistant to acid, alkaline, chemical corrosion, abrasion,
    • smooth conveying surface,
    • long service life
    • carry light to heavy loads
    Rose Gold Transit Spiral Weave Wire Mesh For Shop Drapery Divider W1.2m X L 3m Transit Spiral Weave Architectural Wire Mesh is used as drapery/ ceiling decoration in Restaurants, hotels, concert halls, cafes, bridal shops, exhibition hall etc. Because it is beautiful, fireproof, and easy to clean.
    Rose Gold Transit Spiral Weave Wire Mesh For Shop Drapery Divider W1.2m X L 3m

    Transit Spiral Weave Architectural Wire Mesh widly used as room divider,partition wall and sushine screen, because  versatility, unique texture, variety of colors, durability and flexibility





    drawing of the Transit Spiral Weave Architectural Wire Mesh



    Rose Gold Transit Spiral Weave Wire Mesh For Shop Drapery Divider W1.2m X L 3m



    why choose Huihao company?



    1.Quality Assurance:

    • advanced weaving net machinery;
    • ISO9001-2008 quality management system certification;
    • SGS test report and official material report;
    • separate quality inspection department

    2.timely delivery:

    • Have a large inventory for common size of Transit Spiral Weave mesh
    • Provide the fastest transportation method and economic transportation cost

    3.Product customization:

    • Have a design team, provide cad drawings for reference
    • Experienced installation, able to provide the best solution according to the customer's installation environment;
    • complete installation accessories

    4.Services:

    • pre-sales consulting and after-sales service team, no worries;
    • 24-hour hotline service;
    • make of document services and assistance to customers clearance

    5.Order:

    • Receive small orders;
    • provide samples and make molds;
    • accept 100% letter of credit at sight payment method
