Product Details:
|
| Material: | Stainless Steel | Wire Diameter: | 0.5mm-2.5mm |
|---|---|---|---|
| Aperture: | 5mm-20mm | Width: | Less Than 4 Meter |
| Small Order: | Available | Customized: | Support |
| High Light: | woven wire screen mesh,architectural steel mesh |
||

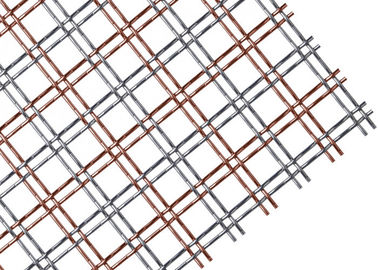

tchnical support of Antique Brass Architectural Woven Metal Mesh Fabric with Stainless Steel Flat Wire
1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.
Types of Architectural weave mesh fabric
 |
Name: | Decorative Antique Brass Crimped Falt Wire Mesh24''*48''-01 | |
| Material: | Antique Brass | ||
| Typical Uses: | Cabinet Screen, Speaker Grills | ||
| Mesh: | 5*5 per inch | Opening Size: | 0.1250 inches |
| 5*5 per 2.54cm | 3.18mm | ||
| Weight: | 2.50 lb/sqf | Opening Area: | 28% |
| 12.21kg/sqm | |||
| Weave Type: | Flat-wire | Surface Finish Coating: | Antique Brass |
|
Name: | Decorative Antique Brass Crimped Falt Wire Mesh24''*48''-02 | |
| Material: | Antique Brass | ||
| Typical Uses: | Cabinet Screen, Speaker Grills,Decorative Mesh | ||
| Mesh: | 2*2 per inch | Opening Size: | 0.4200 inches |
| 2*2 per 2.54cm | 10.67mm | ||
| Weight | 1.13 lb/sqf | Opening Area: | 69% |
| 5.49kg/sqm | |||
| Weave Type: | Flat-wire | Surface Finish Coating: | Antique Brass |
|
Name: | Decorative Antique Brass Crimped Falt Wire Mesh24''*48''-03 | |
| Material: | Antique Brass | ||
| Typical Uses: | Cabinet Screen, Speaker Grills,DecorativeMesh | ||
| Mesh: | 1*1 per inch | Opening Size: | 0.9240 inches |
| 1*1 per 2.54cm | 23.47mm | ||
| Weight | 0.50 lb/sqf | Opening Area: | 85% |
| 2.445.49kg/sqm | |||
| Weave Type: | Flat-wire | Surface Finish Coating: | Antique Brass |
|
Name: | Decorative Antique Brass Crimped Falt Wire Mesh24''*48''-04 | |
| Material: | Antique Brass | ||
| Typical Uses: | Cabinet Screen, Speaker Grills,Decorative Mesh | ||
| Mesh: | 2.5*2.5 per inch | Opening Size: | 0.2600 inches |
| 2.5*2.5 per 2.54cm | 6.60mm | ||
| Weight | 1.50 lb/sqf | Opening Area: | 48% |
| 7.32kg/sqm | |||
| Weave Type: | Flat-wir | Surface Finish Coating: | Antique Brass |
Crimping Methods
Each available Wire Mesh Pattern utilizes one of three basic wire crimping methods:
Application of weave mesh fabric
Wire Mesh breathability is often practical for entertainment center and custom built-in creations, where any range of electronic
equipment may require air flow when recessed onto a shelf, to avoid overheating during use. For additional accent, one may
choose to place any choice of fabric behind the mesh insert to further add character to any creation and still allow air flow through
the framed opening, while not allowing full visual access to what may be stored behind a door.
