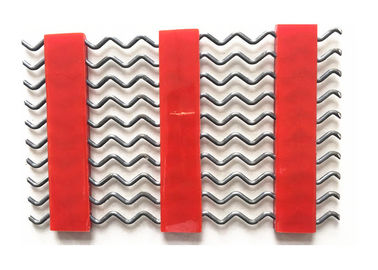

High Carbon Steel H Style Woven Self Cleaning Mesh With Polyurethane Band

    • High Carbon Steel H Style Woven Self Cleaning Mesh With Polyurethane Band
    • High Carbon Steel H Style Woven Self Cleaning Mesh With Polyurethane Band
    • High Carbon Steel H Style Woven Self Cleaning Mesh With Polyurethane Band
  • High Carbon Steel H Style Woven Self Cleaning Mesh With Polyurethane Band

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO9001-2008
    Model Number: Self Cleaning Mesh

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pieces
    Packaging Details: carton box and wooden case (also as customer's request)
    Delivery Time: 5-8 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 700 pieces per 20 days
    Contact Now
    Detailed Product Description
    Material: High Carbon Steel Length: 1880mm
    Width: 1220mm Band Width: 35mm



    High Carbon Steel HStyle Woven Self Cleaning Mesh With Polyurethane Band


    inventory List of High Carbon Steel M Style Woven Self Cleaning Mesh With Polyurethane Band

    • material: 65mn steel, 45 mn steel

    • polyurethane band size:35mm width 20mm thickness

    • polyurethane band number per panel: 7 or 5

    • aperture type: H style

    • hook type:shrouded hook edge ,1.5mm thickness galvanized steel

    length

    width

    aperture

    wire diameter

    stringer number

    1880mm

    1220mm

    20mm

    5mm

                    5

    1880mm

    1220mm

    18.5mm

    5mm

                    5

    1880mm

    1220mm

    16mm

    5mm

                    5

    1880mm

    1220mm

    12.5mm

    3.15mm

                    7

    1880mm

    1220mm

    11.2mm

    3.15mm

                    7

    1880mm

    1220mm

    10mm

    3.15mm

                    7

    1880mm

    1220mm

    8mm

    2.5mm

                    7


    The H mesh of self cleaning screen mesh is made of several horizonal and parallel crimped wires. It looks like the herring
    bone pattern, which can offer better sizing control than D mesh and W mesh by eliminating more flats and elongates.

    tolerance scope of High Carbon Steel H Style Woven Self Cleaning Mesh With Polyurethane Band

    • Aperture error:≤3%,which is better than International Standards;
    • Wire diameter error: ±3%;
    • Diagonal error:≤9mm every2m

    hook types of High Carbon Steel H Style Woven Self Cleaning Mesh With Polyurethane Band

    High Carbon Steel H Style Woven Self Cleaning Mesh With Polyurethane Band

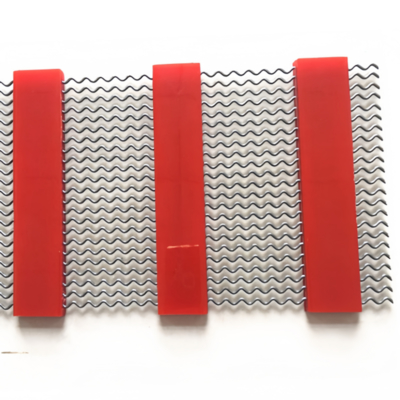

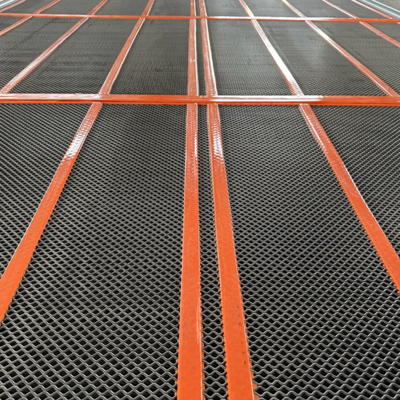

    images of High Carbon Steel H Style Woven Self Cleaning Mesh With Polyurethane Band

    High Carbon Steel H Style Woven Self Cleaning Mesh With Polyurethane Band
