zinc Coated Steel Insulation Stud Welding Pins with Capacitor Discharge Welder

zinc Coated Steel Insulation Stud Welding Pins with Capacitor Discharge Welder

    • zinc Coated Steel  Insulation Stud Welding Pins with Capacitor Discharge Welder
    • zinc Coated Steel  Insulation Stud Welding Pins with Capacitor Discharge Welder
    • zinc Coated Steel  Insulation Stud Welding Pins with Capacitor Discharge Welder
    • zinc Coated Steel  Insulation Stud Welding Pins with Capacitor Discharge Welder
    • zinc Coated Steel  Insulation Stud Welding Pins with Capacitor Discharge Welder
  • zinc Coated Steel  Insulation Stud Welding Pins with Capacitor Discharge Welder

    Product Details:

    Place of Origin: China
    Brand Name: Huihao
    Certification: ISO
    Model Number: insulation stud welding pins

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: CD Weld Studs / Flanged Stud Welding Nails1. 500pcs per bag, 10 bags per carton. 64 cartons per pallet. 2. to be your requirements.
    Delivery Time: 5-8 work days
    Payment Terms: L/C, T/T, Western Union,PAYPAL
    Supply Ability: 500000PCS per 20 Days
    Contact Now
    Detailed Product Description
    Name: CD Insulation Stud Welding Pins Finished: Copper Coating Or Galvanized Steel
    Diameter: 10 Gauge / 12Gauge / 14 Gauge / 3mm Length: As Your Requirement
    Material: Mild Steel Or Stainless Steel Or Aluminum



    Zinc Coated Steel Insulation Stud Welding Pins with Capacitor Discharge Welder



    >>> Introduction To The CD Insulation Stud Welding Pins



    CD Insulation Weld Pins are used for attaching insulation to various metals, with the use of a CD welder. After the pin is

    welded in place, the insulation is impaled on the pin and secured with a self-locking washer.



    10 Ga. (0.135") CD Insulation stud Welding Pins



    Material Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order
    Diameter 10 Ga. (0.135")
    Length 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" 9"



    12 Ga. (0.105") CD Insulation stud Welding Pins



    Material Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order
    Diameter 12 Ga. (0.105")
    Length 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8"



    14 Ga, 2mm (0.080") CD Insulation stud Welding Pins



    Material Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order
    Diameter 14 Ga, 2mm (0.080")
    Length 3/4" 1" 1-1/2" 2" 2-1/2" 3"



    3mm CD Insulation stud Welding Pins



    Material Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order
    Diameter 3mm
    Length 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm



    ---> Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.

    ---> Nail point is standard - available with "blunt end" as special order.



    >>> Application Of The Capacitor Discharge (CD) Insulation stud Welding Pins



    CD stud Welding Pins are used specifically by the shipbuilding / offshore industry such as Cable, Pipe and Trapeze Hangers,

    Tubing Spacers, Stack Studs and Navy Weld Studs.

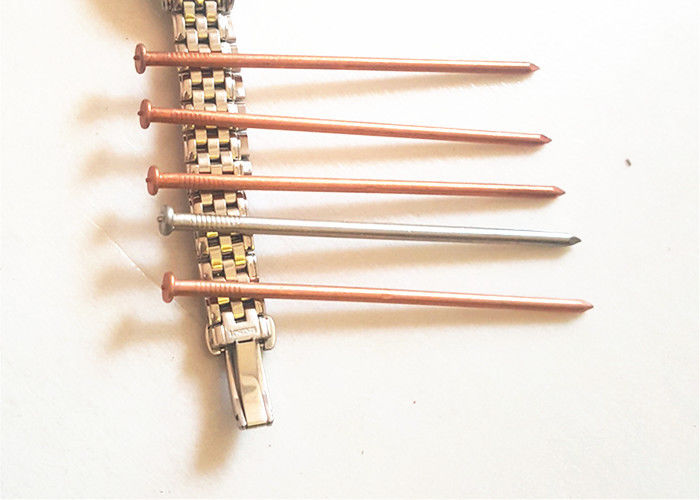

    Huihao copper plated 3mm x 65mm CD Weld Pins Suited For Stud Welding Systems



    >>> Package

    1. 500pcs per bag, 10 bags per carton. 64 cartons per pallet. 2. to be your requirements.



    >>> Delivery

    Sample;DHL/EMS/UPS/TNT/EXPRESS
    Large Order:we recommand you by SEA ,or by AIR if in an emergency.
