Ducting Square Self Locking Washer For Insulation Nails Or Insulation Anchor

Ducting Square Self Locking Washer For Insulation Nails Or Insulation Anchor

    • Ducting Square Self Locking Washer For Insulation Nails Or Insulation Anchor
    • Ducting Square Self Locking Washer For Insulation Nails Or Insulation Anchor
    • Ducting Square Self Locking Washer For Insulation Nails Or Insulation Anchor
    • Ducting Square Self Locking Washer For Insulation Nails Or Insulation Anchor
    • Ducting Square Self Locking Washer For Insulation Nails Or Insulation Anchor
  • Ducting Square Self Locking Washer For Insulation Nails Or Insulation Anchor

    Product Details:

    Place of Origin: China
    Brand Name: huihao
    Certification: ISO9001-2008
    Model Number: Square Slef Locking Washer

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: Speedfix Square Slef Locking Washer packing details: 1000pcs per pp bag, 5 pp bags per carton or to be your request
    Delivery Time: 5-8 work days
    Payment Terms: L/C, T/T, Western Union, paypal
    Supply Ability: 500000pcs within 15 days
    Contact Now
    Detailed Product Description
    Product Name: Slef Locking Washer Type: Square
    Washer Size: 30mmx30mm, 40mmx40mm, 50mmx50mm Application: Fixing Insulation Pins, Anchors, Hangers And Fasteners
    Thickness: 0.4MM-0.8MM Center Hole: For 14ga ,12ga,10ga Pins



    Ducting Square Self Locking Washers For Insulation Nails Or Insulation Anchor



    Self-locking washers are designed to be used with weld pins, insulation-hangers, lacing anchors, etc.

    Sound Acoustic Solutions stocks self-locking washer that are manufactured primarily of Mild Steel, with Standard

    Stainless and Aluminum sizes available.

    We offer self-locking washers in various shapes and sizes; square or round.

    These insulation washers mount on many types of insulation fasteners for holding insulation material in place.

    The gauge of the pin, or diameter, should match the fastener it is being affixed onto.



    Specifications of square self locking washers



    Style

    SC250

    SC150

    OC125

    Dimensions

    2 -1/2" Square

    1-1/2" Square

    1- 1/8" x 1-1/4"

    Nominal Thickness

    .015

    .015

    .015

    Stnd Material

    Galv

    Galv

    Galv

    Stnd Pkg.

    1000

    1000

    1000

    Approx. Wgt/1000

    30

    10

    6.3

    Other Materials

    S.S.
    Alum

    S.S.
    Alum

    S.S.
    Alum

    • Specify diameter of pin where washer will be installed when ordering.
    • Special holes sizes are available upon request.

    Application of self locking washer



    Speedfix Slef Locking Washer for fixing insulation pins, insulation anchors, insulation hangers, insulation fasteners

    and self adhesive pins, lacing anchors and other pins.



    Production Fastening Systems Self-Locking Washers are used in conjunction with Production Fastening Systems

    weld pins, insulation anchors and lacing anchors to fasten insulation in place. Simply press the self-locking washer

    onto the pin up against the insulation until the desired position is reached and then clip off, or bend over, the remaining

    portion or pin for a permanent attachment.


    Self-adhesive insulation pin is exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool

    and rock-wool in soundproofing works,and for the duct-lining.

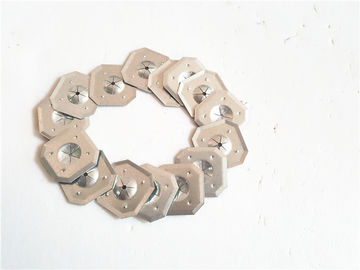

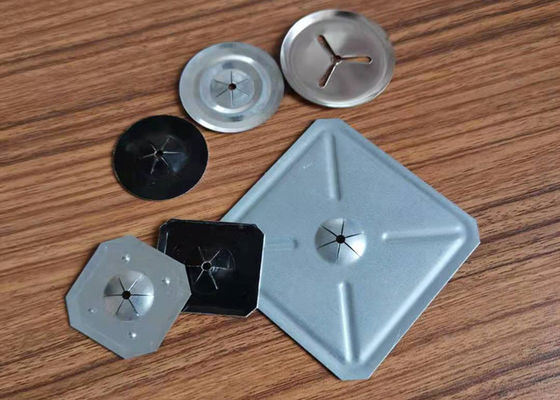

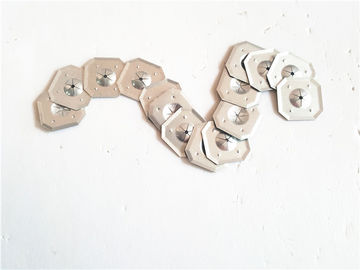

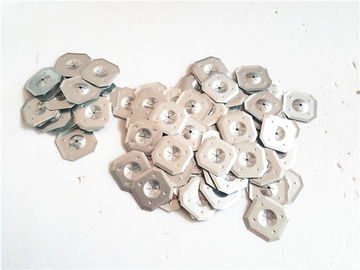

    Images of self locking washers



    Ducting Square Self Locking Washer For Insulation Nails Or Insulation Anchor
