Metal Insulation Fasteners , Stainless Steel Lacing Anchors 2.5" long x 14 Gauge

Metal Insulation Fasteners , Stainless Steel Lacing Anchors 2.5" long x 14 Gauge

    • Metal Insulation Fasteners , Stainless Steel Lacing Anchors 2.5" long x 14 Gauge
    • Metal Insulation Fasteners , Stainless Steel Lacing Anchors 2.5" long x 14 Gauge
    • Metal Insulation Fasteners , Stainless Steel Lacing Anchors 2.5" long x 14 Gauge
  • Metal Insulation Fasteners , Stainless Steel Lacing Anchors 2.5" long x 14 Gauge

    Product Details:

    Place of Origin: China
    Brand Name: Huihao
    Certification: ISO
    Model Number: lacing anchor

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: paper carton + wood pallet
    Delivery Time: 15 days after the payment
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 500000 pcs per 15 days
    Contact Now
    Detailed Product Description
    Material: Stainless Steel, Galvanized Steel Head: 7/8" As Standard
    Spindle Dia: 12ga Or 14ga As Standard Length: 2-1/2" Or 4-1/2" As Standard
    Head Thickness: 1mm Application: Secure Lacing-anchor With Self Locking Washer.

    Metal Insulation Fasteners , Stainless Steel Lacing Anchors

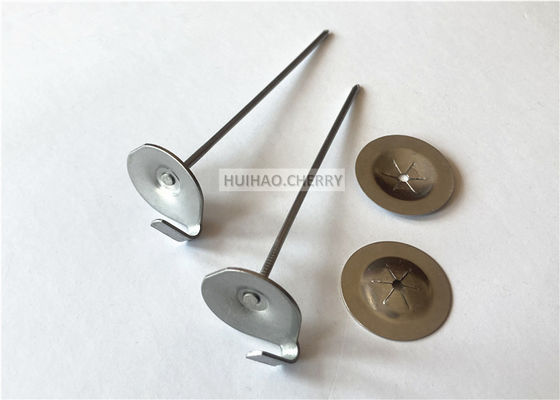

    The Lacing anchor, an insulation fastener, is a fabricated metal anchor consisting of a pin and tabbed, or hooked, washer. Stainless Steel is a popular material while some Lacing Anchors are made in Mild Steel. Stamped "no ab" to denote 'no asbestos', the tabbed head is 7/8" in diameter. The nail can be 12 gauge or 14 gauge in pin diameter. Typical application is for the fabrication of lacing blankets or removable covers with the anchor assisting in fabricating the blanket plus providing a "seam edge" for lacing two sides of the finished insulation blanket together.



    >>>Specification Of The Metal Insulation Fasteners



    Materials: stainless steel or galvanized steel
    Pin Diameter: Standard size is 12GA (2.7mm), 14GA(2.0mm), Other sizes are available by special order.
    Pin Length: 2-1/2" and 4-1/2" are standard. Other lengths available by special order.
    Washers: Self-locking washers are available in a variety of sizes, shapes, and materials.
    Domed Caps can also be used to cover the tip of the nail.



    D C L
    14 ga (.080) 7/8" 2-1/2"
    14 ga (.080) 7/8" 4-1/2"
    12 ga (.106) 7/8" 2-1/2"
    12 ga (.106) 7/8" 4-1/2"
    • Wide choice of fasteners for removable insulation blanket
    • Provide strong, durable fixings even in elevated temperature applications
    • Available in galvanized steel and stainless steel
    • Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
    • Pins length : 63 mm (2 1/2") and 114 mm (4 1/2")

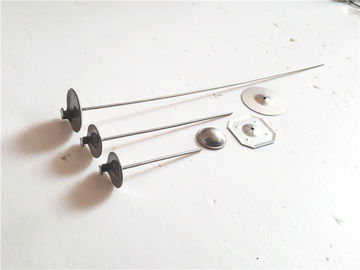

    >>>Detailed Image Of The Stainless Steel Metal Lacing Anchors



    1) US standard
    The head diameter is 1 inch,

    the pin diameter is 10Ga,

    the length we have 1/2inch, 3/4 inch, 7/8 inch, 1 inch, 1-1/8inch, 1-1/2 inch 2 inch
    Products will be packed by bucket or packed per customer’s requirement etc
    We usually pack the US standard weld pins by bucket we will pack different quantity for different size
    Pallet size: 1100*1100mm
    36 bucket on a pallet

    Metal Insulation Fasteners , Stainless Steel Lacing Anchors 2.5" long x 14 Gauge



    2) EU standard
    The head diameter is 30mm,

    the pin diameter is 2.7mm,

    there are many different length for EU market,

    the length we manufactured-22mm, 27mm, 28mm, 32mm 42mm, 48mm 58mm 60mm 100mm
    Some customer will need kraft paper under head,

    some customer will need a plastic sleeve on pin,

    some customer will need both of them,

    we can manufacture per customer’s requirement

    Metal Insulation Fasteners , Stainless Steel Lacing Anchors 2.5" long x 14 Gauge



    3) Australia standard
    People in Australia will need the US standard or EU standard weld pins, someone will need the 14Ga pin.

    The mostly of length in Australia is 25mm, 50mm, 75mm, 100mm.
    Lacing anchors marked NO AB to notify the blanket is asbestos free
    Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
    Pins length : 63 mm (2 1/2") and 114 mm (4 1/2")

    Metal Insulation Fasteners , Stainless Steel Lacing Anchors 2.5" long x 14 Gauge





    >>>Application Of The Metal Insulation Fastener Anchors



    Metal Insulation Fasteners , Stainless Steel Lacing Anchors 2.5" long x 14 Gauge

    >>>Package Of The Lacing Anchors



    1. length less than 65mm, 1000pcs per carton, 64 cartons per pallets.

    2. length 70mm-120mm, 500pcs per cartons,64 cartons per pallets.

    3. length 125mm-250mm, 250 pcs per cartons, 64 cartons per pallets.

    4. or as your requirement



    >>> Related Products



    Self-locking washers and dome caps can be used to cover the top of the metal lacing anchors.



    Round Self Locking Washers



    Material: stainless steel or galvanized steel or aluminum

    Size: 1" or 1-3/16" or 1-1/2" or 2"

    Thickness: 28ga (0.4mm)

    Self-locking washers are designed to be used with weld pins, insulation-hangers, lacing anchors, etc.



    Diameter: 1" 1-3/16″ 1-1/2”
    Thickness: 0.015" 0.015" 0.015"
    Plating: Galvanized Galvanized Galvanized
    Material: Mild Steel /SS 304 Mild Steel /SS 304 Mild Steel /SS 304
    Edge: Beveled or Flat Beveled or Flat Beveled or Fla

    Square Self-Locking Washers



    Material: stainless steel or galvanized steel or aluminum

    Thickness: 28ga (0.4mm)

    Self-locking washers are designed to be used with weld pins, insulation-hangers, lacing anchors, etc.



    Pin Diameter 2-1/2" 1-1/2" 1-1/4" 1-1/2"
    14 Ga (2mm) square square square round
    12 Ga square square square round
    10 Ga square square square round
    3mm square square square round



    Dome Cap Washers



    Dome washers are designed to be used where appearance and safety are factors when installing insulation, or fabricating blankets or pads. The washers are used to cover the nail point on weld pins, hangers, lacing anchors

    & quilt pins.



    Material galvanized, aluminum and stainless steel
    Finish: brushed aluminum, white plastic coating, black plastic coating etc
    A: 20mm,22mm,25mm,30mm,38mm
    B: 10 Ga Or 12 Ga Or 14 Ga
    C:

    9/32" (7.2mm)
