M6-M24 Arc Welding Type Stainless Steel Weld Stud With Full Imperial Threads

M6-M24 Arc Welding Type Stainless Steel Weld Stud With Full Imperial Threads

    • M6-M24 Arc Welding Type Stainless Steel Weld Stud With Full Imperial Threads
    • M6-M24 Arc Welding Type Stainless Steel Weld Stud With Full Imperial Threads
    • M6-M24 Arc Welding Type Stainless Steel Weld Stud With Full Imperial Threads
    • M6-M24 Arc Welding Type Stainless Steel Weld Stud With Full Imperial Threads
  • M6-M24 Arc Welding Type Stainless Steel Weld Stud With Full Imperial Threads

    Product Details:

    Place of Origin: China
    Brand Name: Huihao
    Certification: ISO
    Model Number: Stud Welder Pins

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: Stud Welder Pins Packing details:50pcs per cases,6 small cases in a box 48 boxes on a pallet
    Delivery Time: 7 work days
    Payment Terms: L/C, T/T, Western Union,paypal
    Supply Ability: 100000pcs per 20 days
    Contact Now
    Detailed Product Description
    Product Name: Stud Welder Pins Size: M6 - M24
    Material: Stainless Steel, Mild Steel Aluminum Surface: Copper Plated , Galvanized
    Length: As Request



    M6-M24 Arc Welding Type Stainless Steel Weld Stud With Full Imperial Threads



    material: stainless steel 304/316/201. carbon steel

    standard:ISO13918-RD,ISO14555, Thread standard, anti-corrosion standard, material standard, quality management standard and enterprise standard

    surface treatment:nickel plating, natural

    Usage:Steel structures, bridge, highway, railway, tower structures, power station, airport constructions, etc



    Specification of Arc Welding Type Stainless Steel Weld Stud



    Drawing of ARC Weld Stud


    M6-M24 Arc Welding Type Stainless Steel Weld Stud With Full Imperial Threads
    d1 m6 m8 m10 m12 m16 m20 m24
    d2 4.7 6.2 7.9 9.5 13.2 16.5 20
    d3 7 9 11.5 13.5 18 23 28
    h1 2.5 2.5 3.0 4 5 6 7






    * Approximate values, Contact us if you have a special requirement.

    arc weld stud advantages

    Will not produce large areas of high temperatures.
    Welding points can achieve metallurgical bonding
    The welding shape can adapt to the damage surface so as to achieve less damage to the reference surface during construction, and the machining allowance after replenishment is small.



     Arc Welding Type Stainless Steel Weld Stud Material



      Low Carbon Steel Stainless Steel
    Material: C1008-C1020
    C-0.23% Max; P-0.04% Max
    Mn-0.90% Max; S-0.05% Max
    18-8
    302Hq/304/304L Standard
    Mechanical
    Properties:
    Min. Tensile Type A 61,000 Psi (420 Mpa)
    Min. Yield Type A 49,000 Psi (340 Mpa)
    Other Grades Available Upon Request
    Plating: Copper Plating Is Standard Plating Does Not Apply To Stainless Steel
    Annealing:   Studs Are Annealed Where Required



    1. Certification: ISO, ROHS, SGS
    2. Available Standard: DIN, ANSI, ASTM, JIS, BSW
    3. Strength: Grade 4.8,Grade 8.8,Grade10.9,Grade12.9 A2-70, A4-70, A4-80
    4. Finishing: Yellow, blue, white zinc plated, Galvanized,HDG,Chromate,Dacromet
    5. Available material: Carbon steel, stainelss steel SS304, A2 ,Stainless steel SS314,A4.
    6. Size: M2-M100, Length: 5-300mm, Moq: 500pcs, Port: Shenzhen, Shanghai
    7. Available Packing: Plastic bags+Chipboard Cartons+Plywood pallet with Belt &Film.

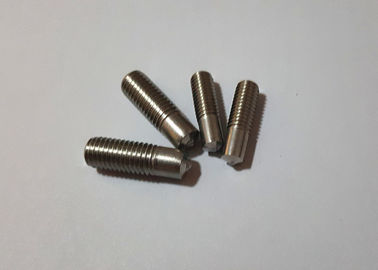

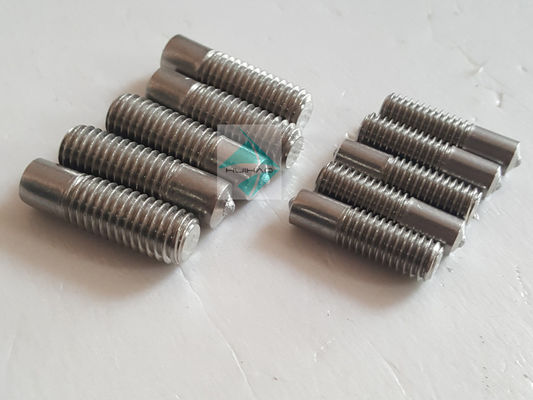

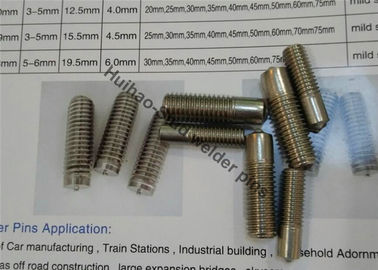

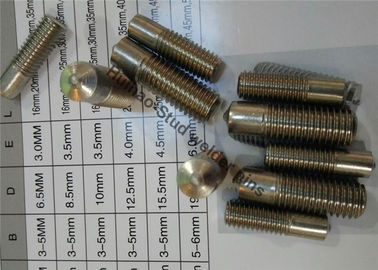

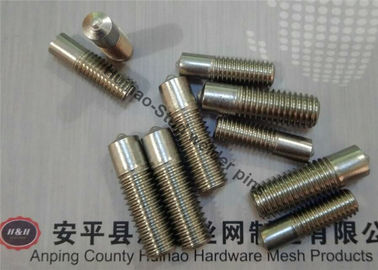

    images of Arc Welding Type Stainless Steel Weld Stud



    M6-M24 Arc Welding Type Stainless Steel Weld Stud With Full Imperial Threads

    why choose Huihao company?



    1.can you accept small order?

    yes, we accept small orders for common size in stock. if out of stock, min order quantity is 10000pcs.



    2.can you have free smaple?

    yes, free samples for common size . if customzied size, need pay for the mould cost.



    3. what machine type for welding?

    ARC welding machines.



    4.how to control the quanlity?

    ISO9001-2008, SGS test report, offical material certificate.



    5, can you supply certificate of origin?

    yes, CO,CCPIT, FORM A, FORM E, FORM M, FORE R, FORM L, FAT and so on.



    6. how to timely delivery?

    common size in stock. we make mould by ourself; cnc machines; door to door service
