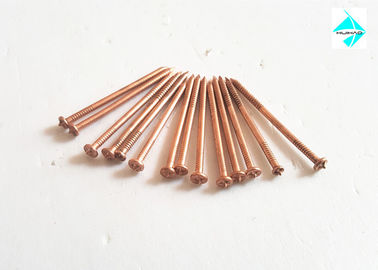

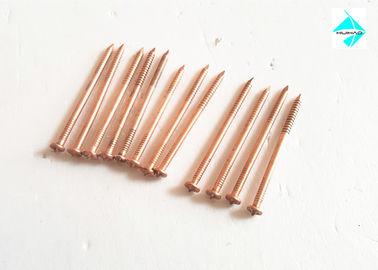

Copper Plated Capacitor Discharge Weld Pins, 3mm Dia 80mm Stud Welding Nails

Copper Plated Capacitor Discharge Weld Pins, 3mm Dia 80mm Stud Welding Nails

    • Copper Plated Capacitor Discharge Weld Pins, 3mm Dia 80mm Stud Welding Nails
    • Copper Plated Capacitor Discharge Weld Pins, 3mm Dia 80mm Stud Welding Nails
    • Copper Plated Capacitor Discharge Weld Pins, 3mm Dia 80mm Stud Welding Nails
    • Copper Plated Capacitor Discharge Weld Pins, 3mm Dia 80mm Stud Welding Nails
  • Copper Plated Capacitor Discharge Weld Pins, 3mm Dia 80mm Stud Welding Nails

    Product Details:

    Place of Origin: China
    Brand Name: HUIHAO
    Certification: ISO
    Model Number: Capacitor Discharge Weld Pins

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Packaging Details: Capacitor Discharge Weld Pins1.500pcs per bags, 10 bags per carton. if the length too long, we will be according your requirements to pack.
    Delivery Time: 5-8 work days
    Payment Terms: L/C, T/T, Western Union , paypal
    Supply Ability: 500000pcs per 20 days
    Contact Now
    Detailed Product Description
    Product Name: Capacitor Discharge Weld Pins Pin Thickness: 2mm-3mm
    Material: Mild Steel Type: Soft Steel Nails
    Length: 25mm-240mm Washer Type: Dome Caps
    High Light:

    copper plated insulation pins

    ,

    threaded stud welder



                 Copper Plated Capacitor Discharge Weld Pins, 3mm Dia 80mmStud Welding Nails



    1. welding nails detials



    Materal: mild steel,302HQ stainless steel and aluminum

    Plating:mild steel pins are copper plated

    washers:various types of steel, stainless steel and aluminum self locking washers

    standard nail point is used for most applications, nut also available



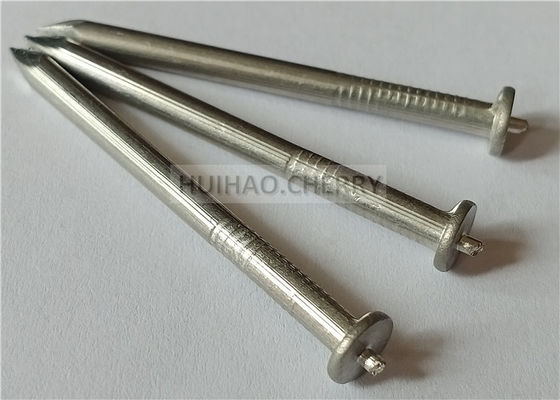

    The Capacitor Discharge Weld Pins is a Low Carbon Steel, Stainless Steel or Aluminum weld pin that is ideal to apply

    with pin welding or stud welding equipment. Manufactured with a standard capacitor discharge weld tip and flange, the

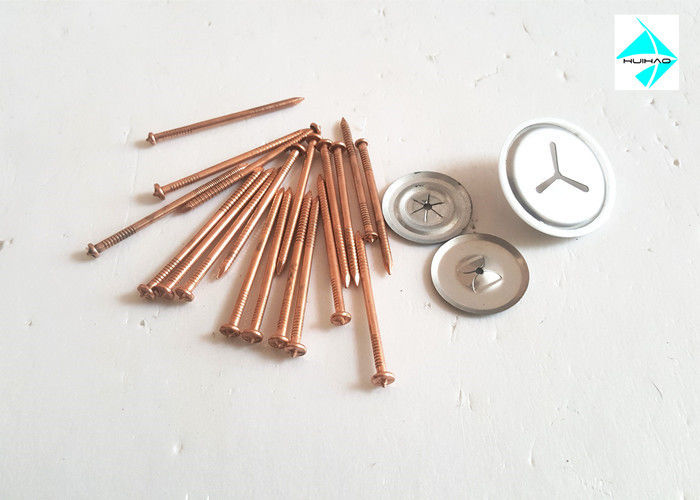

    Capacitor Discharge Weld Pins is popularly used as an insulation fastener, in combination with self locking washers

    (or “speed clips”) to secure insulating material.



    2. welding nails specification



    We recommend Capacitor Discharge Pins for welding to clean surfaces. For difficult surfaces the “Power Base” Weld Pin

    is designed to weld through paint and rust to eliminate grinding of the base metal. Both are available in various diameters

    and lengths



    WELD PIN

    Copper Plated Capacitor Discharge Weld Pins, 3mm Dia 80mm Stud Welding Nails 0

    SIZE

    D

    STEEL FD

    ALUM. FD

    14 GA

    .080

    .160

    ---

    12 GA

    .105

    .180

    .230

    10 GA

    .135

    .195

    .250

    9 GA

    .148

    .230

    ---



     material technical data



    MATERIAL

    LOW CARBON STEEL

    STAINLESS STEEL

    ALUMINUM

    C - 0.23% max

    P - 0.04% max.

    AISI grade - 302/304/305 std.
    Other grades available upon request.

    Alloy - 1100-H14 standard. Other alloys available upon request.

    Mn - 0.90% max.

    S - 0.05% max

    MECHANICAL PROPERTIES

    Tensile - 60,000 psi (min)

    Values for various grades available upon request.

    Values for various alloys available upon request.

    Yield - 50,000 psi (min.)

    Elongation - 20% (in two inches)

    PLATING

    Copper coating is standard on pins. Copper and other platings available upon customer request.

    Does not apply to stainless.



    ANNEALING

    Pins are annealed where required

    Does not apply





    Capacitor Discharge Weld Pins Other specifications:

    • Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.

    • Nail point is standard - available with "blunt end" as special order.

    Capacitor Discharge Weld Pins simplify the permanent attachment of insulation to just about any kind of construction metal surface.

    They can be applied quickly and easily using standard CD or Arc stud welding equipment.


    Weld Pins are available in different styles to cover a wide variety of applications. Some factors to consider regarding the pin style

    needed for your job would be the base metal type size and surface condition, and also the welding equipment to be used.


    Copper Plated Capacitor Discharge Weld Pins, 3mm Dia 80mm Stud Welding Nails 1
    Copper Plated Capacitor Discharge Weld Pins, 3mm Dia 80mm Stud Welding Nails 2



    Copper Plated Capacitor Discharge Weld Pins, 3mm Dia 80mm Stud Welding Nails 3



    3. The standard, portable CD system consists of:

    • The Controller or (Power Unit) which is plugged into the one-hundred-and-ten-volt outlet.

    • The CD Gun with Cables is used to command the power unit and deliver weld current, with the Gun also serving as the Pin holder to properly place the pin during welding.

    • Then, on the other side of “the circuit” a ground cable and clamping connection is attached to the work-surface to complete our Capacitor Discharge connections.

    • And finally, special Accessories are used to hold the Pin in the Gun.
